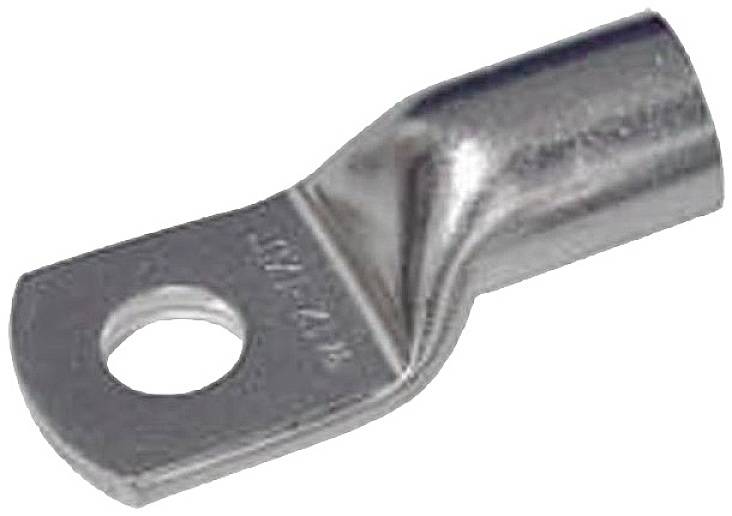

Image similar
Intercable 180488 ICR105 Crimp cable lug for sectioned multicore cables 180 ° M5 10.00 mm² Hole Ø: 5 mm 1 pc(s) Single
Packaging type
Single
Product type
Crimp cable lug
max. cross section
10.00 mm²
Thread size
M5
Hole Ø
5 mm
EAN:
Part number:
Item no:
Highlights & Details
Intercable ICR105 tubular cable lug 10qmm M5 tin-plated R-series
- Hole Ø: 5 mm
- Cross section (max.): 10.00 mm²
Technical specifications
- Packaging type
Single
- Product type
Crimp cable lug
- max. cross section
10.00 mm²
- Thread size
M5
- Hole Ø
5 mm
- Connection angle
180°
- Contact material
Copper silver plated
- Content
1 pc(s)
- AWG max.
8
- Manufacturer part #
180488
- Insulation type
Not insulated
- Min. cross section
0.75 mm²
- Features
for sectioned multicore cables
- Type
ICR105
- Weight
0.01
FALSE
Tinned
10 mm²
Several
Copper
5
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3331928 Intercable 180488 ICR105 Crimp cable lug for sectioned multicore cables 180 ° M5 10.00 mm² Hole Ø: 5 mm 1 pc(s) Single
Description
For multi-wire, fine wire, compacted multi-strand and fine-strand round conductors or sector conductors as well as for solid conductors from 0.75-16qmm
