Intratec MKDGH24-01 MKDGH24-01 Switchboard cabinet Surface-mount No. of rows = 2

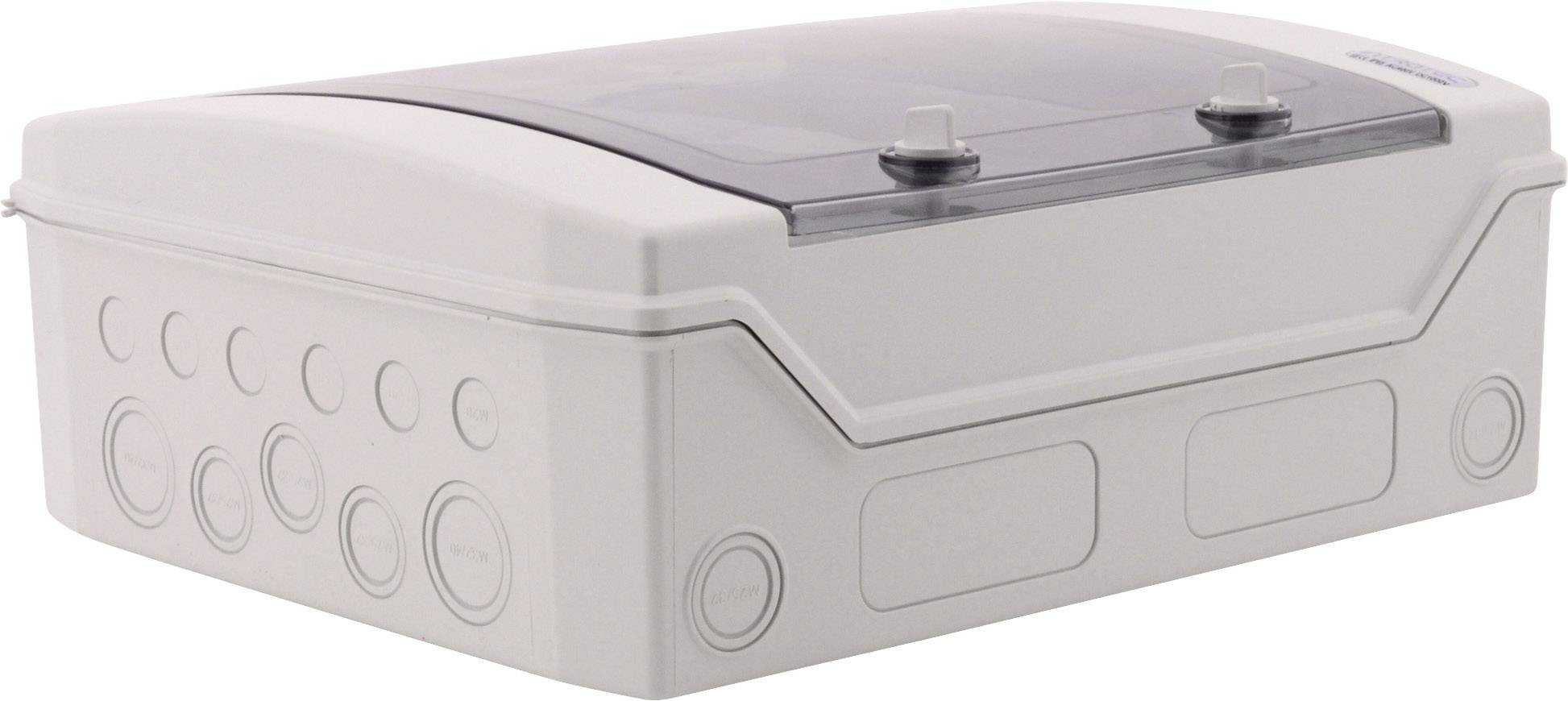

This moisture-proof surface-mounted fuse box 2-row of protection class IP65 is a lockable distributor housing for fuses and switching elements that are to be installed in damp rooms such as basements, garages or gardens. It is a high-quality IP65 surface-mounted distributor made of acrylester-stirene-acrylonitrile (ASA). This junction box is thus weather-resistant than conventional ABS housings. The high impact resistance and protection class of the distribution box ensure that your fuses are protected against all environmental influences. The housing of the wet room distribution box for 24 modules is supplied with an N / PE terminal and has prefabricated cable entries on all sides. Mounting material and installation instructions for quick electrical installation are also included. All materials are UV-stable and halogen-free and tested according to applicable standards.

Moist room distributor for the highest demands

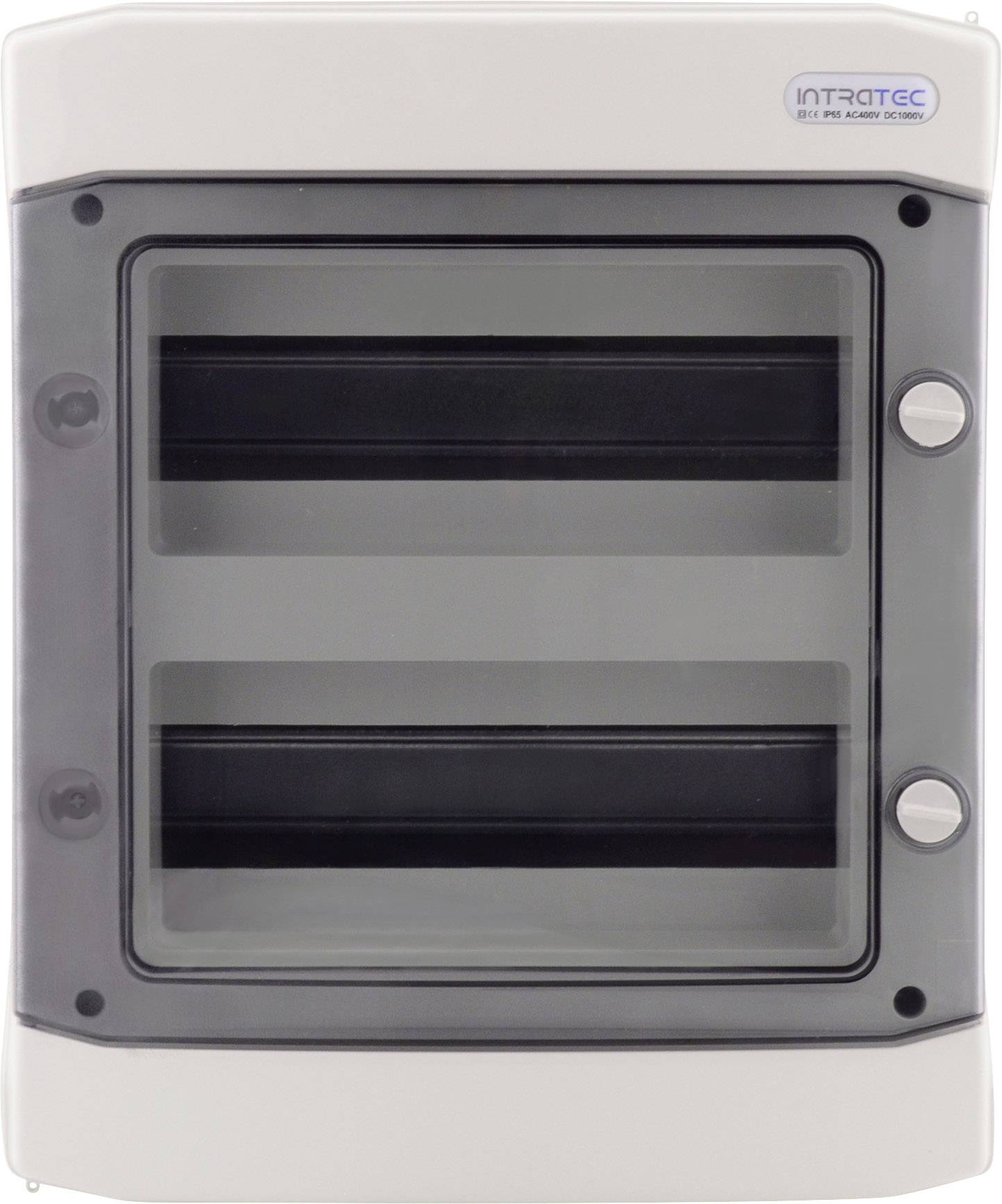

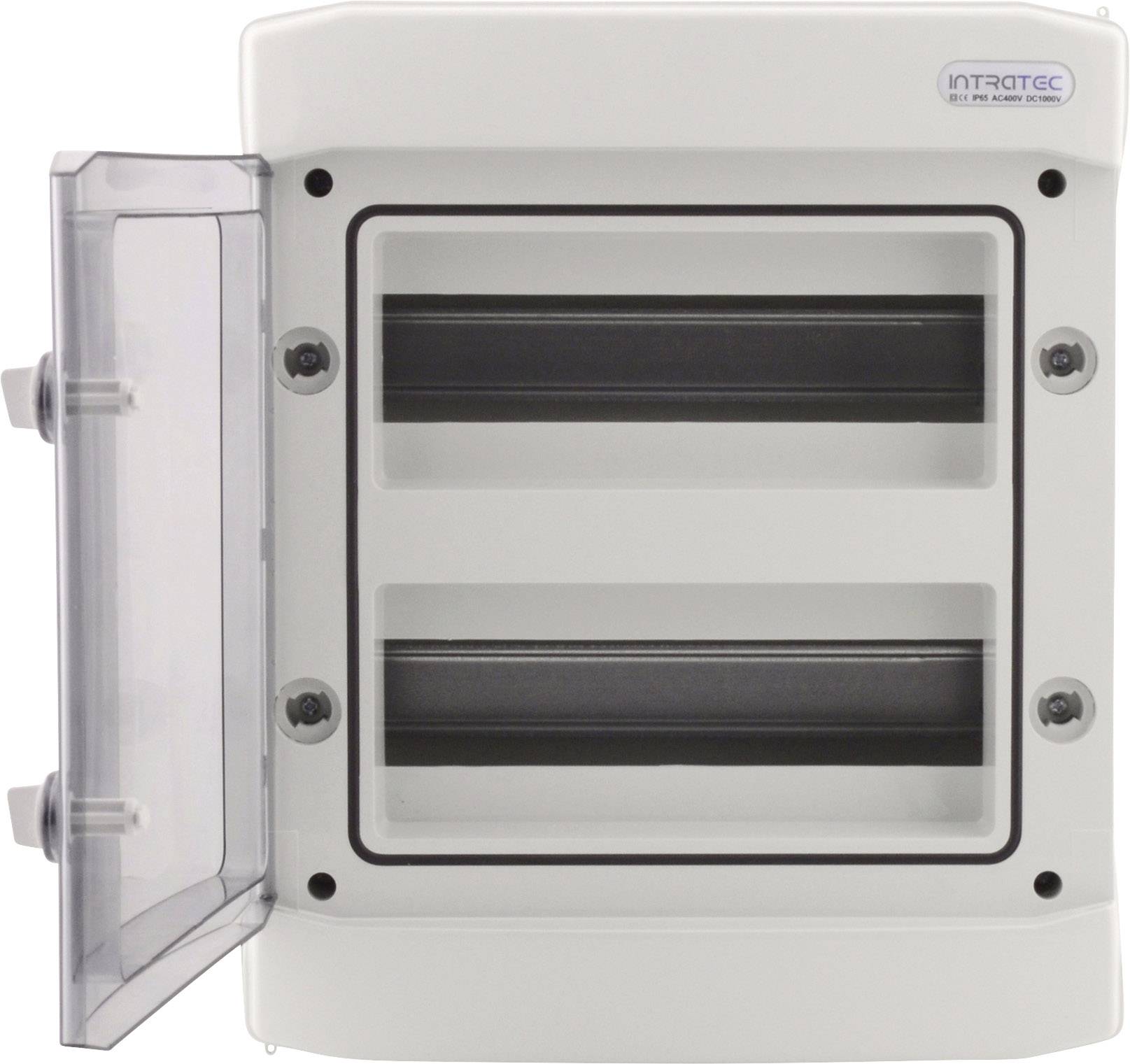

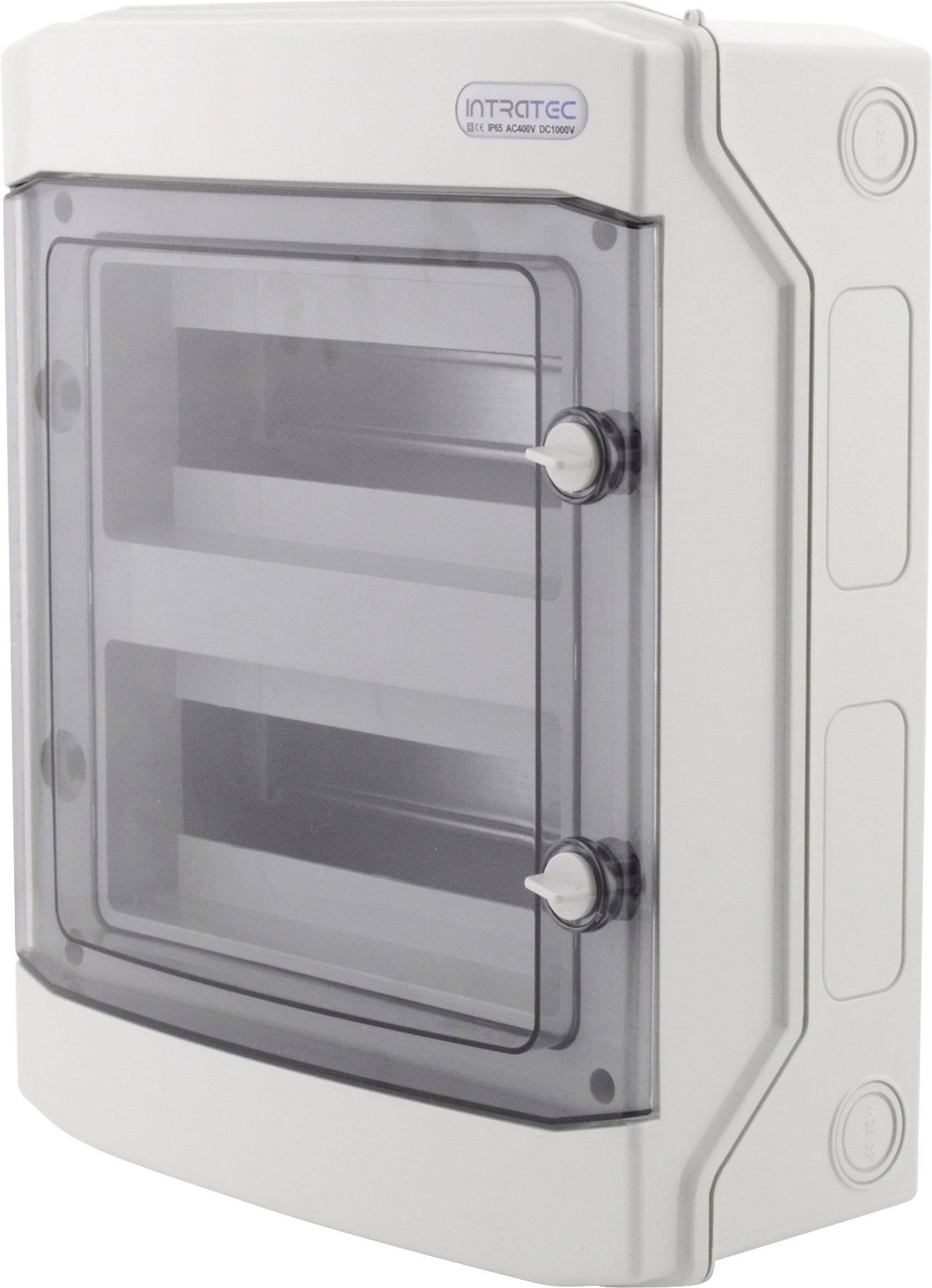

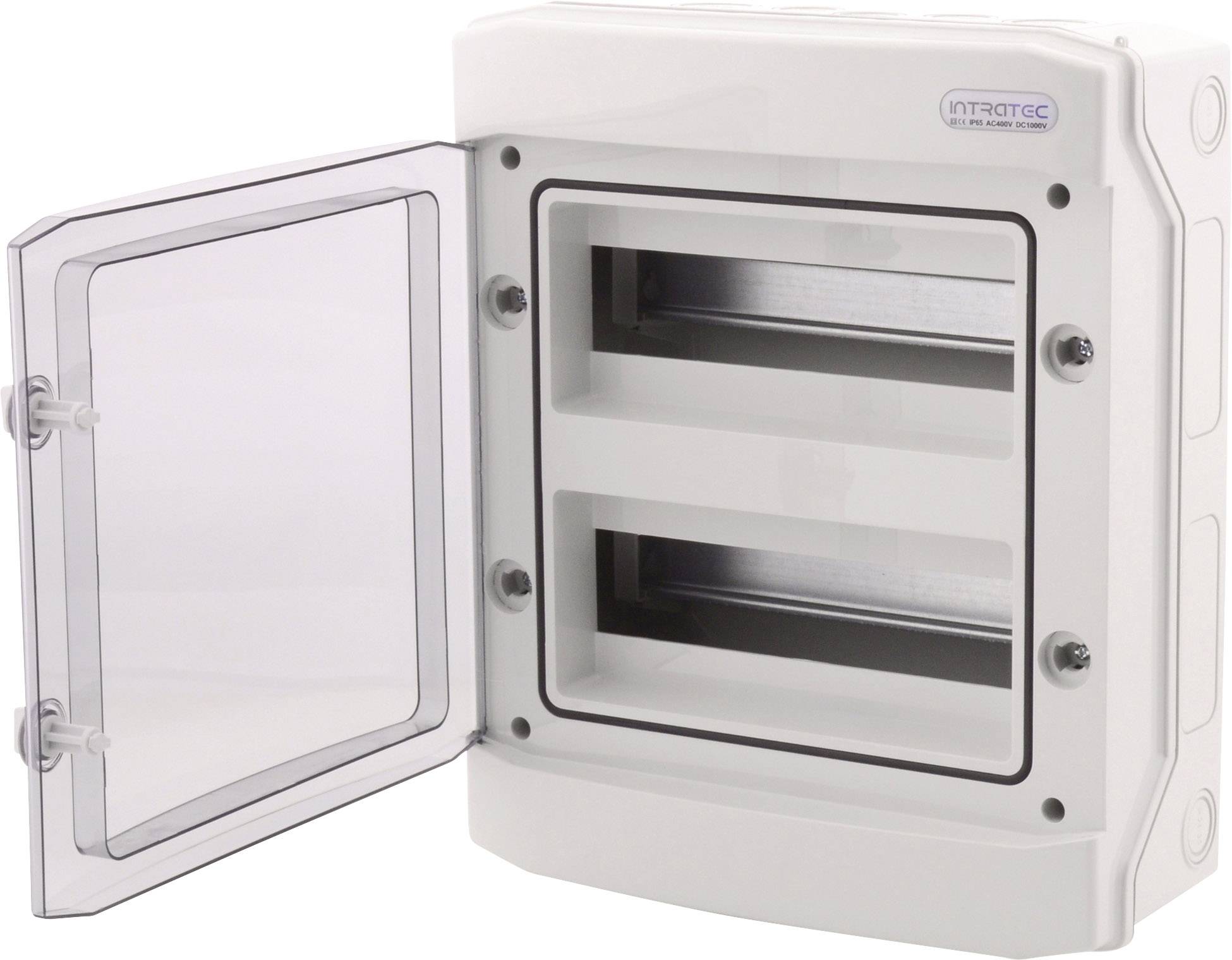

The fuse boxes of the DISBOX-F series possess an IP65 degree of protection and are thus optimally suitable for use in damp rooms. The surface-mounted wet room distributor is made of high-quality acrylester-stirene-acrylonitrile (ASA) and thus weather-resistant than conventional ABS-casing. The high impact resistance and protection class IP65 of the fuse box ensure that all fuses and residual current operated circuit breakers within the distributor are protected against all environmental influences in dry and damp rooms. All fuse boxes in this row are fitted with transparent doors, which was designed to allow visual inspection of the fittings without opening the door.

The scope of supply and accessories

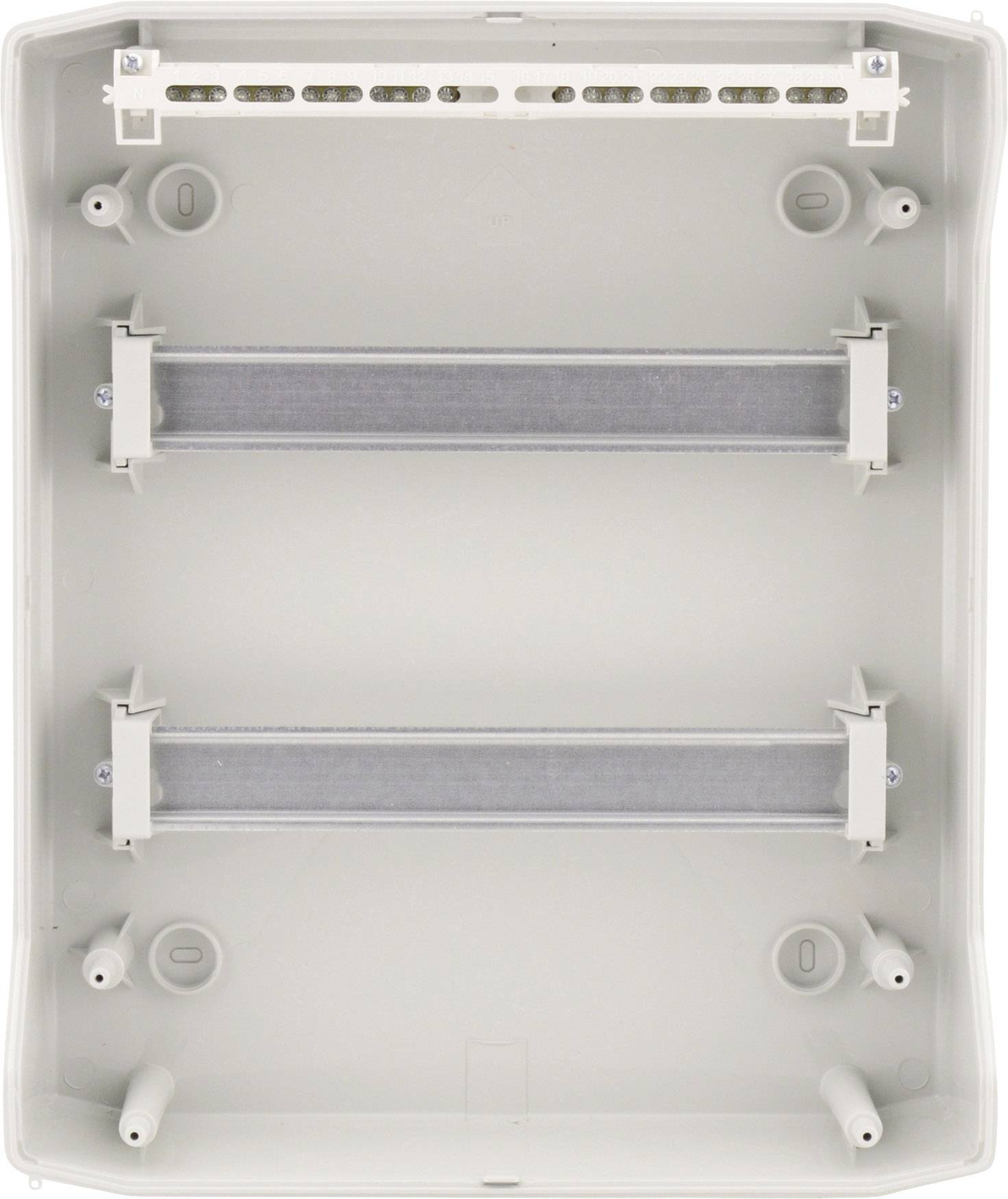

of delivery of the DISBOX-F series include a comprehensive operating manual and the PE&N terminals as well as all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. The normal double-bit door lock can be exchanged for a security lock on request, which protects access by unauthorized persons. All materials are UV-stable and halogen-free and tested according to applicable standards.

This text is machine translated.
