Intratec MKDGH4-01 MKDGH4-01 Switchboard cabinet Surface-mount No. of rows = 1

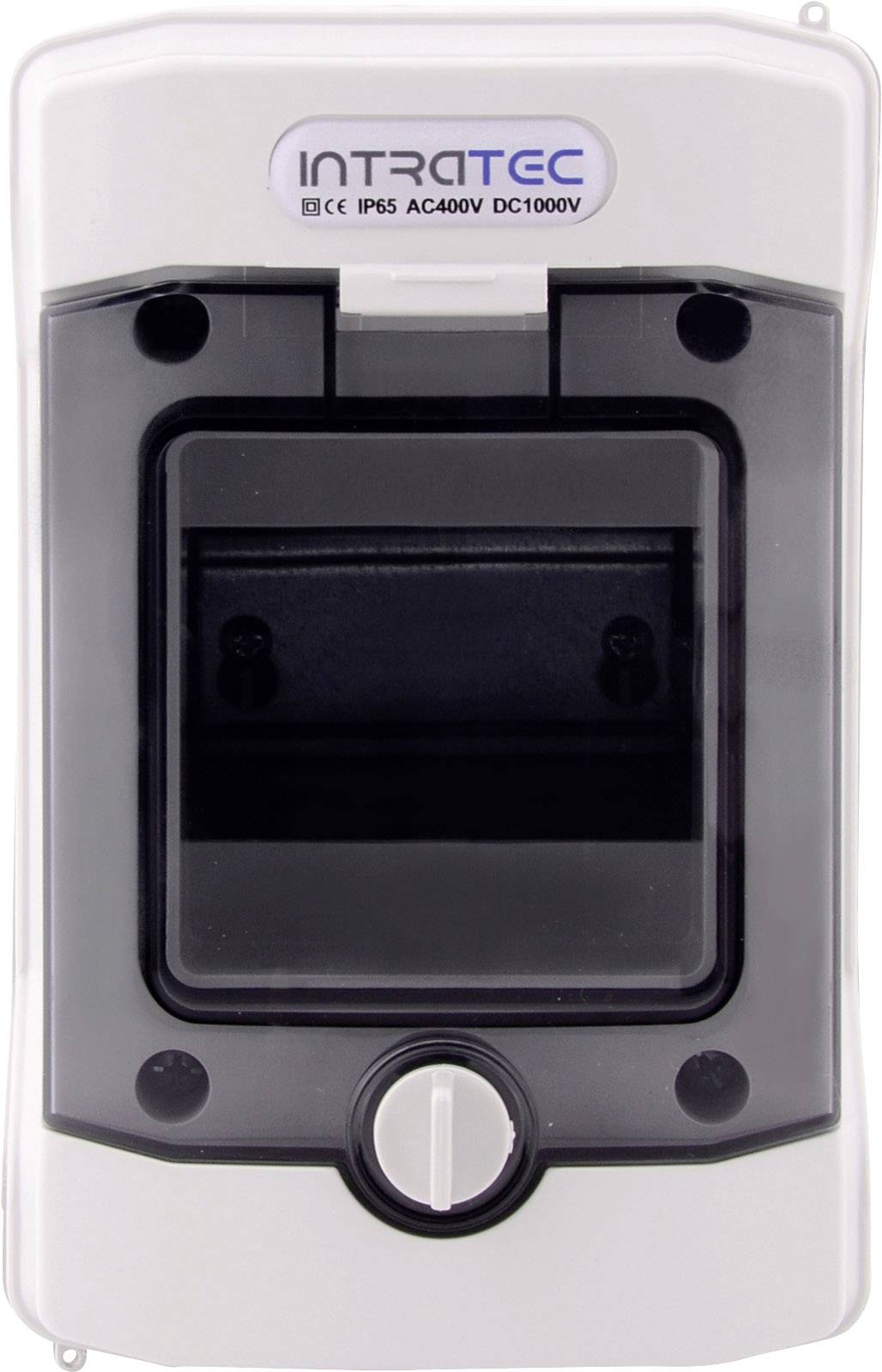

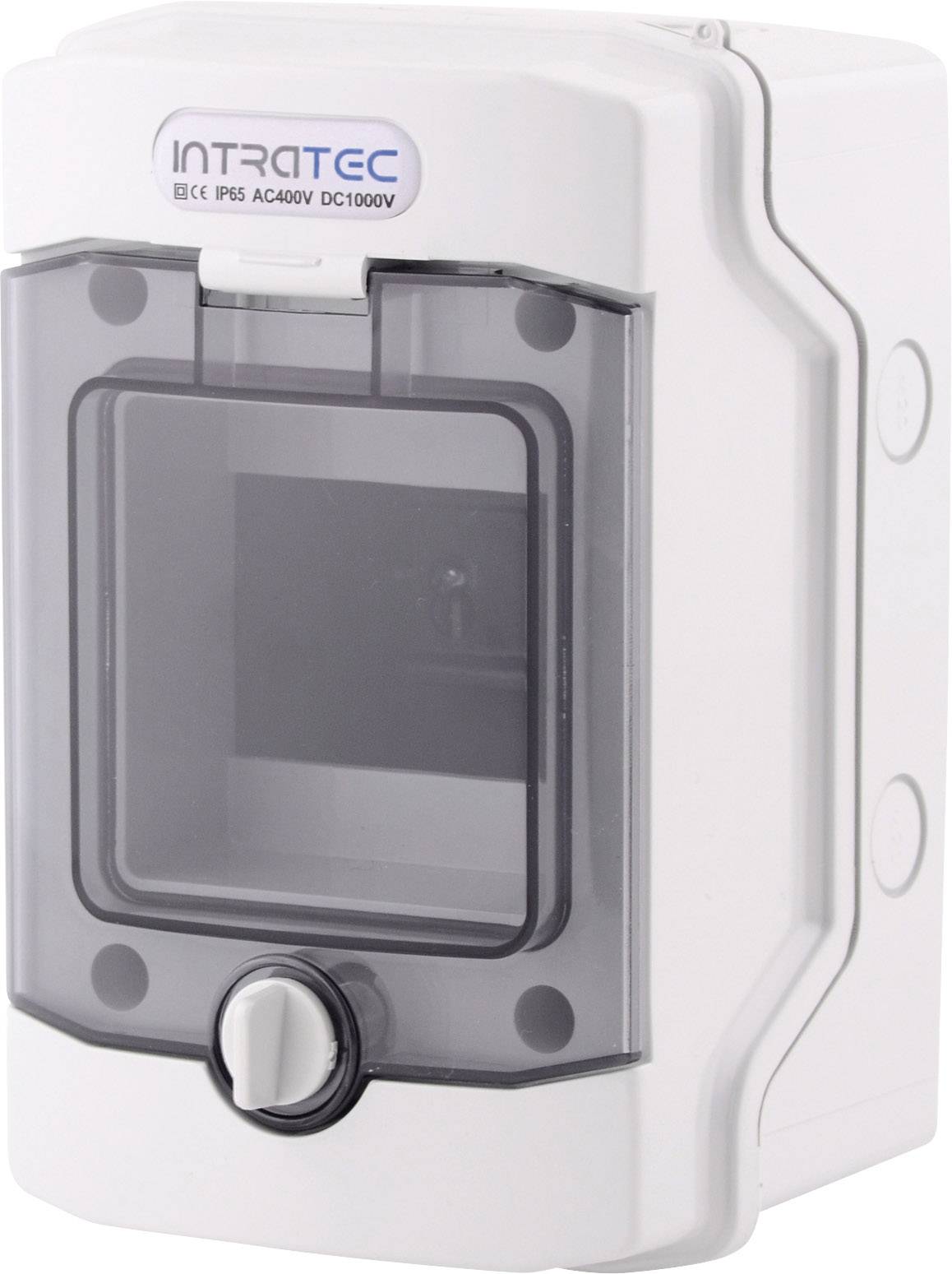

The 1-row distribution box for damp rooms is a lockable housing for surface mounting of fuses and switching elements. In total, the DIN rail / installation series offers space for 4TE (1TE=17.5 millimeters). This corresponds, for example, to 4 x circuit breaker 1-pin or 1 x circuit breaker 4-pin. Pay attention to the TE information in the corresponding product descriptions. The surface-mounted small distributor can be used optimally as AP distributor for the separate protection of circuits in damp rooms such as cellars and garages thanks to the protection class IP65. But even under the open sky, the halogen-free and UV-stable surface-mounted distribution box looks good, e.g. for installation in the garden or other outdoor areas. Our surface-mounted, 1-row wet room distributor are supplied with a transparent door. These are high-quality acrylester-stirene-acrylonitrile (ASA) surface-mounted distributors, which are much more weather-resistant than conventional ABS housings, such as those used for IP40 distribution boxes. The door of the distribution cabinet is made of polycarbonate (PC). The high impact resistance and protection class of IP65 small distributors ensure that your fuses are protected against all environmental influences. The 1-row wet room distributor is supplied with an N / PE terminal and has prefabricated cable entries on all sides. Mounting material for quick mounting is also included. All materials are UV-stable and halogen-free and tested according to applicable standards.

Moist room distributor for the highest demands

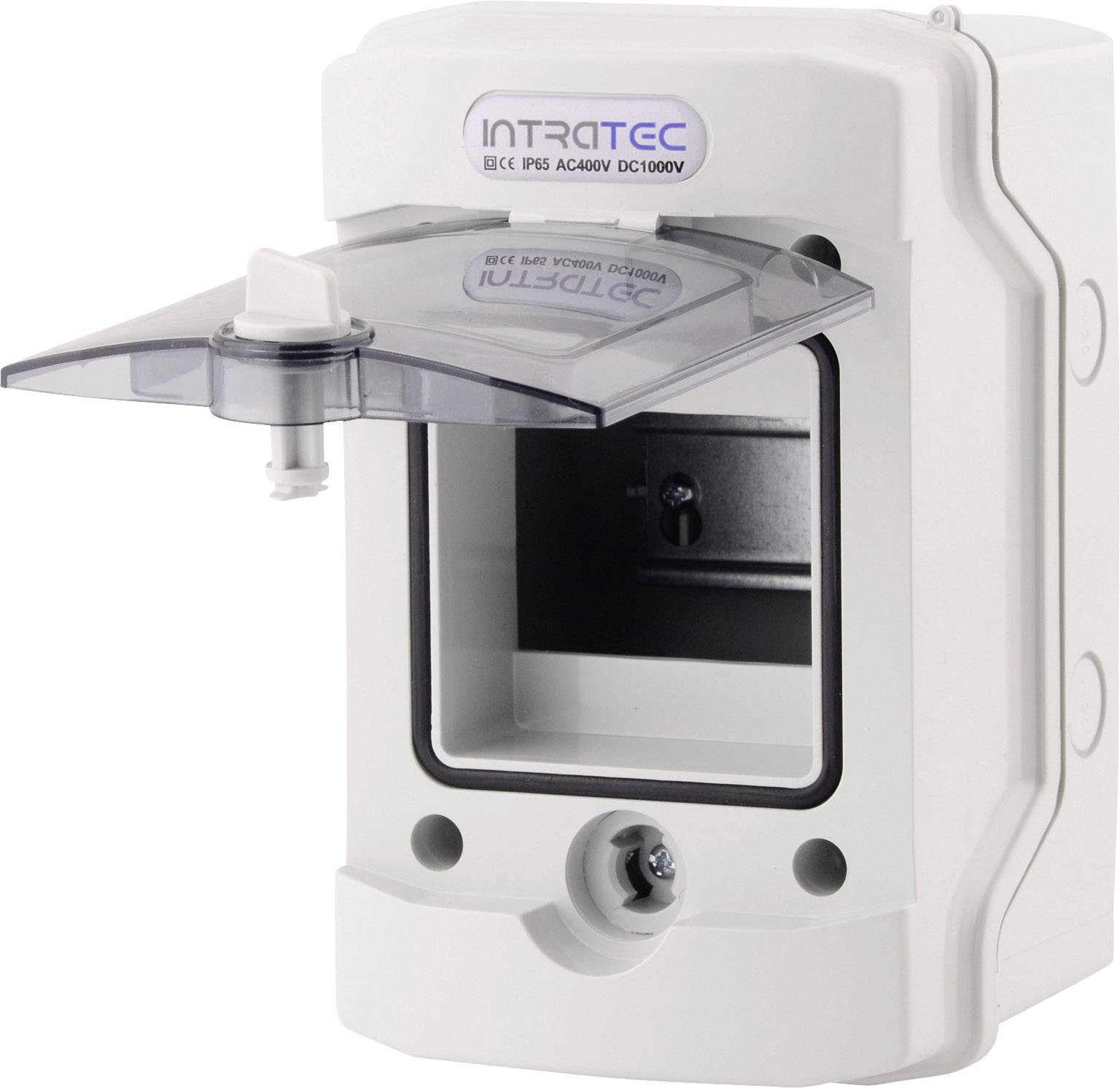

The fuse boxes of the DISBOX-F series possess an IP65 degree of protection and are thus optimally suitable for use in damp rooms. The surface-mounted wet room distributor is made of high-quality acrylester-stirene-acrylonitrile (ASA) and thus weather-resistant than conventional ABS-casing. The high impact resistance and protection class IP65 of the fuse box ensure that all fuses and residual current operated circuit breakers within the distributor are protected against all environmental influences in dry and damp rooms. All fuse boxes in this row are fitted with transparent doors, which was designed to allow visual inspection of the fittings without opening the door.

The scope of supply and accessories

of delivery of the DISBOX-F series include a comprehensive operating manual and the PE&N terminals as well as all the necessary fixing screws, which enable a quick installation. We also install all required mounting rails type TS35 in the lower part of the housing. The number and length of the mounting rails depends on the defined number of module slots per housing. In addition to the insulated screw terminals used as standard, double-row screw terminals or screwless terminal strips can also be supplied. The normal double-bit door lock can be exchanged for a security lock on request, which protects access by unauthorized persons. All materials are UV-stable and halogen-free and tested according to applicable standards.

This text is machine translated.
