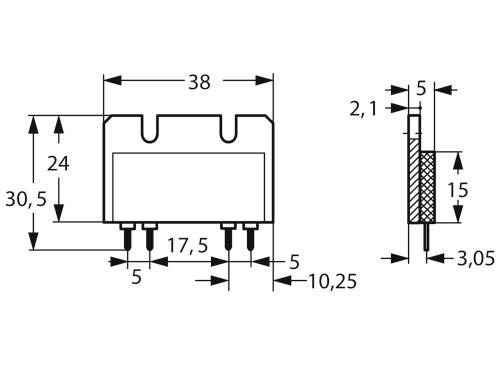

Technical drawing of an electronic component with dimensions: width 38 mm, height 30.5 mm. 2.1 mm thick at the sides. Numbers indicate distances.

1/2

Product type

Metal film resistor

Resistance

50 mΩ

Power rating

10 W

Content

1 pc(s)

Type

THT

Datasheet (PDF)

Isabellenhütte

Fast track dispatch on Wed 21 Oct

1 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 149.99 / piece)

€ 149.99

incl. VAT

Only 1 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Metal film resistor, 50 mΩ, 10 W, ±0.1 %

Our service for you

Technical specifications

Design: Radial
Design: Precision-metal-layer resistance
Width 5 mm
Height: 10 mm
Length 46 mm.
Weight: 0.01171 kg
Output 10 W
max. temperature: 125 °C
Insulation voltage 500 V
min Temperature -55 °C.
Ohm resistance 50 mΩ
Temperature coefficient 30 ppm/K
Tolerance: ± 0.1 %
Mounting THT
Nominal load 10 W

Product type: Metal film resistor

Type: THT

Resistance: 50 mΩ

Power rating: 10 W

Tolerance ±: 0.1 %

Temperature coefficient: 30 ppm/K

Length: 46 mm

Width: 5 mm

Height: 10 mm

Content: 1 pc(s)

Dim: (L x W x H) 46 x 5 x 10 mm

RoHS-compliant: Yes

Type: A-H2-R050-F1-K2-0.1

Documents & Downloads

Datasheet

Datasheet 3207980 Isabellenhütte A-H2-R050-F1-K2-0.1 A-H2-R050-F1-K2-0.1 Metal film resistor 50 mΩ THT 10 W 0.1 % 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3207980 Isabellenhütte A-H2-R050-F1-K2-0.1 A-H2-R050-F1-K2-0.1 Metal film resistor 50 mΩ THT 10 W 0.1 % 1 pc(s)

Description

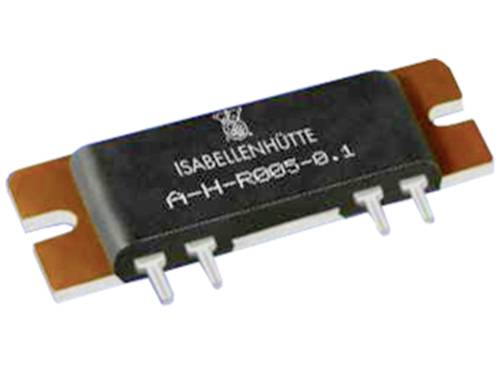

Precision Metal Film Resistors 10 Watt Tolerance 0.1 % Series ISA-PLAN Type Isabellenhütte A-H2..F1-K2. With four-wire connection and heat sink plate with mounting holes. Features * Up to 10 W continuous power * Low self-heating * RoHS compliant applications * Measuring devices * Reference resistances in laboratories * Power sources * Laboratory power supplies

This text is machine translated.

Description

Precision Metal Film Resistors 10 Watt Tolerance 0.1 % Series ISA-PLAN Type Isabellenhütte A-H2..F1-K2. With four-wire connection and heat sink plate with mounting holes. Features * Up to 10 W continuous power * Low self-heating * RoHS compliant applications * Measuring devices * Reference resistances in laboratories * Power sources * Laboratory power supplies

This text is machine translated.
