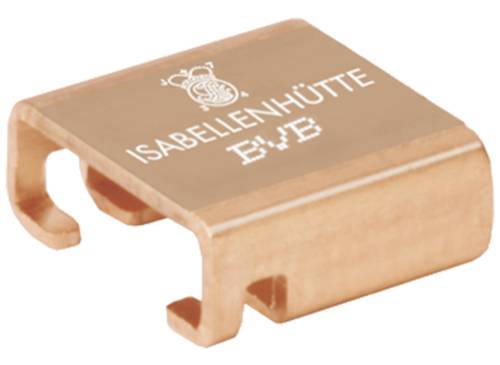

Isabellenhütte BVB-Z-R0005-1 BVB-Z-R0005-1 SMD resistor 0.5 mΩ SMD 2725 9 W 1 % 20 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2725
Resistance
0.5 mΩ
Power rating
9 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 4.79 / piece)
€ 47.90
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal plate, SMD 2725, 500 µΩ, 9 W, ±1 %, BVB-Z-R0005-1
Our service for you
Technical specifications
- Design SMD 2725
- Height: 2.4 mm
- Length: 6.9 mm.
- Weight: 0.00005 kg
- Output: 9 W
- max. temperature: 170 °C
- min Temperature -65 °C.
- Ohm resistance 500 µΩ
- Technology: Metal plate
- Temperature coefficient ±20 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2725
- Resistance
0.5 mΩ
- Power rating
9 W
- Tolerance ±
1 %
- Temperature coefficient
20 ppm/K
- Length
6.9 mm
- Height
2.4 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
BVB-Z-R0005-1
Documents & Downloads
Datasheet
Datasheet 3208050 Isabellenhütte BVB-Z-R0005-1 BVB-Z-R0005-1 SMD resistor 0.5 mΩ SMD 2725 9 W 1 % 20 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208050 Isabellenhütte BVB-Z-R0005-1 BVB-Z-R0005-1 SMD resistor 0.5 mΩ SMD 2725 9 W 1 % 20 ppm/K 1 pc(s)
Description
SMD precision resistors design 2725 5.0 Watt tolerance 1.0 % series ISA-WELD type Isabellenhütte BVB. Can be used as very low ohmic and low-inductive four-wire resistance. The resistor is specifically designed for currents up to 100 A (0.5 m ohm)
