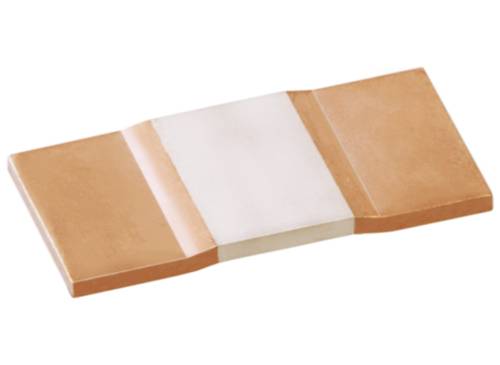

Isabellenhütte BVE-M-R0002-1 BVE-M-R0002-1 SMD resistor 0.2 mΩ SMD 5930 10 W 1 % 100 ppm/K 1 pc(s)
Product type
SMD resistor
Type
5930
Resistance
0.2 mΩ
Power rating
10 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 4.29 / piece)
€ 42.90
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal plate, SMD 5930, 200 µΩ, 10 W, ±1 %, BVE-M-R0002-1
Our service for you
Technical specifications
- Design SMD 5930
- Height: 0.5 mm
- Length 15 mm.
- Weight: 0.00176 kg
- Output 10 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 200 µΩ
- Technology: Metal plate
- Temperature coefficient ±100 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
5930
- Resistance
0.2 mΩ
- Power rating
10 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/K
- Length
15 mm
- Height
0.5 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
BVE-M-R0002-1
Documents & Downloads
Datasheet
Datasheet 3208043 Isabellenhütte BVE-M-R0002-1 BVE-M-R0002-1 SMD resistor 0.2 mΩ SMD 5930 10 W 1 % 100 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208043 Isabellenhütte BVE-M-R0002-1 BVE-M-R0002-1 SMD resistor 0.2 mΩ SMD 5930 10 W 1 % 100 ppm/K 1 pc(s)
Description
SMD precision resistors design 5930 7.0 Watt tolerance 1.0 % series ISA-WELD type Isabellenhütte BVE. Can be used as very low ohmic and low-inductive two-wire resistance. The resistor is specifically designed for currents up to 180 A (0.2 m ohm)
