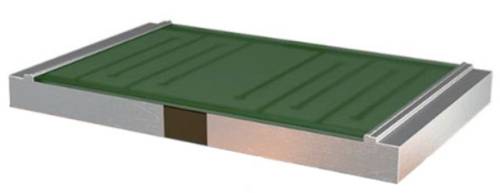

'Electronic component with a rectangular, green surface and silver edges. Used for control or processing in devices.'

'Electronic component with a rectangular, green surface and silver edges. Used for control or processing in devices.'

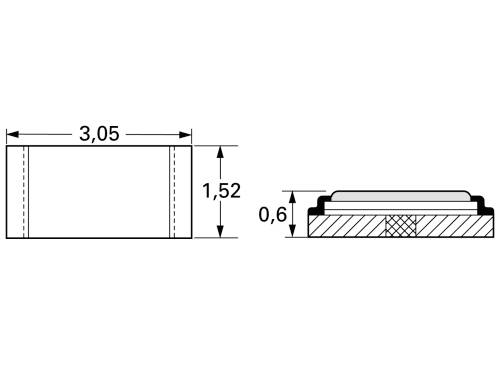

Technical drawing of a rectangular object with dimensions 3.05 x 1.52 x 0.6. Shows front view and cross-sectional view.

1/2

Product type

SMD resistor

Type

1206

Resistance

20 mΩ

Power rating

1 W

Tolerance ±

1 %

Datasheet (PDF)

Isabellenhütte

Fast track dispatch on Fri 16 Oct

8 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 2.99 / piece)

€ 2.99

incl. VAT

Only 8 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Resistance, metal foil, SMD 1206 (3216), 20 mΩ, 1 W, ±1 %, SMK-R020-1.0

Our service for you

Technical specifications

Type SMD 1206 (3216)
Width: 1.6 mm
Height: 0.5 mm
Length: 3.05 mm.
Weight: 0.0005 kg
Output: 1 W
max. temperature: 170 °C
min Temperature -65 °C.
Ohm resistance 20 mΩ
Technology: Metal foil
Temperature coefficient ±50 ppm/K
Tolerance: ± 1 %

Product type: SMD resistor

Type: SMD

Type: 1206

Resistance: 20 mΩ

Power rating: 1 W

Tolerance ±: 1 %

Temperature coefficient: 50 ppm/K

Length: 3.05 mm

Width: 1.6 mm

Height: 0.5 mm

Content: 1 pc(s)

Dim: (L x W x H) 3.05 x 1.6 x 0.5 mm

RoHS-compliant: Yes

Type: SMK-R020-1.0

Documents & Downloads

Datasheet

Datasheet 3208073 Isabellenhütte SMK-R020-1.0 SMK-R020-1.0 SMD resistor 20 mΩ SMD 1206 1 W 1 % 50 ppm/K 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3208073 Isabellenhütte SMK-R020-1.0 SMK-R020-1.0 SMD resistor 20 mΩ SMD 1206 1 W 1 % 50 ppm/K 1 pc(s)

Description

SMD precision resistors design 1206 1.0 watt series ISA-PLAN type Isabellenhütte SMK. Can be used as current measuring resistance, in power supply units, power modules, frequency converters and control devices With 1.0% tolerance.

This text is machine translated.

Description

SMD precision resistors design 1206 1.0 watt series ISA-PLAN type Isabellenhütte SMK. Can be used as current measuring resistance, in power supply units, power modules, frequency converters and control devices With 1.0% tolerance.

This text is machine translated.
