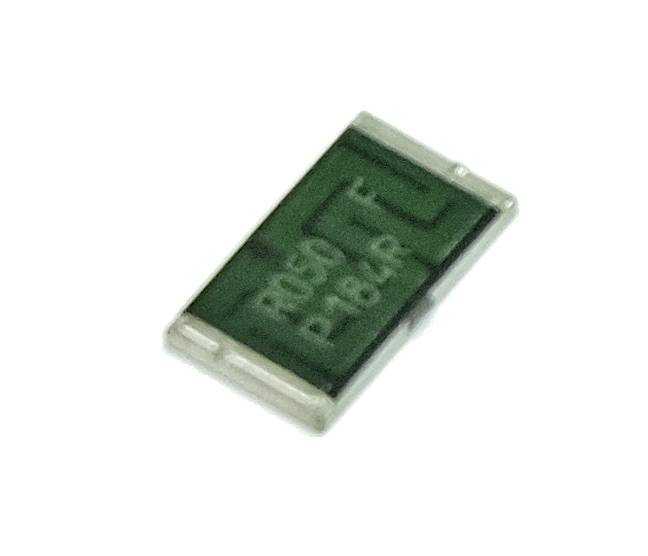

Image similar
Isabellenhütte SMT-R005-1.0 SMT-R005-1.0 SMD resistor 5 mΩ SMD 2817 7 W 1 % 50 ppm/K 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMD resistor
Type
2817
Resistance
5 mΩ
Power rating
7 W
Tolerance ±
1 %
Datasheet (PDF)
Number
Total (€ 5.49 / piece)
€ 5.49
incl. VAT
Only 2 Piece(s) available
Highlights & Details
Resistance, metal foil, SMD 2817, 5 mΩ, 7 W, ±1 %, SMT-R005-1.0
Our service for you
Technical specifications
- Design SMD 2817
- Height: 0.8 mm
- Length: 7.1 mm.
- Weight: 0.00018 kg
- Output: 7 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 5 mΩ
- Technology: Metal foil
- Temperature coefficient ±50 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2817
- Resistance
5 mΩ
- Power rating
7 W
- Tolerance ±
1 %
- Temperature coefficient
50 ppm/K
- Length
7.1 mm
- Height
0.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMT-R005-1.0
Documents & Downloads
Datasheet
Datasheet 3208071 Isabellenhütte SMT-R005-1.0 SMT-R005-1.0 SMD resistor 5 mΩ SMD 2817 7 W 1 % 50 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208071 Isabellenhütte SMT-R005-1.0 SMT-R005-1.0 SMD resistor 5 mΩ SMD 2817 7 W 1 % 50 ppm/K 1 pc(s)
Description

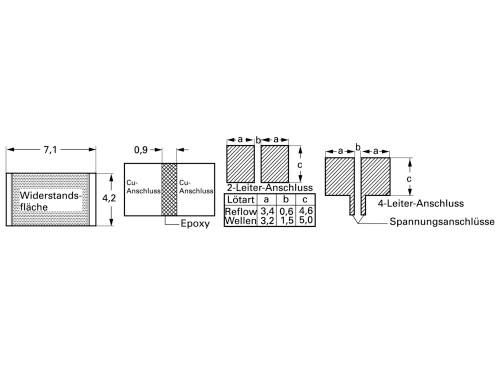

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.
This text is machine translated.
This text is machine translated.
