Isabellenhütte SMT-R022-1.0 SMT-R022-1.0 SMD resistor 22 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2817
Resistance
22 mΩ
Power rating
7 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 4.29 / piece)
€ 42.90
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal foil, SMD 2817, 22 mΩ, 7 W, ±1 %, SMT-R022-1.0
Our service for you
Technical specifications
- Design SMD 2817
- Height: 0.8 mm
- Length: 7.1 mm.
- Weight: 0.00018 kg
- Output: 7 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 22 mΩ
- Technology: Metal foil
- Temperature coefficient ±100 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2817
- Resistance
22 mΩ
- Power rating
7 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/K
- Length
7.1 mm
- Height
0.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMT-R022-1.0
Documents & Downloads
Datasheet
Datasheet 3208069 Isabellenhütte SMT-R022-1.0 SMT-R022-1.0 SMD resistor 22 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208069 Isabellenhütte SMT-R022-1.0 SMT-R022-1.0 SMD resistor 22 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
Description

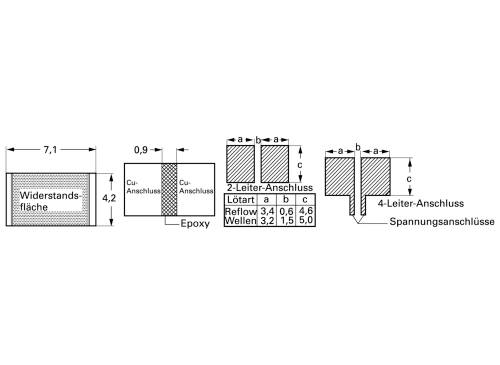

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.
