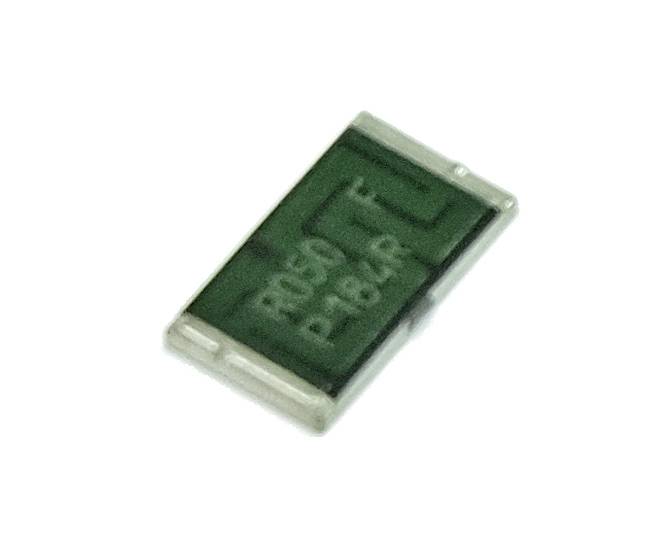

Isabellenhütte SMT-R025-1.0 SMT-R025-1.0 SMD resistor 25 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
Product type
SMD resistor
Type
2817
Resistance
25 mΩ
Power rating
7 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.49 / piece)
€ 3.49
incl. VAT
14-day return policy included
Highlights & Details
Resistance, metal foil, SMD 2817, 25 mΩ, 7 W, ±1 %, SMT-R025-1.0
Our service for you
Technical specifications
- Design SMD 2817
- Height: 0.8 mm
- Length: 7.1 mm.
- Weight: 0.00018 kg
- Output: 7 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 25 mΩ
- Technology: Metal foil
- Temperature coefficient ±100 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2817
- Resistance
25 mΩ
- Power rating
7 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/K
- Length
7.1 mm
- Height
0.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMT-R025-1.0
Documents & Downloads
Datasheet
Datasheet 3208081 Isabellenhütte SMT-R025-1.0 SMT-R025-1.0 SMD resistor 25 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208081 Isabellenhütte SMT-R025-1.0 SMT-R025-1.0 SMD resistor 25 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
Description

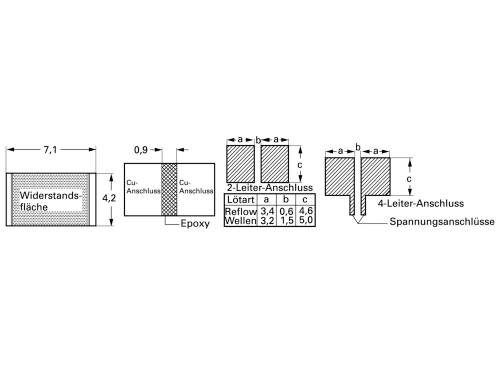

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.
This text is machine translated.
This text is machine translated.
