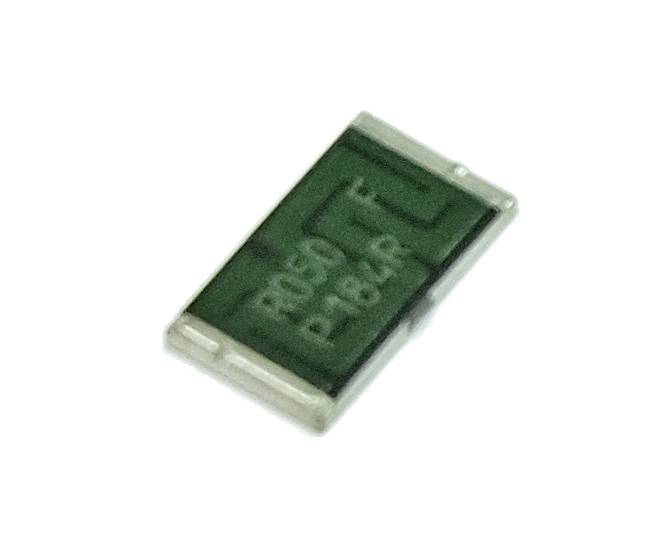

Image similar
Isabellenhütte SMT-R033-1.0 SMT-R033-1.0 SMD resistor 33 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
EAN:
Part number:
Item no:
Product type
SMD resistor
Type
2817
Resistance
33 mΩ
Power rating
7 W
Tolerance ±
1 %
Datasheet (PDF)
Number
Total (€ 5.49 / piece)
€ 5.49
incl. VAT
Only 9 Piece(s) available
Highlights & Details
Resistance, metal foil, SMD 2817, 33 mΩ, 7 W, ±1 %, SMT-R033-1.0
Our service for you
Technical specifications
- Design SMD 2817
- Height: 0.8 mm
- Length: 7.1 mm.
- Weight: 0.00018 kg
- Output: 7 W
- max. temperature: 170 °C
- min Temperature -55 °C.
- Ohm resistance 33 mΩ
- Technology: Metal foil
- Temperature coefficient ±100 ppm/K
- Tolerance: ± 1 %
- Product type
SMD resistor
- Type
SMD
- Type
2817
- Resistance
33 mΩ
- Power rating
7 W
- Tolerance ±
1 %
- Temperature coefficient
100 ppm/K
- Length
7.1 mm
- Height
0.8 mm
- Content
1 pc(s)
- RoHS-compliant
Yes
- Type
SMT-R033-1.0
Documents & Downloads
Datasheet
Datasheet 3208086 Isabellenhütte SMT-R033-1.0 SMT-R033-1.0 SMD resistor 33 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3208086 Isabellenhütte SMT-R033-1.0 SMT-R033-1.0 SMD resistor 33 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)
Description

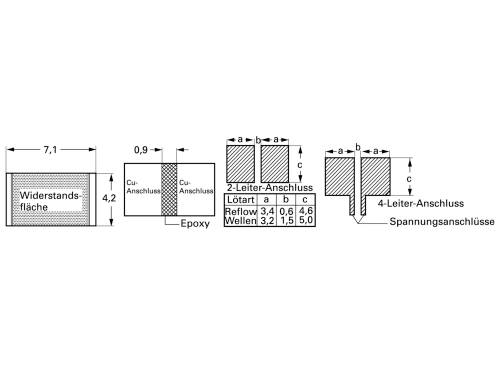

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.
This text is machine translated.
This text is machine translated.
