Isabellenhütte SMT-R220-1.0 SMT-R220-1.0 SMD resistor 220 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)

A rectangular, green electronic resistor with silver terminals, bearing the inscription 'R003 P=18'.<br><br>Note: This translation maintains the precise technical description while using standard British English terminology.

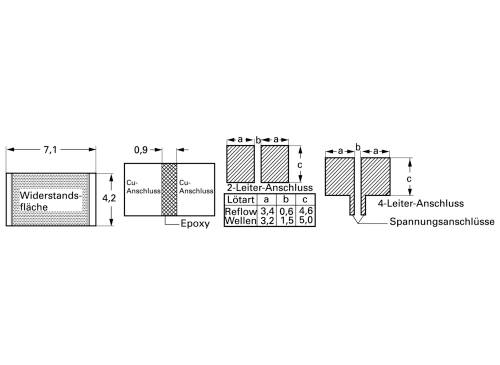

Technical drawing of an electronic component with dimensions in millimetres and information about connections and procedural details.
1/2
Image similar
Product type
SMD resistor
Type
2817
Resistance
220 mΩ
Power rating
7 W
Tolerance ±
1 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Dispatches on Mon 9 Nov
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Minimum order quantity: 10
Multiple: 10
Total (€ 3.49 / piece)
€ 34.90
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Highlights & Details

Resistance, metal foil, SMD 2817, 220 mΩ, 7 W, ±1 %, SMT-R220-1.0

Our service for you

Technical specifications

  • Design SMD 2817
  • Height: 0.8 mm
  • Length: 7.1 mm.
  • Weight: 0.00018 kg
  • Output: 7 W
  • max. temperature: 170 °C
  • min Temperature -55 °C.
  • Ohm resistance 220 mΩ
  • Technology: Metal foil
  • Temperature coefficient ±100 ppm/K
  • Tolerance: ± 1 %
Product type

SMD resistor

Type

SMD

Type

2817

Resistance

220 mΩ

Power rating

7 W

Tolerance ±

1 %

Temperature coefficient

100 ppm/K

Length

7.1 mm

Height

0.8 mm

Content

1 pc(s)

RoHS-compliant

Yes

Type

SMT-R220-1.0

Documents & Downloads

Datasheet

Datasheet 3208038 Isabellenhütte SMT-R220-1.0 SMT-R220-1.0 SMD resistor 220 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)

User & Safety Instructions

User & Safety Instructions 3208038 Isabellenhütte SMT-R220-1.0 SMT-R220-1.0 SMD resistor 220 mΩ SMD 2817 7 W 1 % 100 ppm/K 1 pc(s)

Description

SMD precision resistors design 2817 2.0 to 5.0 Watt tolerance 1.0 % series ISA PLAN type Isabellenhütte SMT. Can be used as a two-wire resistor, four-wire connection to the solder pad. Ideal suitable for switched applications according to low inductance With load carrying capacity 5.0 W.

This text is machine translated.
