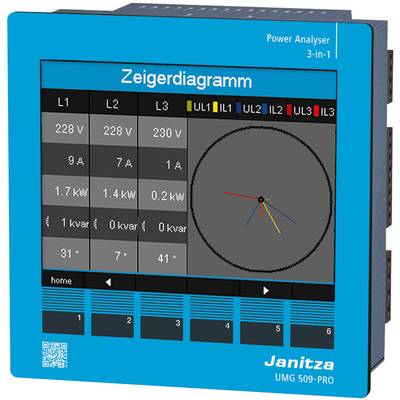

Blue power analyser device 'Janitza UMG 509-PRO' displays a pointer diagram with voltage and power data for L1, L2, L3.

A blue device for displaying electrical measurement values: voltage, current, power, phase angle. Pointer diagram for phase view.

'Electronic module for control cabinet, with connections, switches, and labelling. Used for device control and communication.'

'Power Analyser 3-in-1' Display with pointer diagram and measured values: 227V, 2.00kW, 8.6A, 'Janitza UMG 509-PRO', menu buttons below.

1/4

Datasheet (PDF)

Dispatches on Thu, 13 Aug

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 1,390.76 / piece)

€ 1,390.76

plus VAT.

Report legal concerns

Highlights & Details

Voltage quality analyzer UMG 509-PRO

Master device for energy management systems, (e.g. ISO 50001)
Measurement, monitoring and control of electrical characteristics in energy distribution systems
Consumption data collection
Monitoring of the voltage quality (harmonics, short-term interruptions, transients, starting currents ...)
Transmitter for building control systems or PLCs
Control tasks, for example, depending on the measuring or limit values reached
Peak load optimization
Ethernet gateway for subordinate measuring points
Remote Monito

Technical specifications

Product type: Power quality analyzer

Type: UMG 509-PRO

Recess depth: 170 mm

Reading category: CAT III 600 V

Documents & Downloads

Datasheet

Datasheet 1541261 Janitza UMG 509-PRO Power quality analyzer

User & Safety Instructions

User & Safety Instructions 1541261 Janitza UMG 509-PRO Power quality analyzer

Conformity certificate

Conformity certificate 1541261 Janitza UMG 509-PRO Power quality analyzer

Description

The new PRO series combines the latest technology with outstanding functions and an attractive design. The greater variety of functions and extensive display methods make it easier to analyze and interpret measurement data and measurement results. With the help of the pre-installed Janitza-Apps data can be processed, visualized and analyzed.

This text is machine translated.

Features

Supply voltage 95 - 240V (50 - 60Hz); 80 - 280V DC
Installation category: 300V CATIII
4 voltage measuring inputs,
Measurement category: 600V CATIII
Measurement in three-phase 4-wire systems up to 417V/720V,
Measurement in three-phase 3-wire systems up to 600V,
Measurement range: L - N: 10 - 600V; 40 - 70Hz
Measuring range: L - L: 18 - 1000V; 40 - 70Hz
4 current measuring inputs for current transformers ../1 or ../5A
Measurement range 0.001 .. 7Arms
2 digital inputs, 2 digital outputs
1 temperature input, 2 RCM inputs
Data storage: 256MB Flash,
Interfaces: RS485, Profibus DP V0, Ethernet 10/100 BaseTX
Incl.Web-Server as well as the following APP`s:
App Measured value monitor: Graphic display of online & historical measured values
App IEC 61000-2-4 Watchdog Light PRO: Monitoring of the voltage quality limit values according to IEC 61000-2-4
