Name: JBC Tools DME-2A Controller Digital 90 - 450 °C
Brand: JBC Tools
SKU: 1712440

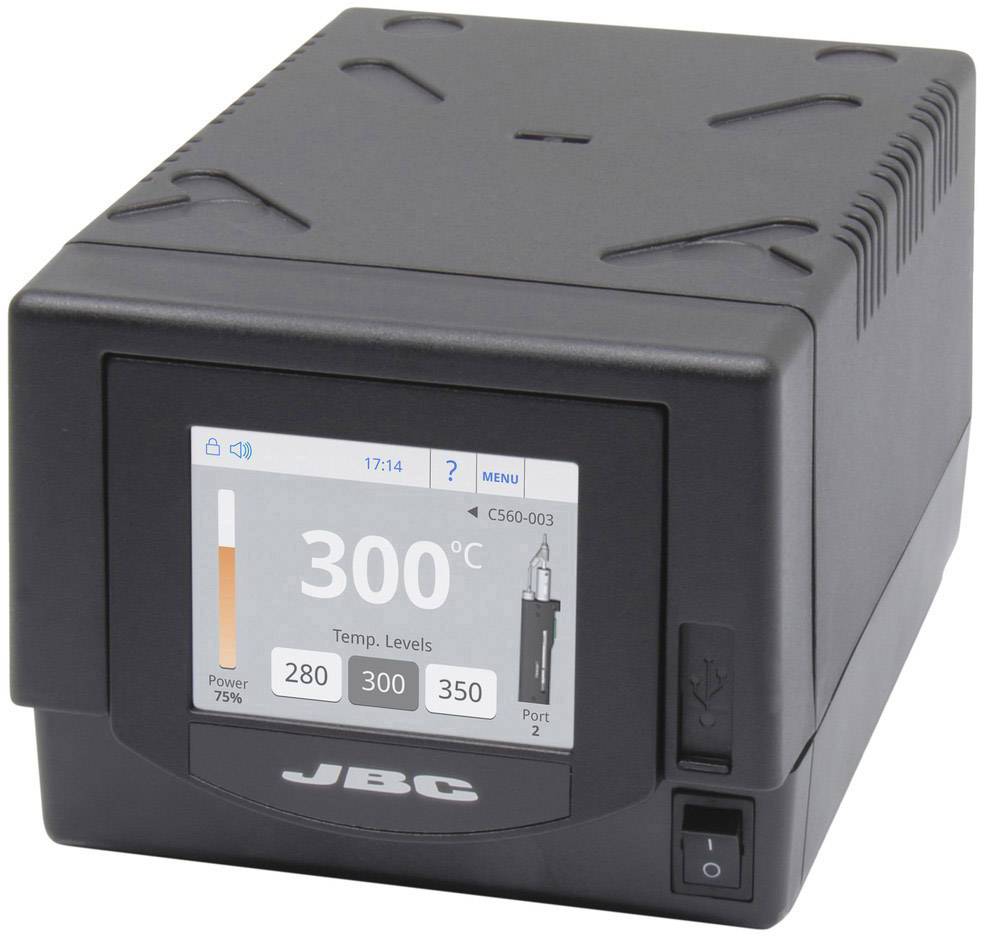

A black electric device with a digital display shows '300°C' and various temperature settings.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Control unit

Modular 4-Channel Control Unit
Capacitive multi-function display
Intuitive menu, easy to use
Simple software update possible
Communication possibility PC power supply unit via USB
All soldering tools with matching files to operate, Exception Nano and HD tools
Gleichzeitger operation of four tools is possible

Technical specifications

Power: 4 x 160 W.

Product type: Controller

Power supply (LOV): mains-powered

Max. temperature: 450 °C

Display: Digital

Dim: (L x W x H) 148 x 120 x 232 mm

Preheat time: 2.6 s

Operating voltage: 230 V

Weight: 4888 g

Width: 120 mm

Height: 232 mm

Length: 148 mm

Min. temperature: 90 °C

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1712440 JBC Tools DME-2A Controller Digital 90 - 450 °C

Description

The DME touch screen control unit allows simultaneous work with up to 4 tools. By use of the flat screen and the intuitive interface you get faster to the main menu and receives at a glance useful information.
The DME offers different connections for additional functions, such as peripheral modules, comprehensive communication between the station and PC (including one RJ-45 LAN ports for parameter management and monitoring) and compatibility with robot systems.
In addition, the DME the development of the lotnetzes by combining up to 3 PS-control units.

This text is machine translated.
