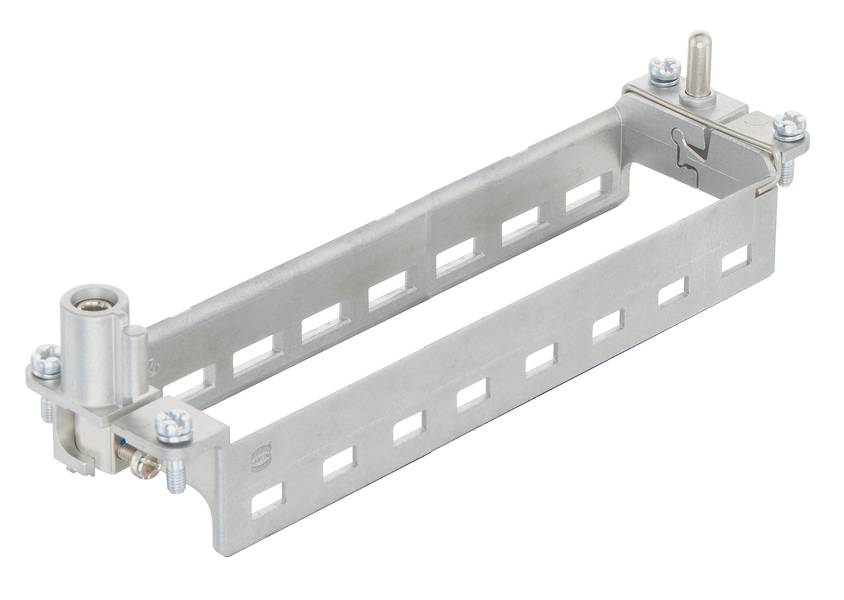

Joint frame plus 09140320371 HARTING Content: 1 pc(s) Joint bracket
Packaging type
Piece
Product type
Joint bracket
Type
09 14 032 0371
Manufacturer part #
09140320371
Total no. of pins
+ PE
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Series: HAN-Modular®
- Temperature limit: -40 ... +125 °C
- Mating cycles ≥ 500
- Standards IEC 60664-1; IEC 61984
- Net weight: 104 g
- Features: Conductor cross-section PE (power side) 4 ... 10 mm²;Conductor cross-section PE (signal) 1 ... 2.5 mm².
- Material: Zinc die-cast; stainless steel
- Accessory type: Joint frame plus
- Accessory description: For 8 modules;a … h.
- Frame size L32 B
- Approvals DNV GL
- Packaging type
Piece
- Type
09 14 032 0371
- Product type
Joint bracket
- Manufacturer part #
09140320371
- Total no. of pins
+ PE
- Content
1 pc(s)
- Material
Zinc (die-cast)
- Max. temperature
125 °C
- Leading contact (PE)
Yes
Other
500
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3008160 Joint frame plus 09140320371 HARTING Content: 1 pc(s) Joint bracket
Datasheet 3008160 Joint frame plus 09140320371 HARTING Content: 1 pc(s) Joint bracket
User & Safety Instructions
User & Safety Instructions 3008160 Joint frame plus 09140320371 HARTING Content: 1 pc(s) Joint bracket
Description
Joint frames plus, for 8 modules, a h, size: L32 B.
