Jonsbo D31 Screen Microtower PC casing Black
EAN:
Part number:
Item no:
Number
Total (€ 92.43 / piece)
€ 92.43
plus VAT.

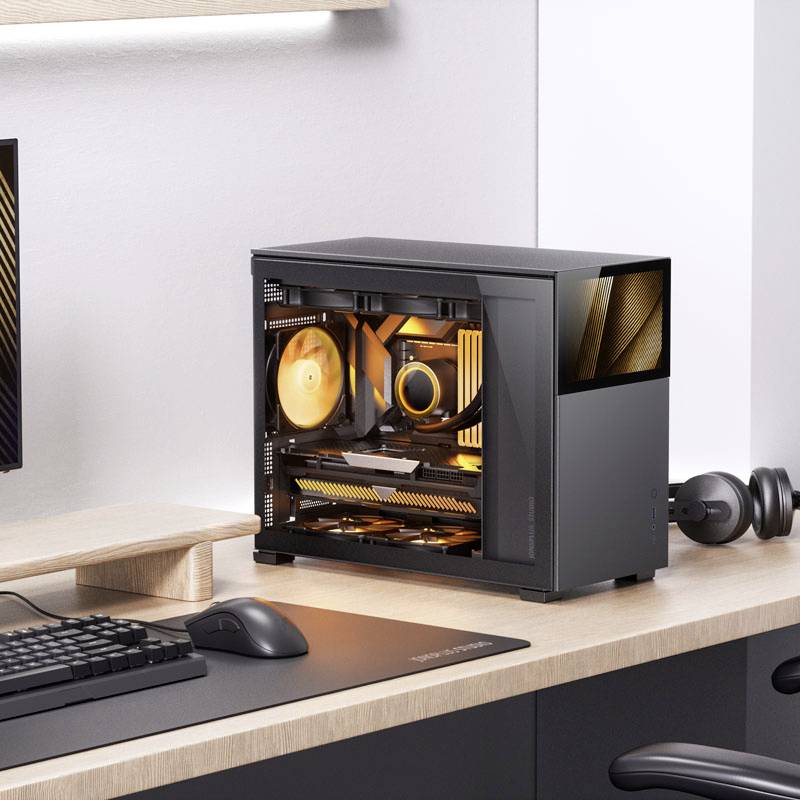

Jonsbo D31 Screen Microtower PC casing
Highlights & Details
- Elegant and versatile mATX casing

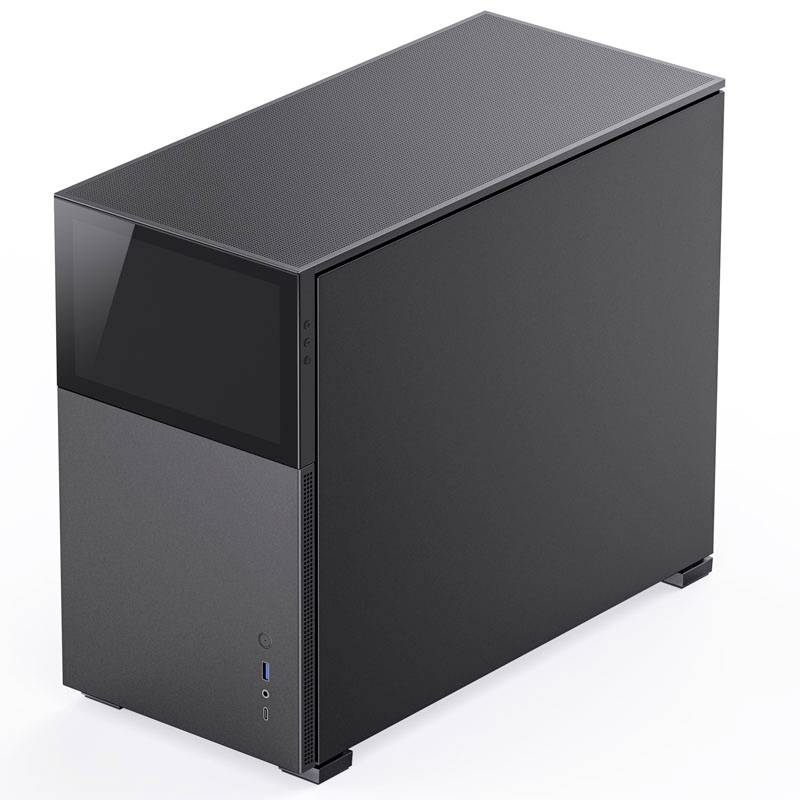

- Closed front for silent builds
- With integrated 8-inch display
- Side made of tempered glass
- Up to 8 fans and 3 radiators possible
- For GPUs with max. length 400 mm
- Adjustable power supply for optimum floor plan
Technical specifications
- Material: Plastic, tempered glass, steel
- Form factor: Micro-ATX, DTX, mini-ITX
- Total fans possible: Front: 1x 120 mm, cover: 3x 120 / 2x 140 mm, base: 3x 120 / 2x 140 mm, rear: 1x 120 mm, of which pre-installed: None
- Radiator-Mounts: Cover: 1x max. 280 / 360 mm, Base: 1x max. 360 mm, rear side: 1x max. 120 mm
- Drive bays: 2 x 2.5 inch (rear panel of mainboard tray), 1 x 3.5 inch (front of floor)
- Extension slots 4
- I/O panel: 1x USB 3.1 (type C, USB 3.2 Gen 2, max. 10 Gbps), 1x USB 3.0 (type A, USB 3.2 Gen 1, max. 5 Gbps), 1x 3.5 mm jack (4-pin, TRRS, for microphone/headphones), 1x Power / reset
- Maximum graphics card length: 330 to 400 mm (depending on the position and size of the power supply)
- Maximum CPU-cooler height 168 mm
- Power supply: ATX, max. 100 - 220 mm long
- TFT LCD screen type
- Diagonal: 8 inches
- Dimensions: 205.3 x 131.7 x 24.6 (W x H x D)
- Resolution: 1280 x 800 pixels
- Aspect ratio: 16:10
- Colours 16.7 MIO.
- Brightness: 300 cd/m²
- Contrast 1:1,000
- 30 MS response time
- Frame rate: 60 Hz
- 1x Mini-HDMI video input
- Power supply 1x USB-C
- Control: 1x on / off, 2x brightness
- Product type
PC casing
- Case type
Microtower
- Factory colour
Black
- Interfaces (front)
Audio line in
Audio line out
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
1
- Width
205 mm
- Height
363 mm
- Depth
452 mm
- Weight
5900 g
- Form factor
Micro-ATX
Mini-ITX
- No. of USB type A 3.0 ports
1 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 205 x 363 x 452 mm
- Keyboard layout
German, QWERTZ
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2876724 Jonsbo D31 Screen Microtower PC casing Black
Description
Elegant and versatile mATX casing
Closed front for silent builds
With integrated 8-inch display
This text is machine translated.
Closed front for silent builds
With integrated 8-inch display
This text is machine translated.
Features
- Compact and stylish casing for Micro ATX mainboards
- Closed front for silent builds, a side panel made of tempered glass
- Designed for vertical air flow with up to eight possible fans
- Vertically adjustable power supply for longer graphics cards
- GPUs must be at least 330 mm long, at most 400 mm long
- Space for up to two 360 mm radiators simultaneously

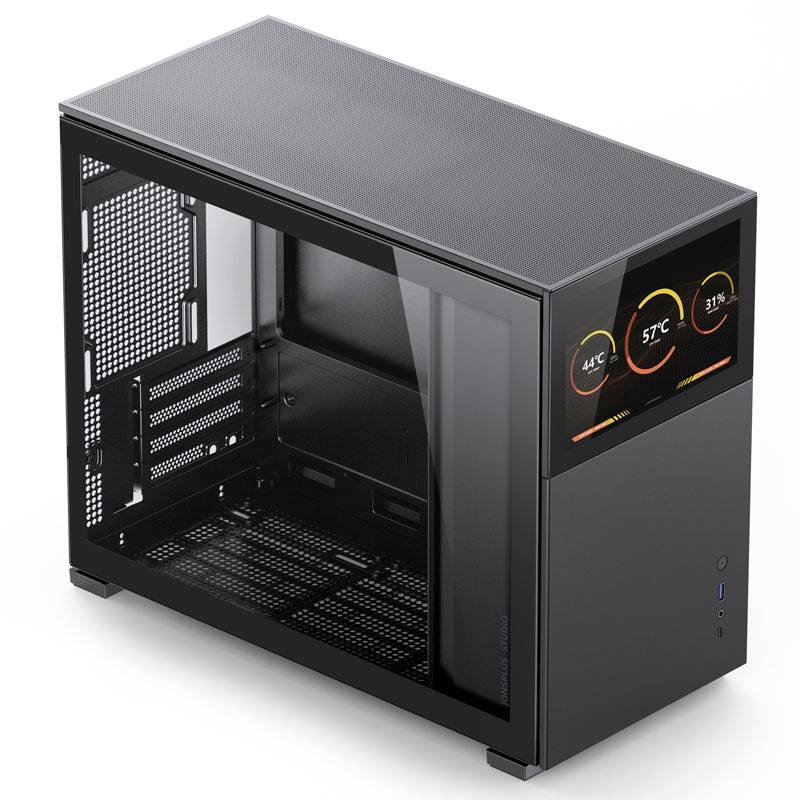

- Equipped with a 8-inch display, such as system information
- Mini-HDMI to HDMI cable and USB-C to USB-A cable for the display are included
