Jonsbo N4 NAS Microtower Casing Black
EAN:
Part number:
Item no:
Number
Total (€ 105.03 / piece)
€
Highlights & Details
Jonsbo N4 NAS Microtower Casing
- Compact Black enclosure for NAS systems
- Space for 2x 2.5 and 6x 3.5 inch drives
- Four low-profile slots for expansion cards up to 230
- Supports CPU coolers up to 70 mm high
- 1x USB-C and 1x USB-A at the front panel
Technical specifications
- Total possible fans: 1x 120 mm (built-in)
- Drive bays:
- 6x 3.5 inches
- 2x 2.5 inches
- Power supply: 1x SFX (optional)
- 4 (Low Profile) extension slots
- I/O-panel:
- 1x USB-C 3.1 (USB 3.2, Gen 2, 10 Gbit/s)
- 1x USB-A 3.0 (USB 3.2 2nd Gen 1, 5 Gbps)
- Maximum graphics card length 230 mm
- Maximum CPU-cooler height 70 mm
- Maximum PSU-length 125 mm
- Case type
Microtower
- Factory colour
Black
- Interfaces (front)
Audio line in
Audio line out
- 6.4 cm (2.5") internal slots
2
- 8.9 cm (3.5") internal slots
6
- Width
286 mm
- Height
228 mm
- Depth
300 mm
- Weight
3750 g
- Form factor
ITX
Micro-ATX
- No. of USB type A 3.0 ports
1 x
- No. of USB 3.0 ports
1 x
- Wireless charging
No
- Dim
(W x H x D) 286 x 228 x 300 mm
- Product type
Casing
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3339221 Jonsbo N4 NAS Microtower Casing Black
Description

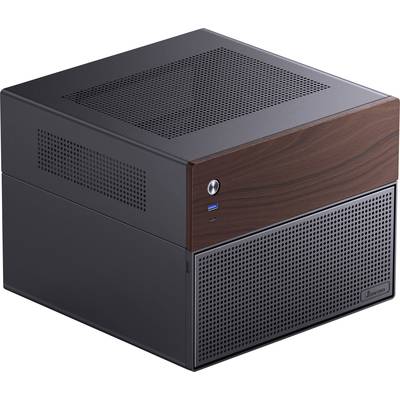

Jonsbo N4: Black NAS case with wood decor
The Jonsbo N4is a cube-shaped micro-ATX housing for DIY NAS servers. The NAS case has a chic design and an elegant decorative border made of dark walnut wood, which makes it yet more attractive.
Hardware options
The Jonsbo N4 offers four half-height expansion slots and supports the installation of expansion cards such as RAID controllers, host bus adapters (HBA), and network interface cards (NIC) up to 230 mm long.
The key factor is storage capacity, however, because you can install up to six 3.5-inch hard drives and two 2.5-inch drives at the same time. With the already built-in backplanes, they can easily be plugged in.
Effective cooling for continuous operation
The height of the CPU cooler may be up to 70 mm. A built-in 120-mm fan on the rear side provides for an optimum cooling of your NAS hardware. The perforated front plate in front of the drive compartment and additional perforations at the sides and top also help keep your NAS system cool enough to ensure longevity.
The wood panel has a 10 Gb/s USB-C port and a 5 Gb/s USB-A port
This text is machine translated.
Features
- Black Micro ATX housing for DIY NAS
- 6x 3.5 inches + 2x 2.5 inches
- 4x low profile extension slots
- CPU cooler up to 70 mm height
- A fan is pre-installed
- 1x USB-C / 1x USB-A
