Name: Joy-it Experiment Kit Raspberry Pi® 400 4 GB 4 x 1.8 GHz Keyboard, Breadboard, Heatsink, Housing
Brand: Joy-it
SKU: 3431114

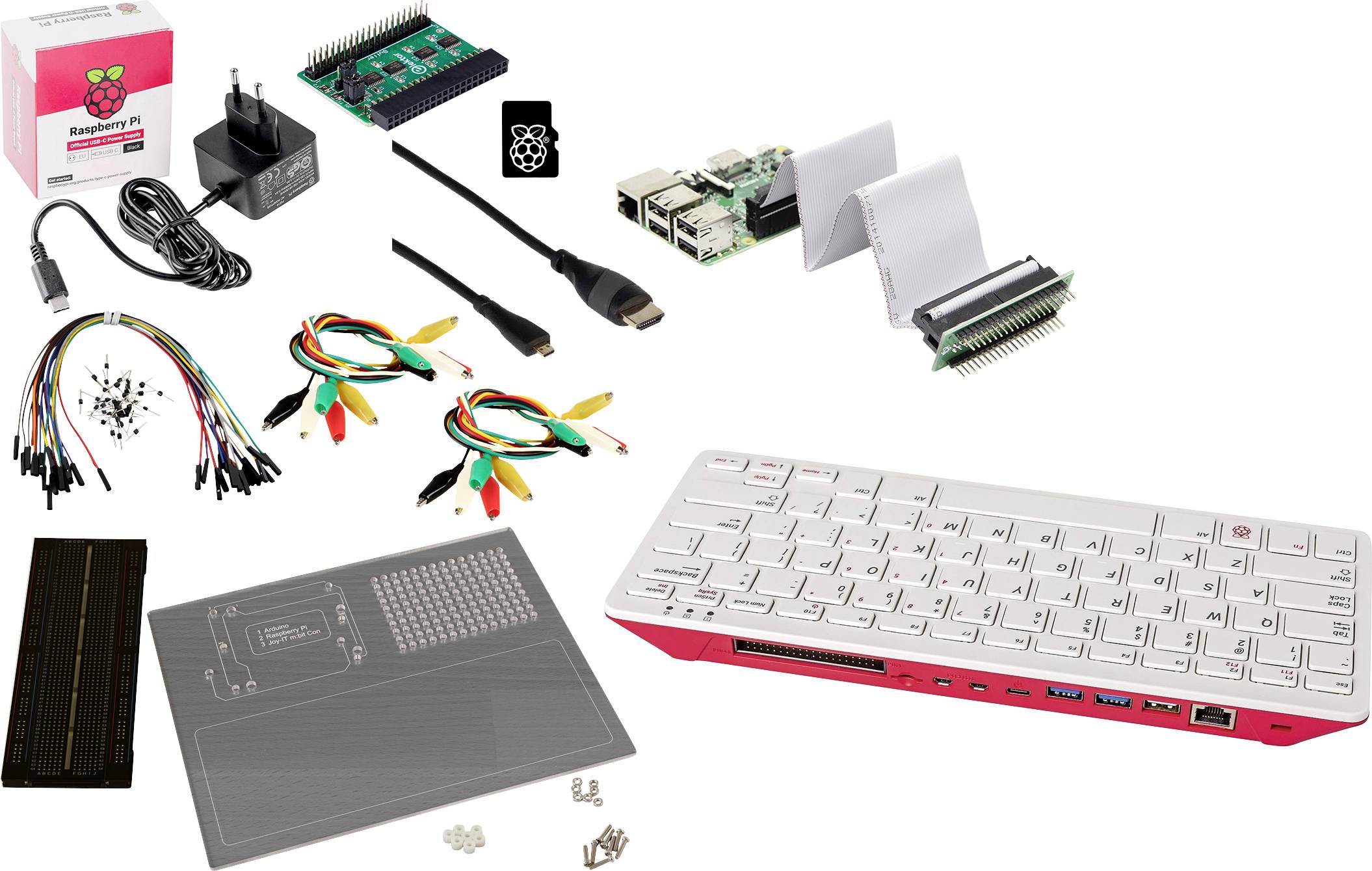

Joy-it Experiment Kit Raspberry Pi® 400 4 GB 4 x 1.8 GHz Keyboard, Breadboard, Heatsink, Housing-0

A compact, white keyboard with red ports and an integrated computer on the rear, including USB and HDMI connections.

White, flat computer keyboard in side view with red accents along the bottom. No visible brands or labels.

An HDMI-to-Micro-HDMI cable with a larger HDMI plug and a smaller Micro-HDMI plug for digital connections.

A green printed circuit board with multiple integrated circuits, pins, and connector interfaces. It is used for connecting and controlling electronic components.

'Electronics Learning Kit' contains a breadboard, jumper wires, alligator clips, and screws. Ideal for experiments and circuits.

'Flat ribbon cable adapter with green printed circuit board and two black connectors, enabling modular electronic interconnection.'

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Joy-it Experiment Kit Raspberry Pi® 400 4 GB 4 x 1.8 GHz Keyboard, Breadboard, Heatsink, Housing

All-in-one computer based on the Raspberry Pi® 4 within a stylish keyboard (version: German keyboard layout)
Includes extensive accessories for experimental set-ups

Technical specifications

Product type: SBC starter kit

Type: Raspberry Pi® 400

SoC: Broadcom 2711

Processor: ARM Cortex-A72

Processor cores (No.): 4 x

GPU: Broadcom Video Core VI

: 4 GB

Clock speed: 1.8 GHz

Memory type: DDR4

Operating system (Version): w/o OS

Memory capacity: 0 GB

Internal ports: GPIO (40-pin)

External ports: USB-C® (current)
USB 2.0
2x USB 3.0
2x HDMI™
LAN (10/100/1000)
3.5 mm jack
micro SD

Wi-Fi: b/g/n/ac

Bluetooth: 5.0

Power supply (LOV): via USB

Output voltage: 5 V DC

Output current: 3 A

Content: Keyboard
Breadboard
Heatsink
Housing

Length: 285 mm

Width: 122 mm

Height: 22 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3431114 Joy-it Experiment Kit Raspberry Pi® 400 4 GB 4 x 1.8 GHz Keyboard, Breadboard, Heatsink, Housing

Description

Raspberry Pi® 400: Computer and keyboard in one
With a quad-core 64-bit processor, 4 GB RAM, wireless networking, Dual display output and 4K video playback, and a 40-pin GPIO connector, the Raspberry Pi® 400 is a powerful, easy-to-use computer built into a simple-to-use and portable keyboard. He recalls the former Commodore 64 (C64) from the 1980s - now only with significantly more Power.
Raspberry Pi® 400 contains a specially made circuit board, which is based on Raspberry Pi® 4. Equipped with the same powerful processor, the Raspberry Pi® 400 has a specially developed thermal technology that keeps your computer cool and quiet.
The GPIO pins will continue to remain accessible. It is thus possible to connect components and to implement your projects in a prototype.

Logic level converter 5V/3.3V
This logic level converter board allows devices with a logic level of 5 V to be operated at the 40-pin GPIO header on the Raspberry Pis. The logic level of the GPIOS can be switched between 3.3 V and 5 V with a jumper.
In addition, this board facilitates access to the GPIO header when used with the Raspberry Pi 400.

GPIO connector kit
With this Cobbler/ connection kit you can connect your Raspberry Pi with additional and self-constructed circuit boards.
In addition, the supplied GPIO ribbon cable with a length of 15 cm can be used to extend the Raspberry Pi and all expansion boards that can be connected to the GPIO port of the Raspberry.
The kit includes 1x 40-pin GPIO ribbon cable, 1x mini PCB and 2x header pins.

Breadboard developing kit
The breadboard toolkit is the ideal starting point to carry out experimental setups and electronic experiments with your choice of microcontroller.
The supplied mounting bracket includes several holes for securely mounting most common controllers such as Raspberry Pi, Arduino, BBC micro:bit and many more (screws are included in the set).
In addition to a 830-PIN (200 for power supply ) breadboard and various jumper cables (including pins to configure the cables "male" as required), alligator clip cables are also included.
