Name: Joy-it Sensor/Breadboard-Kit Arduino UNO Q 4 GB 4 x 2.0 GHz Arduino UNO
Brand: Joy-it
SKU: 3521963

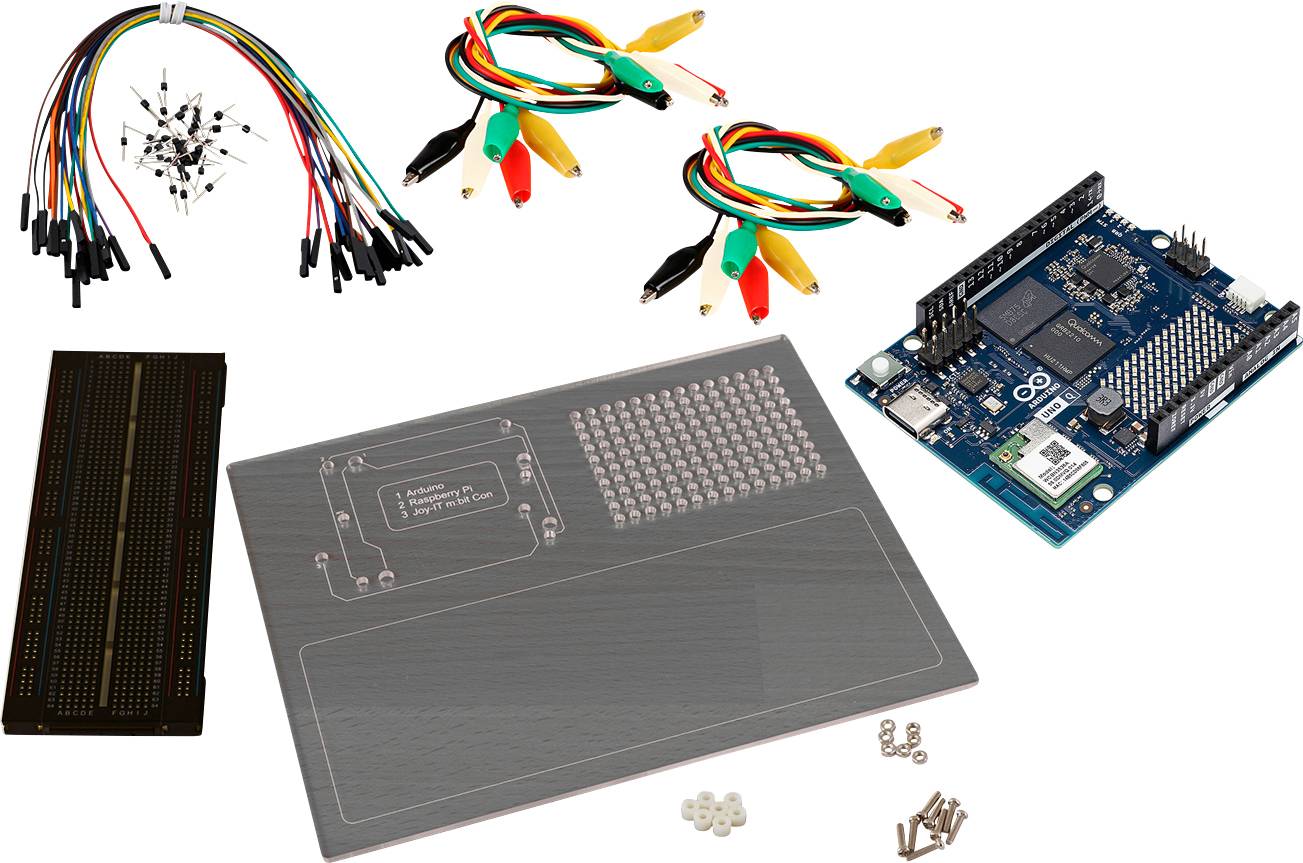

'Joy-it' electronic starter kit includes a microcontroller board, jumper wires, breadboard, and alligator clips for project building.

Box of the X40 Sensor Kit by Joy-it, displaying a microphone and technical text on turquoise, suitable for makers and professionals.

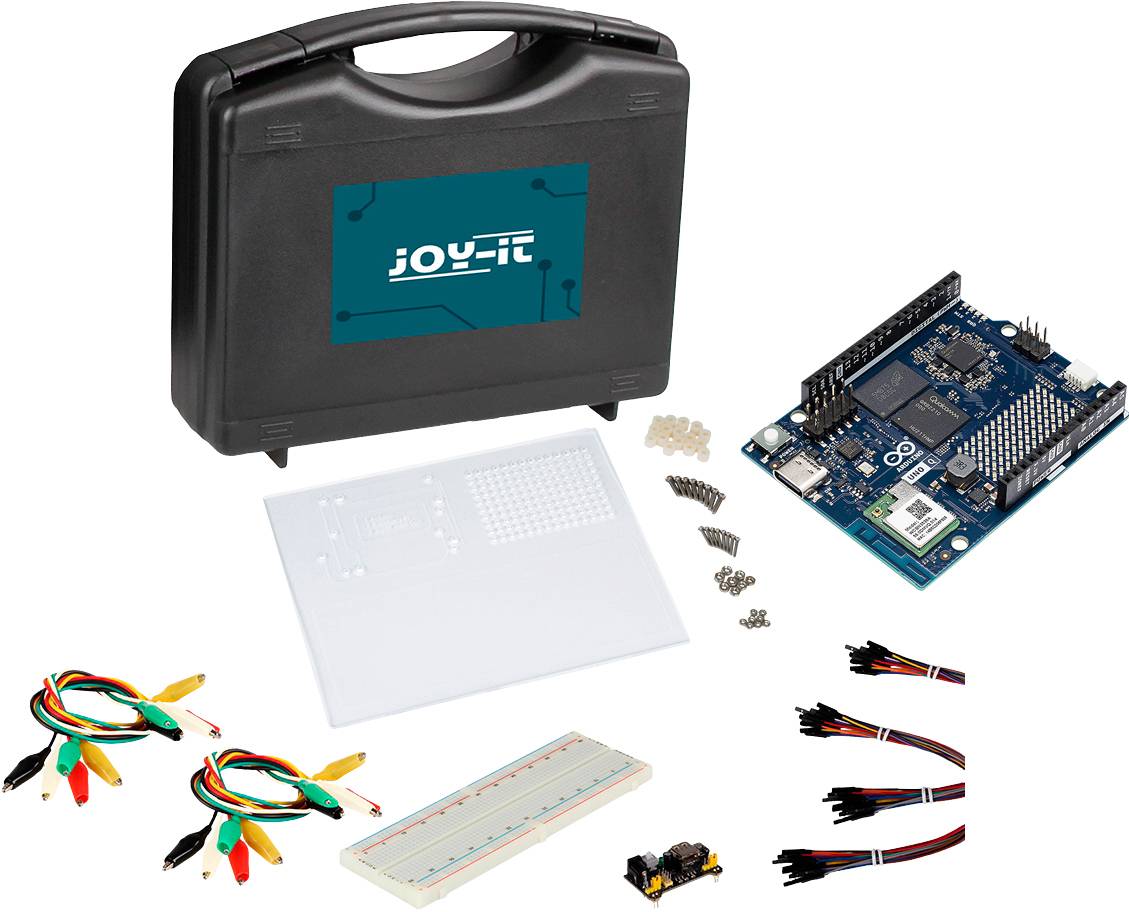

Toolkit with electronic components: crocodile clips, breadboard, cables, resistors and sensor, suitable for DIY electronics projects.

'A compact Arduino circuit board featuring various components and a USB-C port, designed for electronic prototyping and development.'

Arduino UNO Q board with Qualcomm chip, USB-C port, and multiple I/O pins, designed for IoT applications and software development.

Close-up of an Arduino board featuring a Qualcomm chip and various electronic components, highlighting connectivity options and circuit design.

Close-up view of an Arduino Uno microcontroller board with visible Qualcomm chip, showing circuitry and components essential for electronic projects.

Close-up of a blue circuit board featuring logos of 'Arduino UNO Q' and 'Qualcomm Dragonwing', highlighting the technology integration.

Various electronic sensors and modules in an arrangement. Included are potentiometers, relays, buttons and ultrasonic sensors.

1/9

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Joy-it Sensor/Breadboard-Kit incl. super smash bros. Arduino UNO Q4 GB

Complete basic set for breadboard experiments
With 6 bits. Module for power supply (3.3 + 5V)
With 40-part sensor set and 250-page instructions including program codes for Arduino
With 6 bits. Arduino UNO Q4 GB

Technical specifications

Microprocessor (MPU): Qualcomm Dragonwing™ QRB2210: Quad-Core Arm® Cortex®-A53 with 2.0 GHz / Adreno GPU 3D graphics accelerator: 2x ISP (13 MP + 13 MP or 25 MP) with 30 fps
Microcontroller (MCU): STM32U585 / Arm® Cortex®-M33 with up to 160 MHz / 2 MB flash memory / 786 KB SRAM
Power supply: Via USB-C port 5 VDC max. at 3 A / input voltage (VIN): 5 VDC
USB 1× USB-C connection with host/device roller switching, current roller circuit and video output
Connectivity: Wi-Fi® 5 2,4/5 GHz with integrated antenna / Bluetooth® 5.1 with integrated antenna
INTERFACES I2C/I3C, SPI, PWM, CAN, UART, PSSI, GPIO, JTAG, ADC
Video: Video output support via USB-C, MIPI DSI pins on the JMEDIA header
4× RGB LEDs, user-controlled / 8x13 blue LED matrix / 1x QWIIC connector, 3V3 voltage, I2C / 1x user pushbutton / JCTL: MPU remote debug connection
Audio: Microphone input / headphone output / line output on JMISC
Dimensions: 68.85 mm x 53.34 mm (UNO form factor)
MPU Operating System: Linux Debian OS with upstream support
Real-time operating system: Arduino Core on Zephyr OS
Containment: Docker- und Docker Compose-support
Supported operating systems for Arduino APP Lab: Windows: Windows: 10 or higher (64-bit) / MacOS: MacOS 11 or higher (64-bit) / Linux: Ubuntu 22.04 or higher and Debian Trixie (64-bit)

Product type: SBC starter kit

Type: Arduino UNO Q

Processor: ARM Cortex-A53

Processor cores (No.): 4 x

: 4 GB

Clock speed: 2.0 GHz

Memory type: FLASH

Operating system (Version): Linux

Memory capacity: 32 GB

External ports: USB-C® (current)

Wi-Fi: b/g/n/ac

Bluetooth: 5.1

Power supply (LOV): via USB
via PSU (optional)

Output voltage: 5 V

Output current: 700 mA

Content: Arduino UNO

Length: 68.85 mm

Width: 53.34 mm

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3521963 Joy-it Sensor/Breadboard-Kit Arduino UNO Q 4 GB 4 x 2.0 GHz Arduino UNO

Description

The breadboard toolkit is the ideal starting point to Arduino UNO Q carry out experimental setups and electronic experiments with the microcontroller.
The mounting bracket supplied with the product contains fixing screws for Arduino UNO Q mounting (fixing screws are included in the set).

In addition to a 830-PIN (200 for power supply ) breadboard and various jumper cables (including pins to configure the cables "male" as required), a power module is also included. This module allows easy voltage supply of your own experiments or test lab on Breadboards. The board is simply plugged in and supplied, then the breadboard with 3.3 and 5 V, the voltage can be adjusted separately for each side.

In addition, 3.3 as well as 5 V and ground on pins are also available for acceptance. The maximum output current is 700 mA. The board can be powered via most of the mobile phone chargers thanks to the micro USB port, IN addition, a standard USB and a DC IN input are also available. If the DC IN is used as an input source, the USB ports can also be used to supply current. You can use the switch to select between the input source USB or DC IN.

Extensive sensor collection
The extensive sensor set was developed with much love for the detail, in order to develop your own projects with the most common open-source platforms and immerse in the world of programming. For each of the carefully selected components you have not only a comprehensive documentation, which explains the function, but also the immediately usable programming codes available. This makes Ideal suitable for school or vocational training purposes, since practically no programming knowledge is required.
So you have the option to check your heart rate in no time at all or to measure the room temperature and humidity in your environment. You can either permanently solder the sensors or put them on a breadboard, to work on different circuits or experiments.

With 6 bits. Arduino UNO Q4 GB
Arduino UNO Q combines high-performance computers with real-time control and thus supports demanding applications such as object detection, voice commands, motion detection and much more. Performance and ease of use – all combined in a UN

The hybrid design from Arduino UNO Q makes it the perfect Dual brain platform for your next innovation. It combines a Linux® Debian-enabled Qualcomm® Dragonwing™ QRB2210 microprocessor with a STM32U585 real-time microcontroller (MCU). It's Arduino, it's a computer, it's all WAS you want to build.
