JTS PS-510M
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Net weight: 0.08 kg
- Dimensions 65 x 92 x 30 mm
- Ass. Operating temperature 0-40 °C
- Weight 80 g

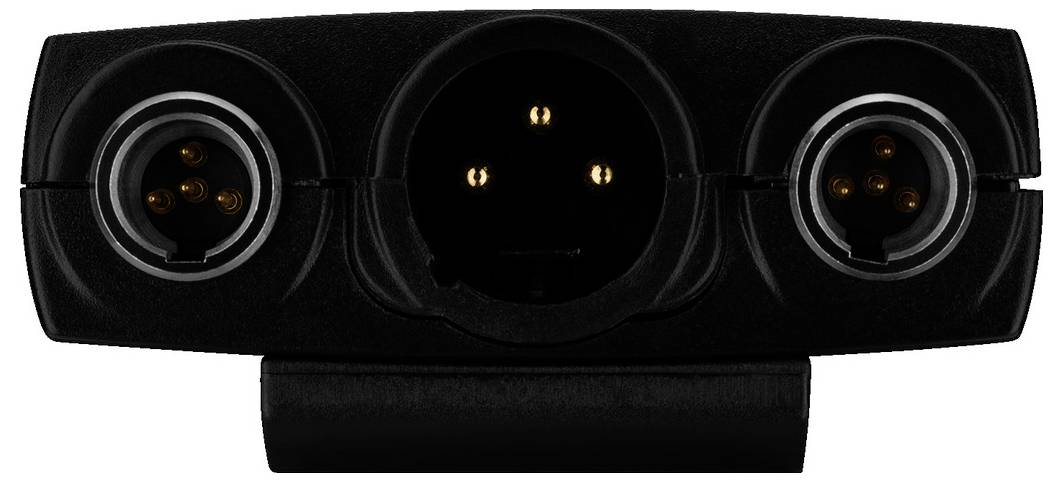

- Connection 2 x 4-pin mini XLR (input)1 x XLR, balanced (Output)1 x 3.5 mm jack (headphones)
- Input voltage: 9 V battery (not supplied) or 12-48 V Phantom
- Dim
(W x H x D) 65 x 30 x 92 mm
- Weight
80 g
- Width
65 mm
- Height
30 mm
- No. of inputs
2 x
- Channels
2
- Depth
92 mm
- Interfaces
XLR out
- No of. XLR outputs
1 x
Documents & Downloads
Datasheet
Datasheet 3340919 JTS PS-510M
User & Safety Instructions
User & Safety Instructions 3340919 JTS PS-510M
Description

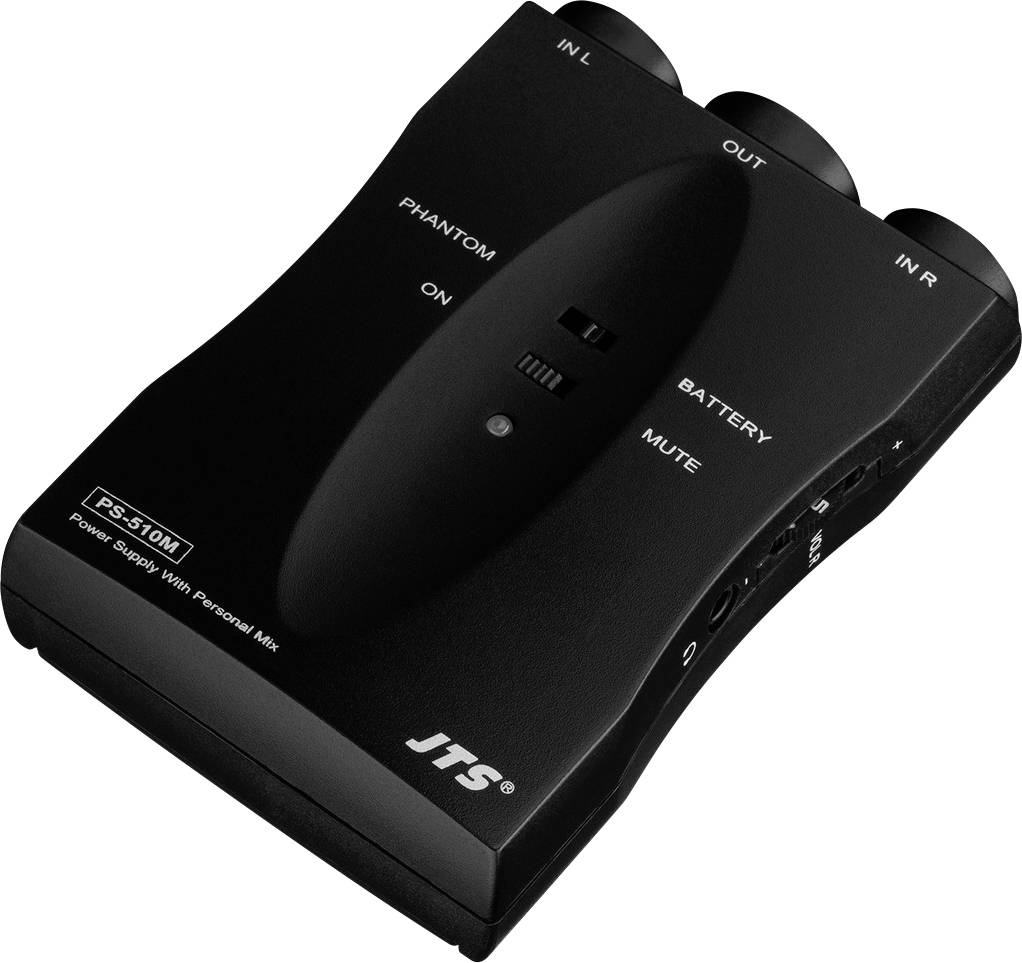

Phantom power adapter/mixer, battery-operated
For the power supply of two microphones with 4-pin mini XLR connection (e.g. CX...W-series, head-band and Lavalier-microphones of the CX-/CM-series) Enables the operation at mixing desks, home recorders or similar without integrated +48-V phantom-feed Separate volume control for both microphones Adjustable headphone output Mute switch belt clip
This text is machine translated.
For the power supply of two microphones with 4-pin mini XLR connection (e.g. CX...W-series, head-band and Lavalier-microphones of the CX-/CM-series) Enables the operation at mixing desks, home recorders or similar without integrated +48-V phantom-feed Separate volume control for both microphones Adjustable headphone output Mute switch belt clip
This text is machine translated.
Features
- Category: Phantom power adapter/mixer
- Input voltage: 9 V battery (not supplied);or 12-48 V Phantom
- Connections: 2 x 4-pin mini XLR (input);1 x XLR
- balanced (Output);1 x 3.5 mm jack (headphone)
- Ass. Operating temperature 0-40 °C
- Dimensions 65 x 92 x 30 mm
- Weight 80 g
