Jumo 00044862 Protective sleeve
Product type
Protective sleeve
Manufacturer part #
00044862
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Technical specifications
- Manufacturer part #
00044862
- Product type
Protective sleeve
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2756005 Jumo 00044862 Protective sleeve
User & Safety Instructions
User & Safety Instructions 2756005 Jumo 00044862 Protective sleeve
Description

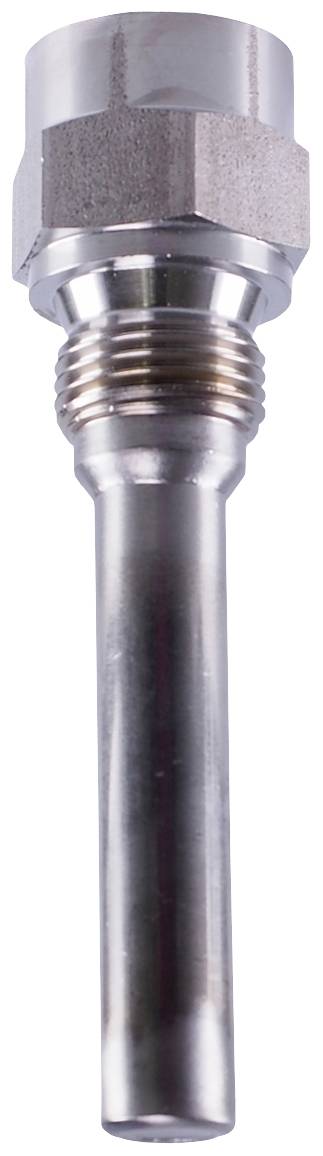

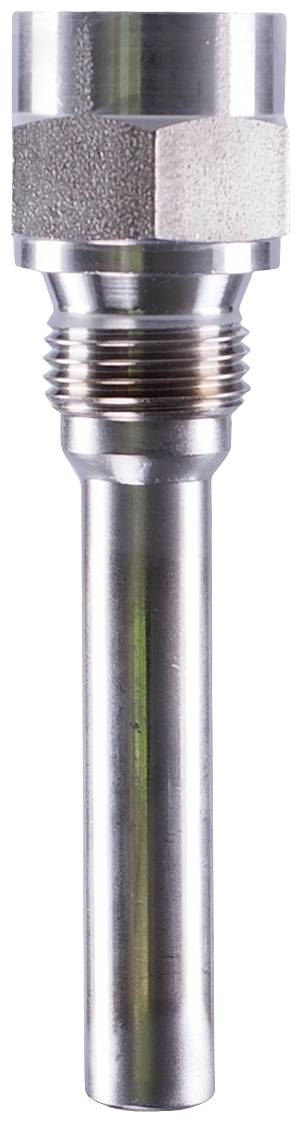

The cylindrical screw-in protective sleeve is used for the installation of thermocouples and resistance thermometers, for example, when a sensor exchange without system emptying and/or pressure resistance is required. The protective sleeve with female thread G 1/2 (DIN 16179 shape D) is designed for temperatures from 0 to 400 °C. The outer diameter of the protective tube is 13 mm. A screwed gland G 1/2 serves as the process connection. Internal diameter and installation length is 11 x 100 mm. The dimensions given refer to the thermometers. Stainless steel 1.4571 is used as protective sleeve material.
