Jumo 00348538 Protective sleeve
Product type
Protective sleeve
Manufacturer part #
00348538
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 315.00 / piece)
€ 315.00
incl. VAT
14-day return policy included
Technical specifications
- Manufacturer part #
00348538
- Product type
Protective sleeve
- Content
1 pc(s)
Documents & Downloads
Datasheet
Datasheet 2756138 Jumo 00348538 Protective sleeve
User & Safety Instructions
User & Safety Instructions 2756138 Jumo 00348538 Protective sleeve
Description

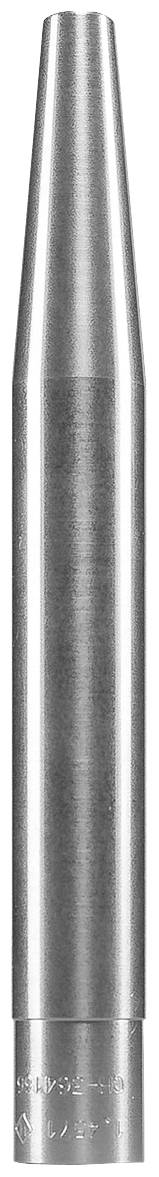

The welded-in protective sleeve is used for the installation of thermocouples and resistance thermometers, for example, when sensor replacement without system emptying and/or pressure resistance is required. The protective sleeve with internal thread M18 x 1.5 (DIN 43763, shape D1) is designed for temperatures from 0 to 400 °C. The outer diameter of the protective tube is 24 mm and has a distance of 12.5 mm. Internal diameter and installation length are 7 x 65 mm with a total length of the protective sleeve of 140 mm. The dimensions given refer to the thermometers. Stainless steel 1.4571 is used as protective sleeve material.
