Jumo 60003376 Protective sleeve
Product type
Protective sleeve
Manufacturer part #
60003376
Content
1 pc(s)
UKCA
not relevant
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 144.99 / piece)
€ 144.99
incl. VAT
14-day return policy included
Technical specifications
- Manufacturer part #
60003376
- Product type
Protective sleeve
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2756985 Jumo 60003376 Protective sleeve
User & Safety Instructions
User & Safety Instructions 2756985 Jumo 60003376 Protective sleeve
User & Safety Instructions 2756985 Jumo 60003376 Protective sleeve
Description

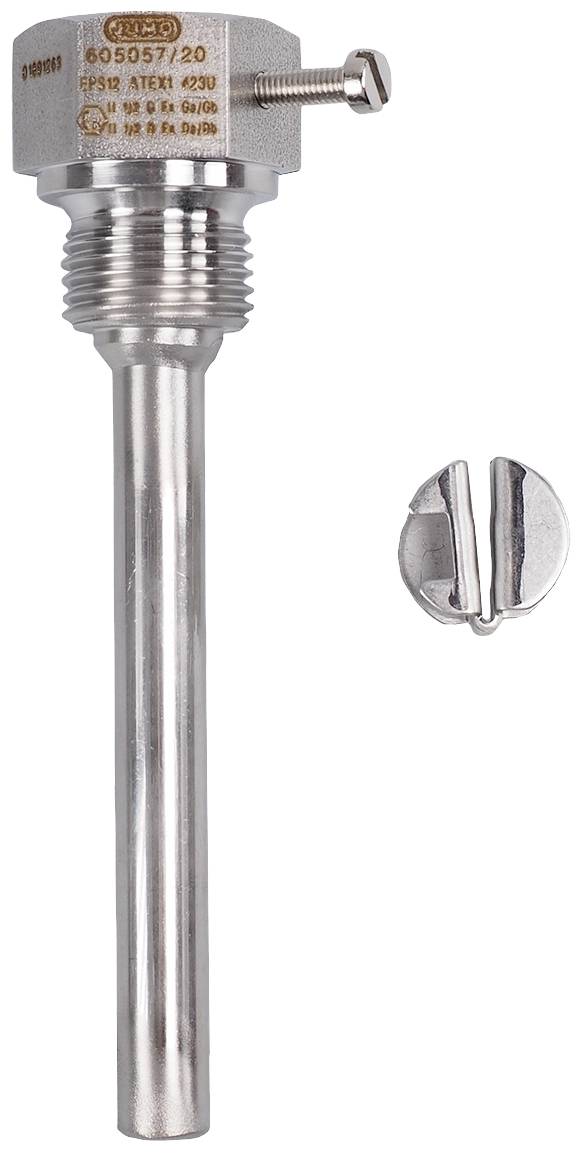

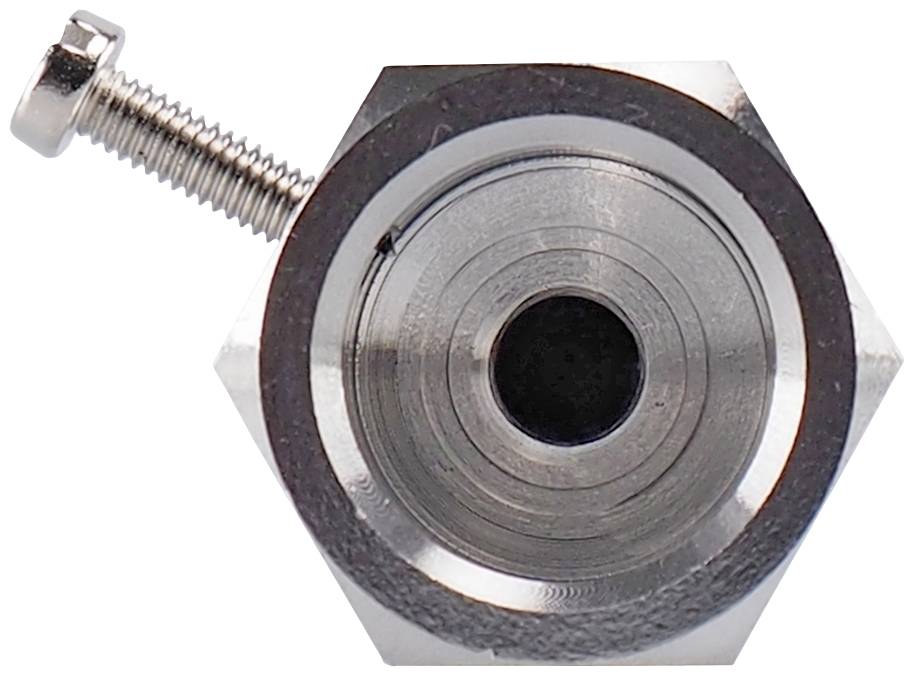

The protective sleeve for screw-in from stainless steel (material no. 1.4571) has a diameter of 10 mm and is suitable for a sensor with a diameter of 6 mm. Attachment takes place through a thread G 1/2 Form A according to DIN 3852/2. The protective sleeve is suitable for explosion-proof separation due to its wall thickness of 1.5 mm. The sleeve has an ATEX approval according to EN 600079 and is supplied with an acceptance test certificate 3.1 in accordance with DIN EN 10204. The maximum permissible pressure load at a temperature of 100°C is 74 bar. The sleeve can be used in areas where there is a risk of explosion.
