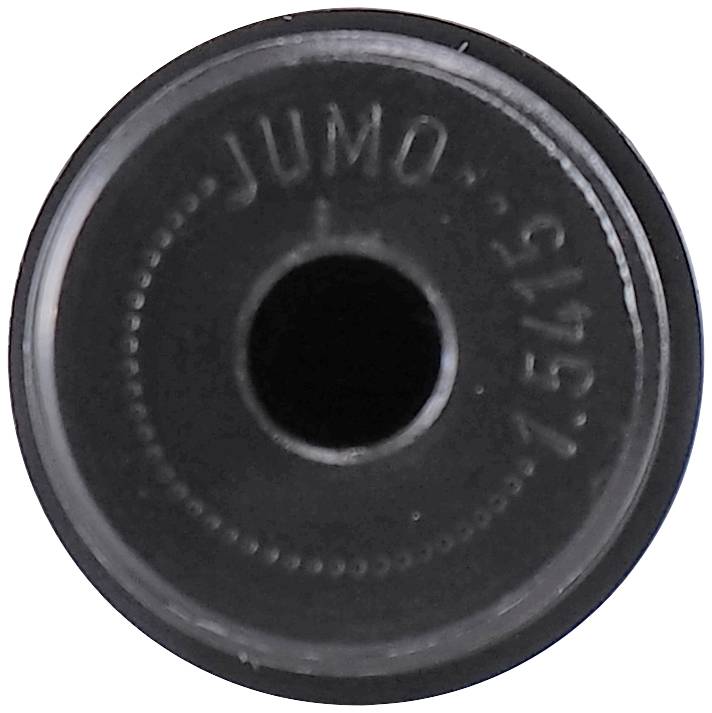

Jumo 60694002 Protective sleeve

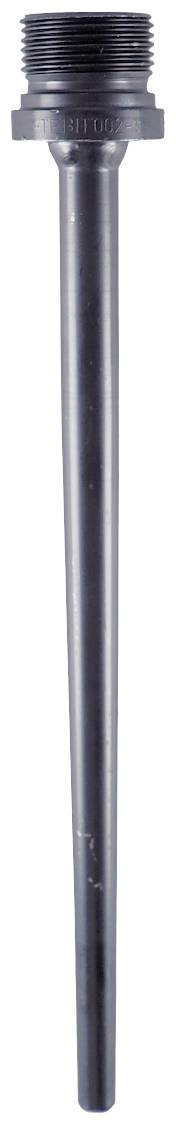

The black molded steel welding sleeve is conical and suitable for a sensor with a diameter of 6 mm. The immersion tube runs conically from 12 mm to 8 mm. The attachment on the plant side is done by a sweat band with a diameter of 30 mm. On the device side the sleeve can be fixed with a thread G 3/4 at a swivel nut.The maximum pressure load permitted at a temperature of 150 °C is 83 bar.
