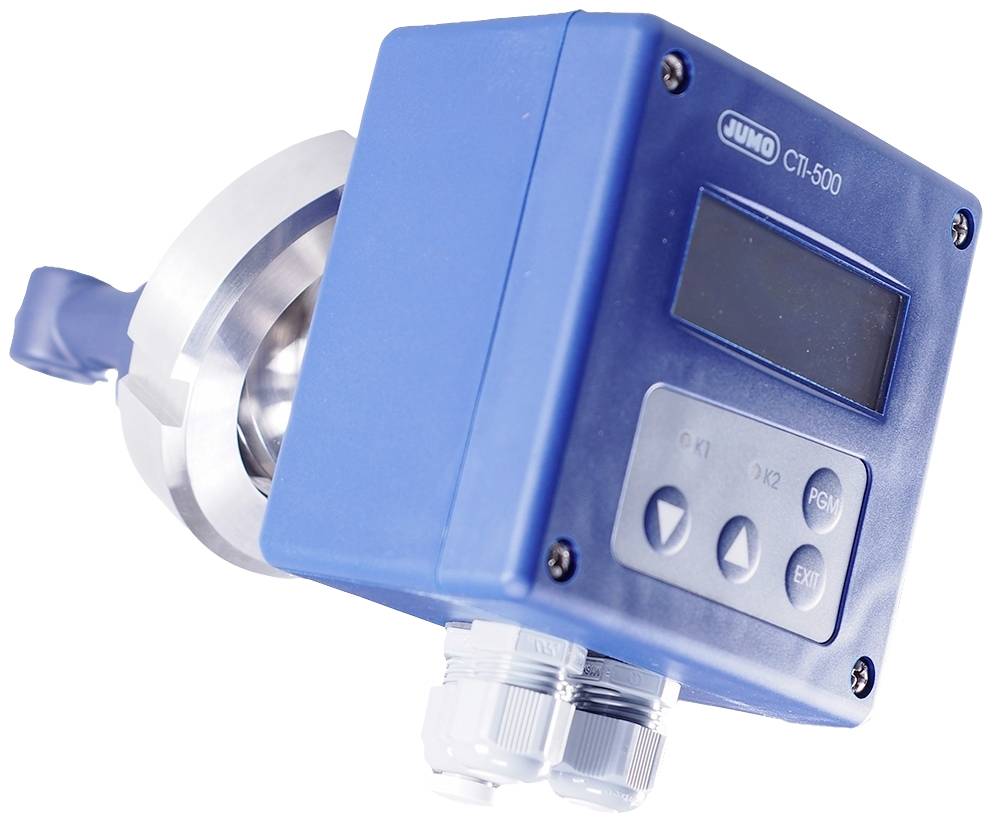

Jumo Inductive conductivity/concentration and temperature measurement transducer 00445845

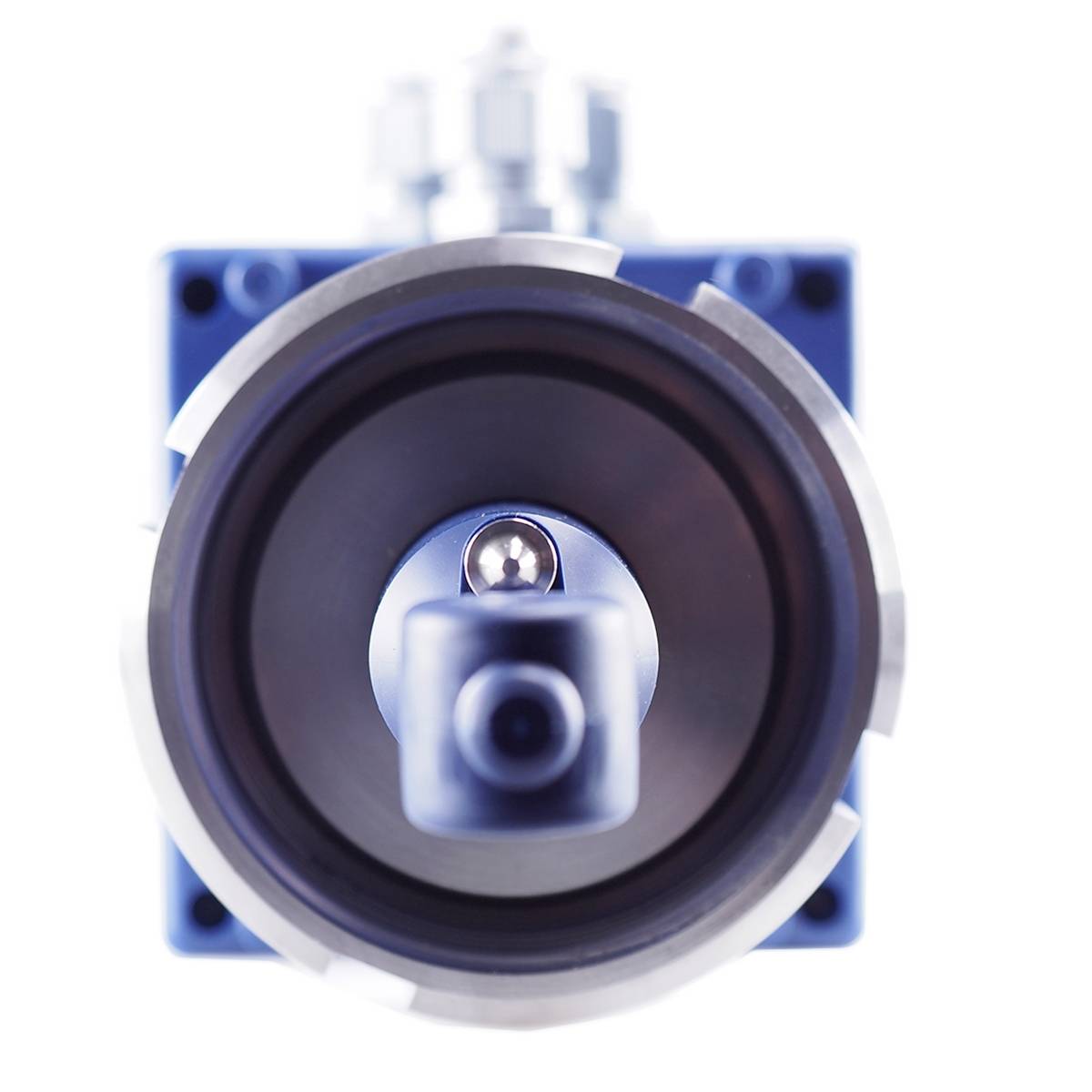

This inductive conductivity/concentration and temperature transmitter with switch contacts and permanently mounted sensor has two freely programmable analogue outputs for conductivity and temperature as well as two potential-free contacts. Up to four measurement ranges and temperature coefficients can be activated. The temperature compensation can be made linear, natural water or as separate characteristic (learning function). The device also has a desalination control. The device can be operated via display and keyboard as well as via setup software. The device has a DN50 pipe gland, DIN 11851 (MK DN50, milk cone) as the process connection. The power supply is via a mains adapter with 19...31 V.
