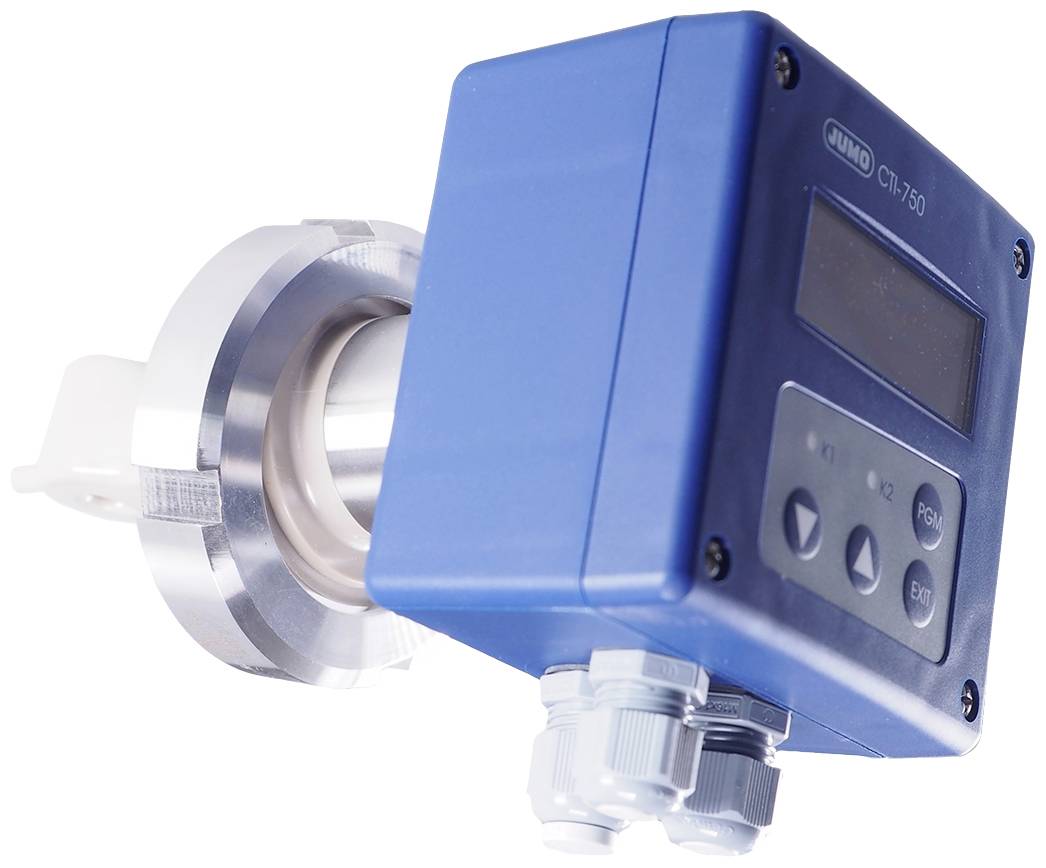

Jumo Inductive conductivity/concentration and temperature measurement transducer 00544540

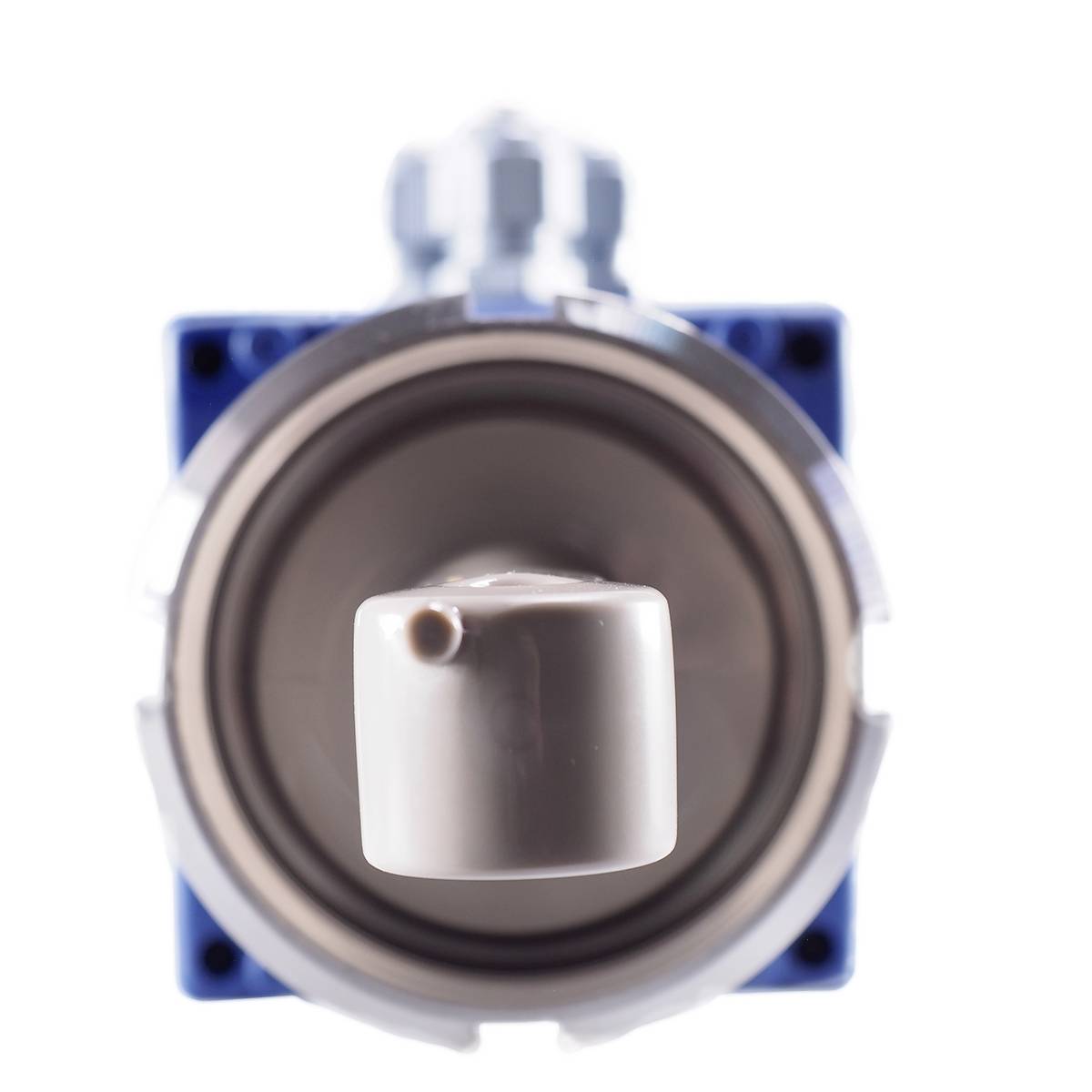

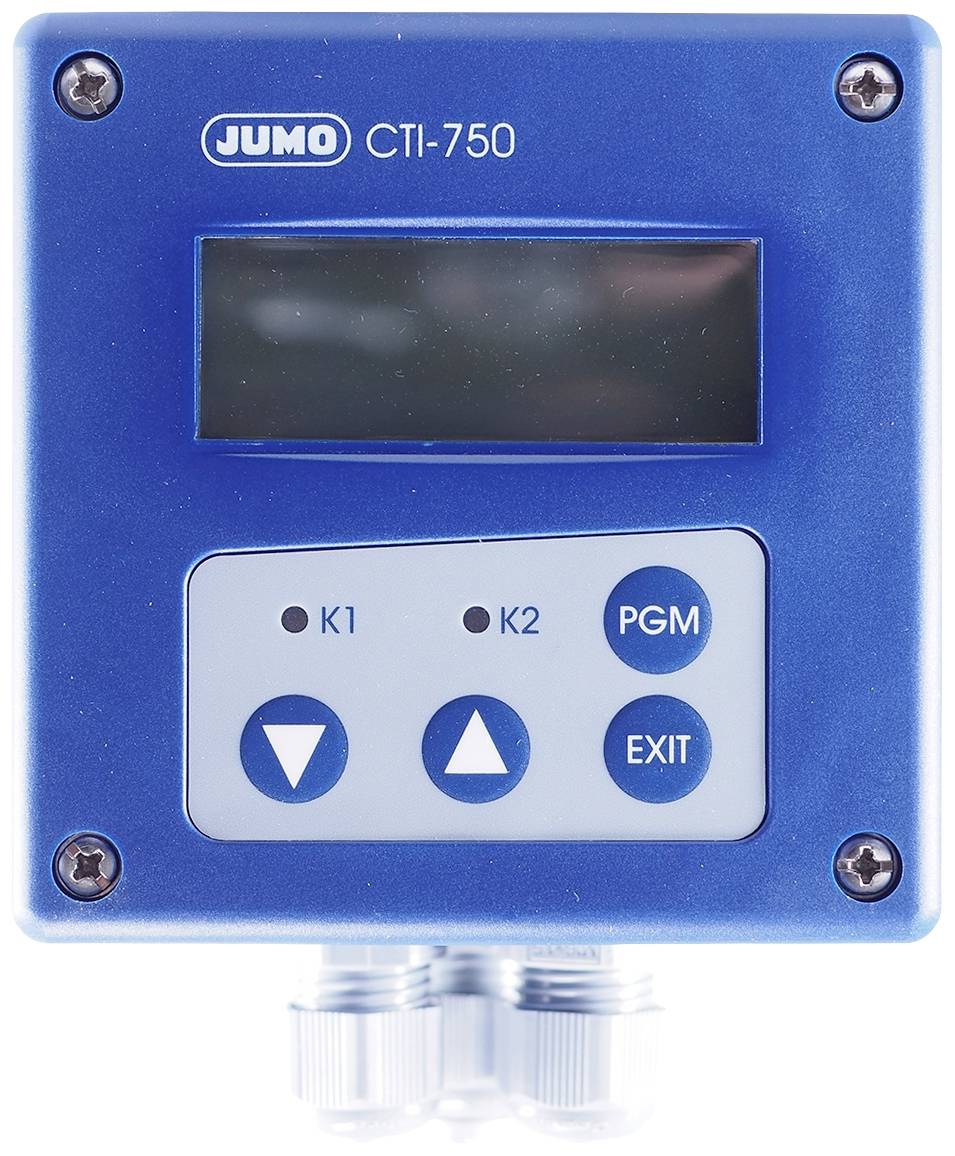

This inductive conductivity/concentration and temperature transmitter with switch contacts and permanently mounted sensor has two freely programmable analogue outputs for conductivity and temperature as well as two potential-free contacts. Up to four measurement ranges and temperature coefficients can be activated. The temperature compensation can be made linear, natural water or as separate characteristic (learning function). The device also has a desalination control. The device can be operated via display and keyboard as well as via setup software. As a process connection, the device has a hygienic sensor made of PEEK material with a DN50 pipe fitting, DIN 11851 (MK DN50, milk cone). Power is supplied via a power supply unit with DC19...31V.
