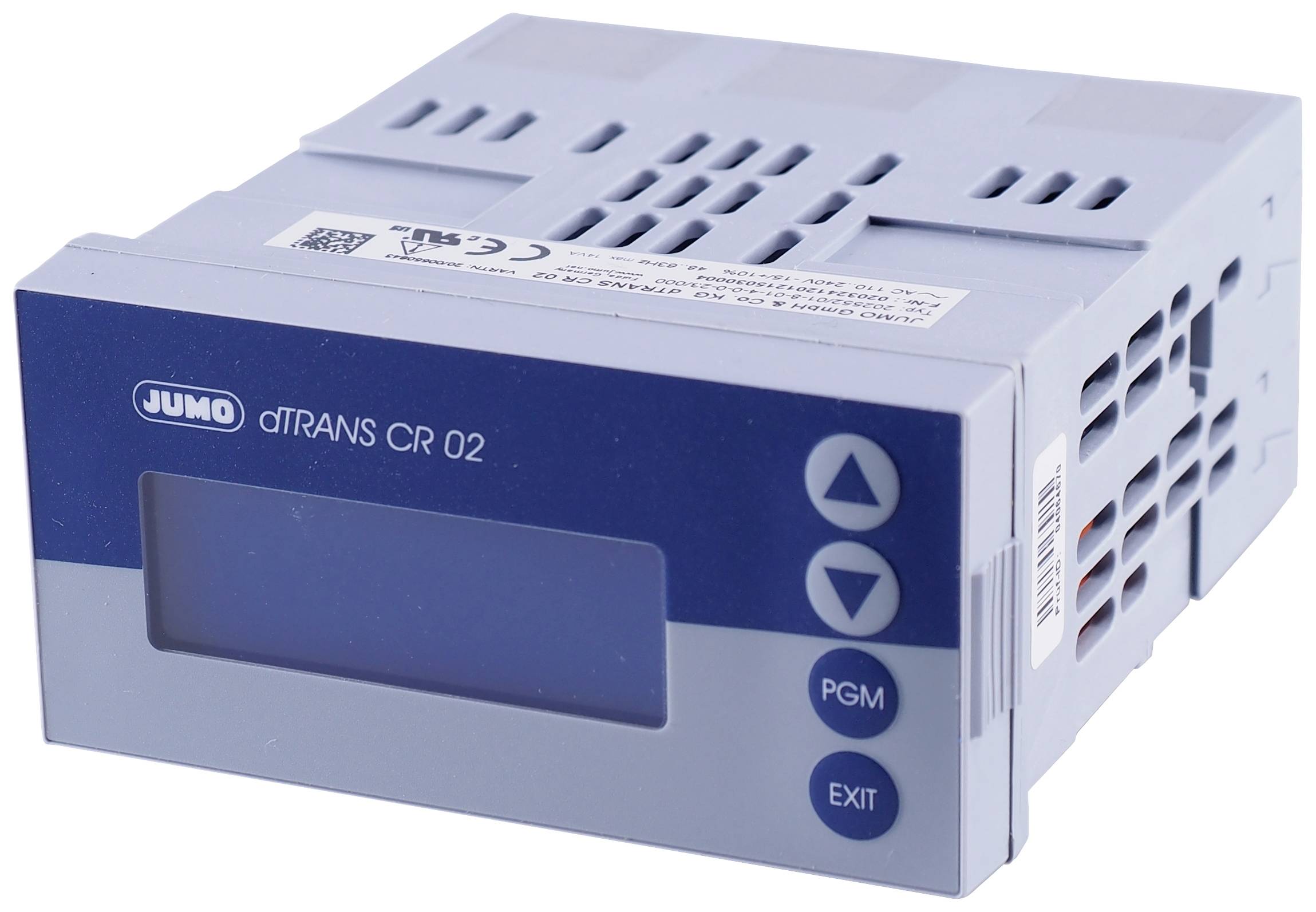

Jumo Transducer/regulator for unit signals and temperature 00550842

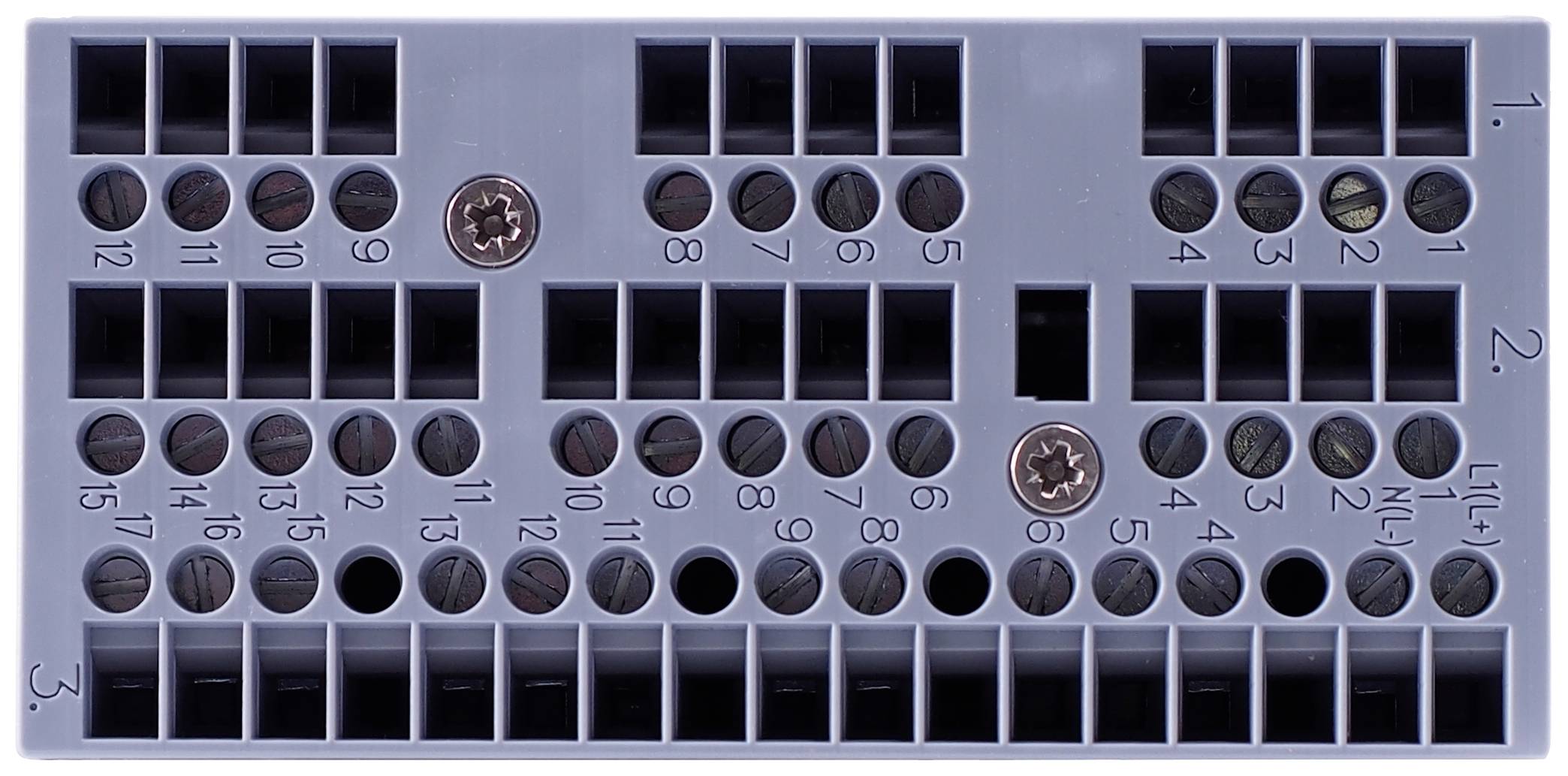

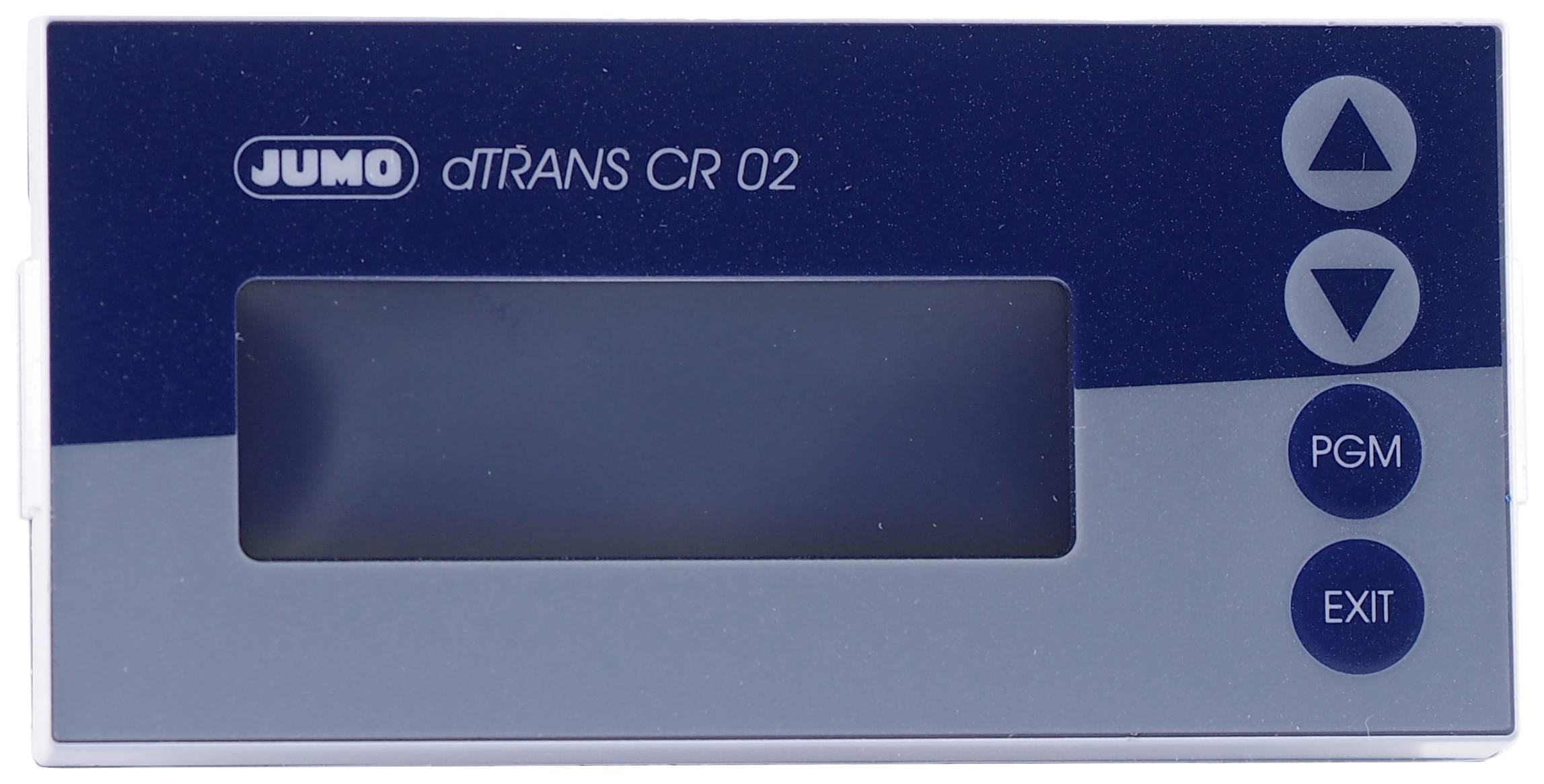

This transmitter/controller for unit signals is a compact modular device, which can solve a wide variety of tasks thanks to its flexibility with 3 slots for optional boards. At the main input, the resistance thermometers Pt100 or Pt1000, NTC/ PTC or unit signals 0(4) to 20 mA, or 0 to 10 V can be connected. The two binary inputs can act as initiators for actions (e.g. B. HOLD, keypad lock). The high-contrast graphic display allows the representation of the input signals with numbers, for example, or as a bar graph. The display of the parameters in plain text makes the operation easy to understand and safe. The device can be used as a two-point, three-point, three-point stepping controller or as a constant controller. All controller outputs can be configured to P, PI, PD or PID behavior. The controller software also contains a parameter set changeover and a math module. The power supply is via a switched-mode power supply AC 110..240V +10/-15% 48..63Hz. The electrical connection is made at the rear via screw terminals.
