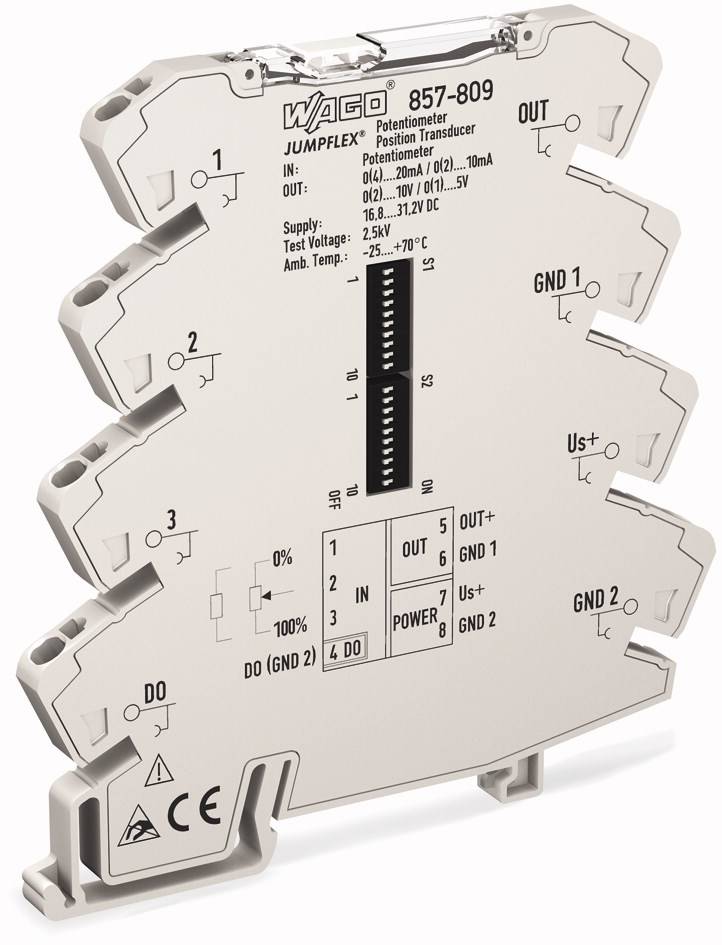

JUMPFLEX ® measuring transducer; potentiometer position transducer WAGO 857-809 857-809 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
857-809
Dim
(L x W x H) 96 x 6 x 96 mm
Output (voltage)
0 V ...5 V. 0 V ...10 V. 1 V ...5 V. 2 V ...10 V
Output (current)
0 mA ...10 mA. 0 mA ...20 mA. 4 mA ...20 mA
Datasheet (PDF)
Technical specifications
- Type
857-809
- Product type
Transducer
- Dim
(L x W x H) 96 x 6 x 96 mm
- Output (voltage)
0 V ...5 V. 0 V ...10 V. 1 V ...5 V. 2 V ...10 V
- Output (current)
0 mA ...10 mA. 0 mA ...20 mA. 4 mA ...20 mA
- Load
≤ 600 Ω (I-Output) ≥2 kΩ (U-output)
- Content
1 pc(s)

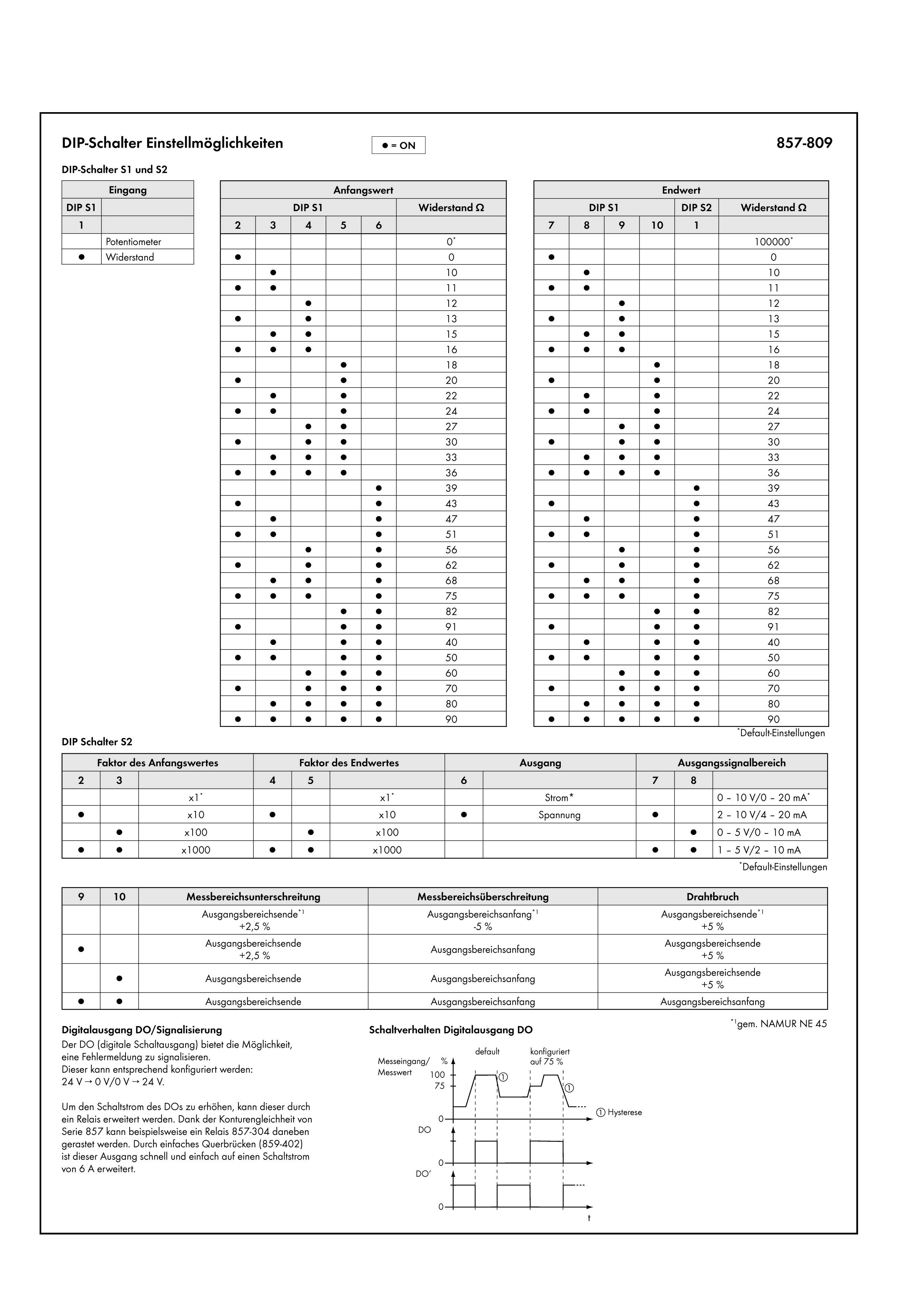

- Configuration
DIP switch
- Width
6 mm
- Height
96 mm
- Length
96 mm
- Current consumption
≤ 40 mA
- Supply voltage (num.)
24 V
- Operating voltage U(B)
DC 16.8 ...31.2V
- Input signal
Potentiometer and resistors*
- Supply voltage
24 V DC
Snap mounting support rail
6
96 mm
94 mm
-25-70 °C

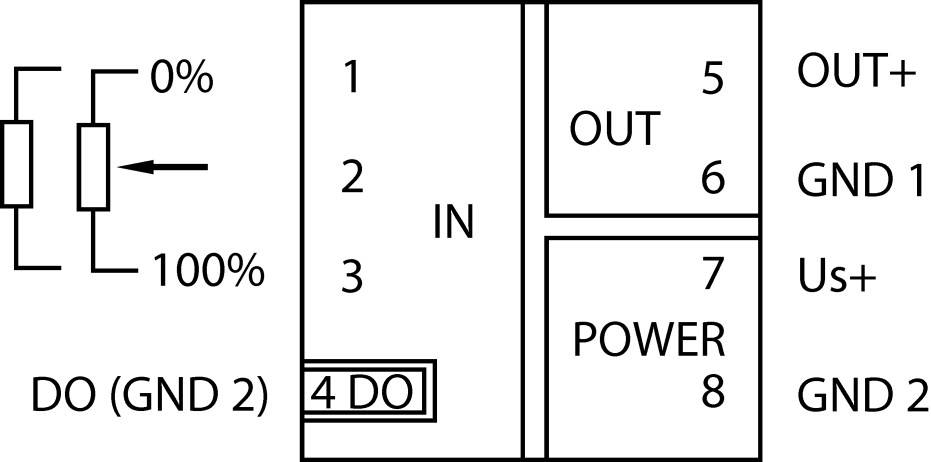

Spring clamp connection
IP20
- UKCA
not relevant
