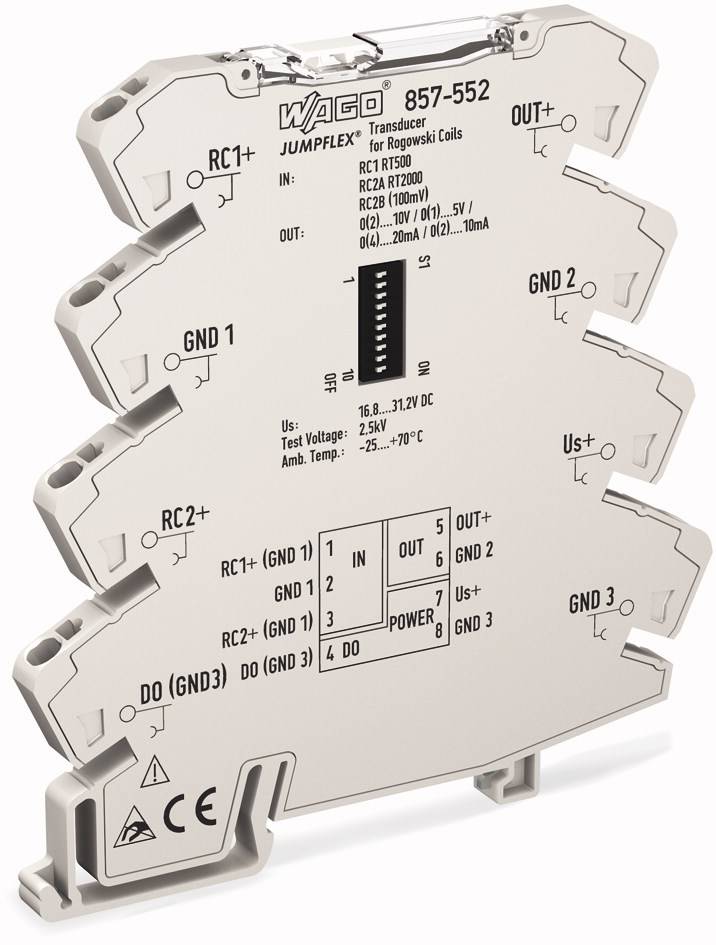

JUMPFLEX ® measuring transducer; Rogowski measuring transducer WAGO 857-552 857-552 1 pc(s)
EAN:
Part number:
Item no:
Product type
Transducer
Type
857-552
Dim
(L x W) 96 mm x 6 mm
Load
Current ≤ 600 Ω, voltage ≥ 1000 Ω
Content
1 pc(s)

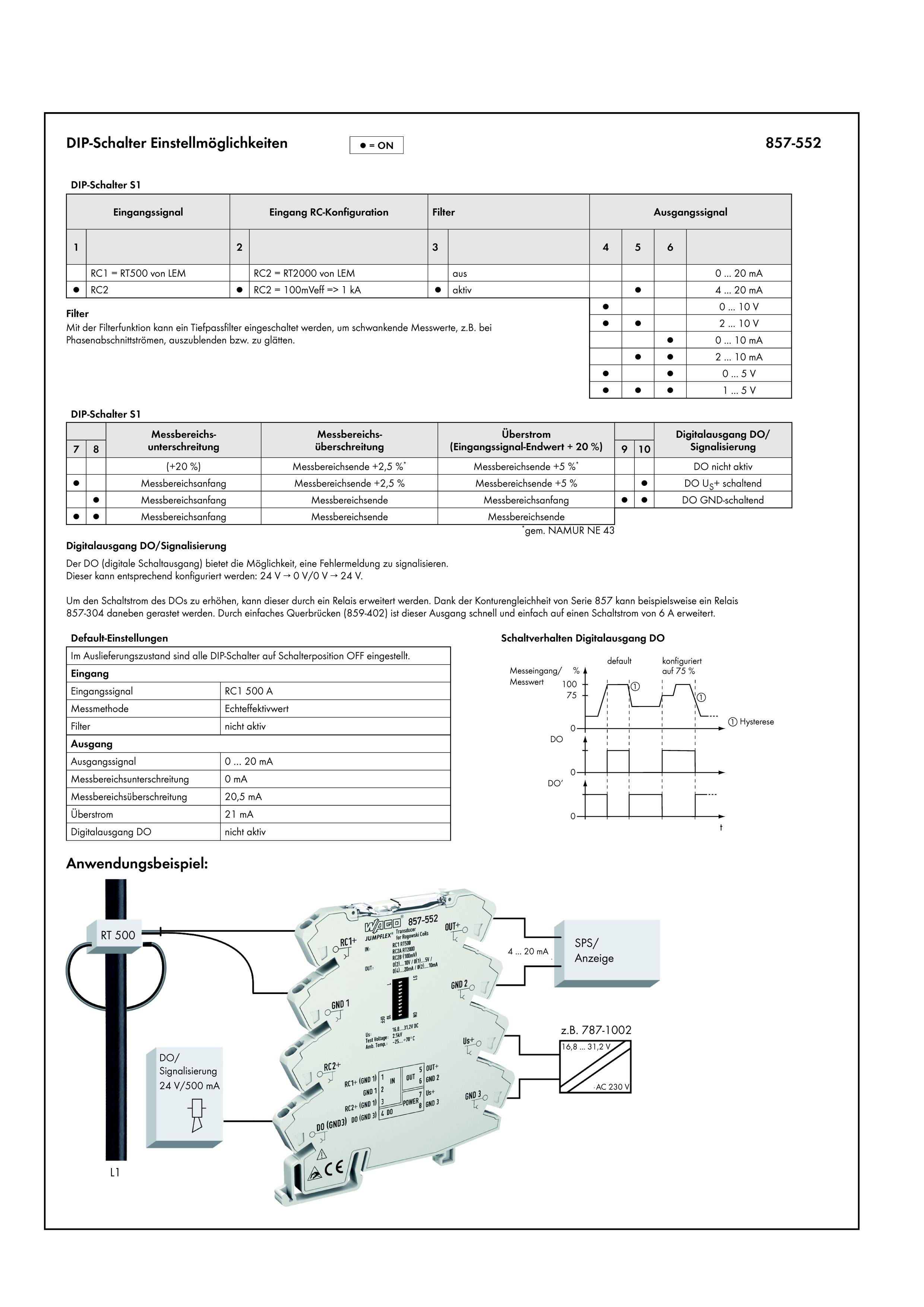

Datasheet (PDF)
Technical specifications
- Type
857-552
- Product type
Transducer
- Dim
(L x W) 96 mm x 6 mm
- Load
Current ≤ 600 Ω, voltage ≥ 1000 Ω
- Content
1 pc(s)
- Width
6 mm
- Length
96 mm
- Current consumption
≤ 40 mA
- Setting
Setting time (T 10-90) max. 60 ms
- Supply voltage
24 V DC
DIN rail (top hat rail) 35 mm
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 640965 JUMPFLEX ® measuring transducer; Rogowski measuring transducer WAGO 857-552 857-552 1 pc(s)
User & Safety Instructions
User & Safety Instructions 640965 JUMPFLEX ® measuring transducer; Rogowski measuring transducer WAGO 857-552 857-552 1 pc(s)
