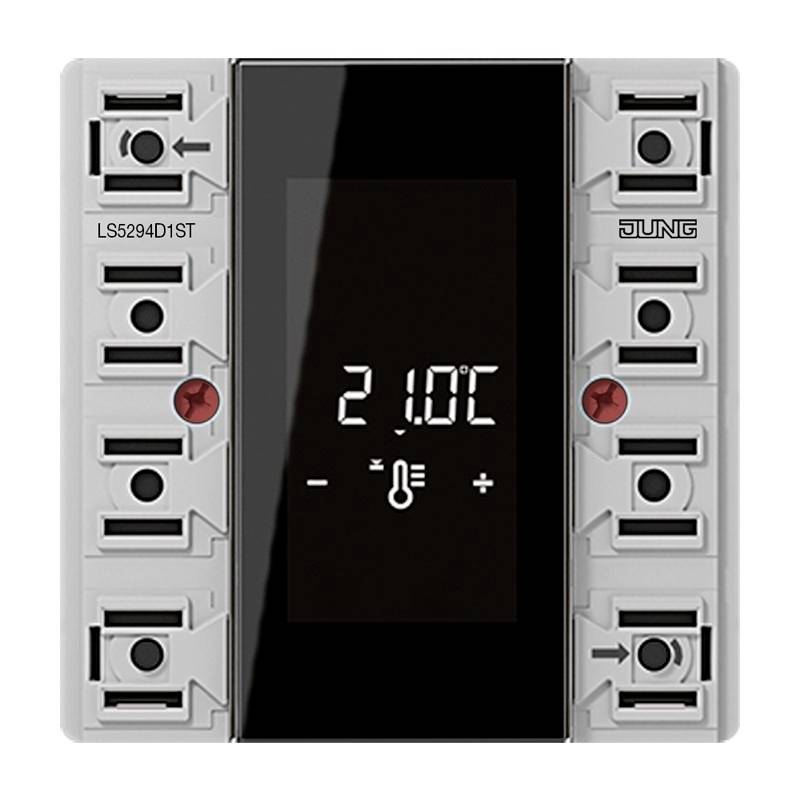

Jung LS5294D1ST Control unit LS 5294 D1 ST

For key set 4-way, item no.: ..504 TSA ..  Can be extended in the LS series with a touch sensor expansion module part no.: LS 509.. TSEM intended use Operating consumers, e.g. light on/off, dimming, blinds up/down, brightness values, Temperatures, retrieving and saving of light scenes etc. Measuring and controlling the room temperature Mounting in device socket with dimensions according to DIN 49073 Product characteristics All buttons can be assigned with key sensor functions or functions for the controller control. KNX Medium: TP 256 Backlit LC display One or two functions per key Completion with key set Eight status LEDs red, green or blue Brightness of status LEDs and LCD adjustable Integrated bus coupler Connection Push button sensor expansion module Integrated room temperature sensor Remote sensor (Art.-No.: FF NTC) can be connected Room temperature control with setpoint specification Two internal independent controllers for the control of two independent rooms in connection with expansion modules Display of room or target temperature (°C or °F) Display of the outdoor temperature with external sensor, e.g. weather station display of time, in connection with KNX timer (in menu level) Key function or rocker function Lock function: Lock or function switching of all or individual key functions Alarm function, optionally with acknowledgment by pressing any key KNX Data Secure compatible from ETS 5.7.7 or from ETS 6.3.0 can be updated with ETS Service-APP
