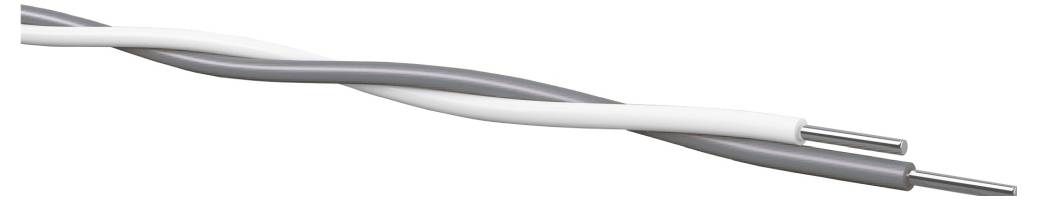

Kabeltronik 170205017 Jumper wire Yv 2 x 0.2 mm² White, Grey 250 m
Part number:
Item no:
Product type
Jumper wire
No. of leads
2 x
Cross section (each core)
0.2 mm²
Cable type
Yv
Content
250 m
Datasheet (PDF)
Technical specifications
- Type: Insulated single wires
- Weight kg/km: 5.00 kg/km.
- CU weight kg/km: 4.00 kg/km.
- Item group: Yv stranded
- Wire Ø 0.9 mm
- Bending radius quiet: Min. 10 x
- Bending radius, moving: Min. 15 x
- Use: Switch or shunting wire for communications technology, in telecommunication systems as well as all areas of general wiring technology.
- Product type
Jumper wire
- No. of leads
2 x
- Content
250 m
- Cross section (each core)
0.2 mm²
- Insulation material
PVC
- Cable type
Yv
- Nominal voltage
500 V
- Halogen-free
No
- Manufacturer part #
170205017
- Factory colour
White
Grey
- Core layout
0.5 mm
- Material (details)
Cu-wire, VZ.
- Certification marks
none
- Test voltage
1200 V
- Cross section
2 x 0.2 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
Yv 2x0,5/0,9 mm ws-gr
Documents & Downloads
Datasheet
Datasheet 3805140 Kabeltronik 170205017 Jumper wire Yv 2 x 0.2 mm² White, Grey 250 m
User & Safety Instructions
User & Safety Instructions 3805140 Kabeltronik 170205017 Jumper wire Yv 2 x 0.2 mm² White, Grey 250 m
Description
Jumper or shunting wire for communications technology, in telecommunication systems as well as all areas of general wiring technology.
