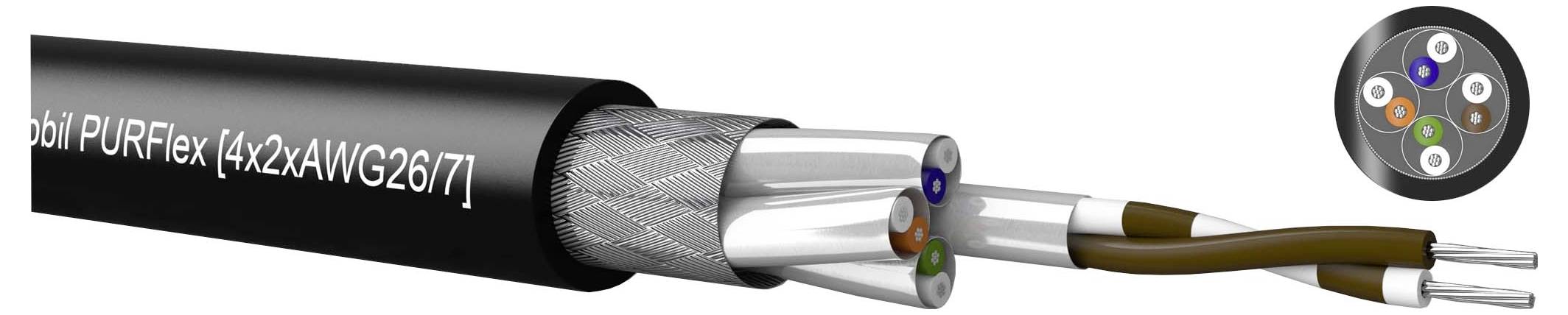

Kabeltronik 532826700 Network cable CAT 7 S/FTP 8 x 0.14 mm² Black 100 m
Part number:
Item no:
Product type
Network cable
Specification
CAT 7
Shielding
S/FTP
Cable type
S/FTP
No. of leads
8 x
Datasheet (PDF)
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 52.00 kg/km.
- CU weight kg/km: 25.00 kg/km.
- Product group name: CAT 7 Mobile PURFlex S/FTP
- Bending radius quiet: Min. 7 x
- Bending radius, moving: Min. 12 x
- Usage: Very flexible data cables for local networks.
- Number of pairs: 4
- Wire diameter 1.03 mm
- Element screen: Aluminium composite film
- Overall shield: Copper braid, VZ.
- Conductor material: Cu-strand, VZ.
- Note: For networks up to 600 MHz
- Conductor construction 7 x 0.16 mm
- Sheath material: PUR
- Product type
Network cable
CAT 7
S/FTP
- Cable type
S/FTP
- No. of leads
8 x
- Cross section (each core)
0.14 mm²
- Cross section
8 x 0.14 mm²
- Cable features
Shielded
PUR coating
- Outside Ø
7.4 mm
- Factory colour
Black
- Content
100 m
- AWG max.
26
- Manufacturer part #
532826700
- Type
CAT 7 Mobil PURFlex S/FTP 600MHz
- Insulation material
PE foam
- Min. temperature range (flexible installation)
-20 °C
- Max. temperature range (flexible installation)
+75 °C
- Min. temperature range (fixed installation)
-30 °C
- Max. temperature range (fixed installation)
+75 °C
- Halogen-free
Yes
Documents & Downloads
Datasheet
Datasheet 3804747 Kabeltronik 532826700 Network cable CAT 7 S/FTP 8 x 0.14 mm² Black 100 m
User & Safety Instructions
User & Safety Instructions 3804747 Kabeltronik 532826700 Network cable CAT 7 S/FTP 8 x 0.14 mm² Black 100 m
Description
Very flexible data cable for local networks.
This text is machine translated.
This text is machine translated.
