Name: Kabeltronik 830401500-100 Multicore cable Computronic C11 2 x 2 x 0.15 mm² + 1 x 2 x 0.15 mm² Black 100 m
Brand: Kabeltronik
SKU: 1304483

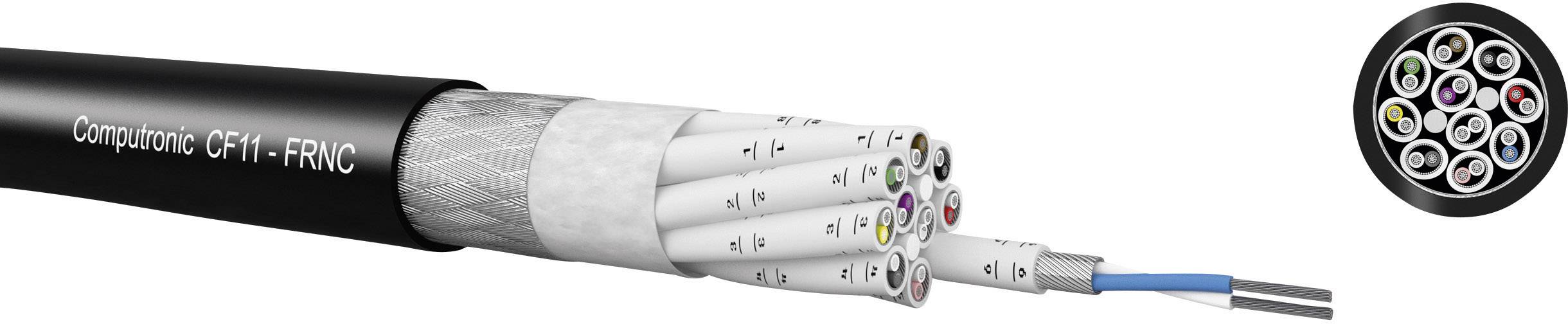

Cable of type 'CF11-FRNC' with multiple colour cables in the cross-section. Suitable for flexible applications, shown with protective sheathing.

Image similar

Product type

Multicore cable

Cable type

Computronic C11

No. of leads

4 x

Cross section (each core)

0.15 mm²

No. of leads (part 2)

2 x

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Compugroup Tronic C11 modulation analog cable

Technical specifications

Product type: Multicore cable

Cable type: Computronic C11

No. of leads: 4 x

Cross section (each core): 0.15 mm²

No. of leads (part 2): 2 x

Cross section (each core) (part 2): 0.15 mm²

Cross section: 2 x 2 x 0.15 mm² + 1 x 2 x 0.15 mm²

Cable features: Shielded
Cold-resistant
Scratch-resistant
Non-adhesive
Flexible
Torsionally stiff

Outside Ø: 6.8 mm

Factory colour: Black

Content: 100 m

Bend radius (no. of ODs for fixed installation): 10

Bend radius (no. of ODs for flexible installation): 10

Packaged: Yes

Sold per metre: No

Halogen-free: Yes

Shielded: Yes

Manufacturer part #: 830401500-100

Insulation material: PE

Min. temperature range (fixed installation): -40 °C

Max. temperature range (fixed installation): +90 °C

Min. temperature range (flexible installation): -30 °C

Max. temperature range (flexible installation): +80 °C

Type: 830401500

Max. length sold by the metre: 100 m

Twisted pair cabling (part 1): Yes (1)

Twisted pair cabling (yes/no): Yes (1)

Documents & Downloads

Datasheet

Datasheet 1304483 Kabeltronik 830401500-100 Multicore cable Computronic C11 2 x 2 x 0.15 mm² + 1 x 2 x 0.15 mm² Black 100 m

User & Safety Instructions

User & Safety Instructions 1304483 Kabeltronik 830401500-100 Multicore cable Computronic C11 2 x 2 x 0.15 mm² + 1 x 2 x 0.15 mm² Black 100 m

Description

Absolutely high-quality, halogen-free multi-core specially designed for professional outdoor use in U-vehicles. The composition of the materials used and
The exact workmanship guarantee the properties:
Cold temperatures up to -40 °C · Absolutely notch-resistant · Adhesion free · Lower outside measurement · Flexible · Halogen-free · Very long life · Torsion-free.

This text is machine translated.
