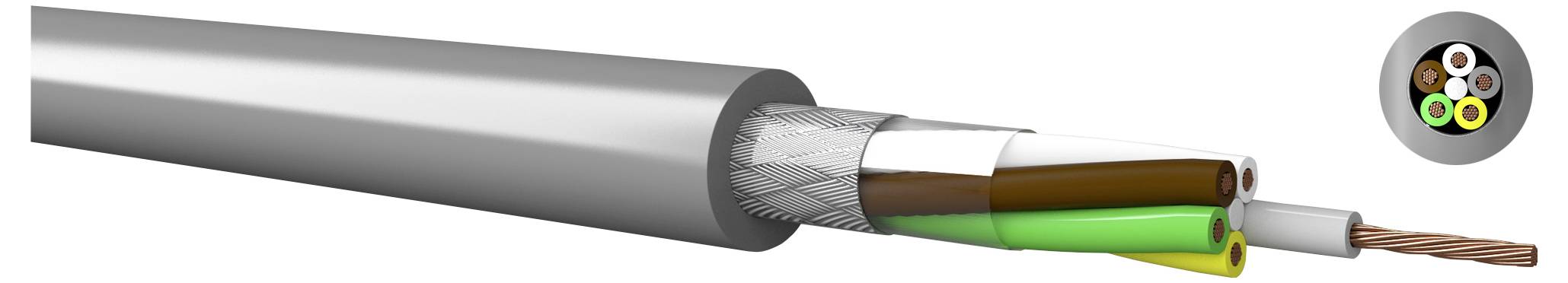

Kabeltronik LiYCY Control lead 16 x 0.14 mm² Grey 021601400 100 m
Part number:
Item no:
Product type
Control lead
No. of leads
16 x
Cross section (each core)
0.14 mm²
Cable type
LiYCY
Outside Ø
7.2 mm
Datasheet (PDF)
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 87.00 kg/km.
- CU weight kg/km: 42.70 kg/km.
- Use: In measurement, signal, control and regulation technology and in mechanical engineering.
- Wire diameter 1.05 mm
- Product type
Control lead
- No. of leads
16 x
- Content
100 m
- Cross section (each core)
0.14 mm²
- Cable features
Shielded
- Cable type
LiYCY
- Outside Ø
7.2 mm
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
15
- Halogen-free
No
- Manufacturer part #
021601400
- Factory colour
Grey
- Insulation material
PVC
- Insulation
PVC
- Core layout
18 x 0.10 mm
- Material (details)
Cu-wire, BLK
- Nominal voltage
350 V
- Certification marks
None
- Test voltage
800 V
- Cross section
16 x 0.14 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYCY 16 x 0,14 qmm
Documents & Downloads
Datasheet
Datasheet 3805058 Kabeltronik LiYCY Control lead 16 x 0.14 mm² Grey 021601400 100 m
User & Safety Instructions
User & Safety Instructions 3805058 Kabeltronik LiYCY Control lead 16 x 0.14 mm² Grey 021601400 100 m
Description
For use in measurement, signal, control and regulation systems and mechanical engineering.
