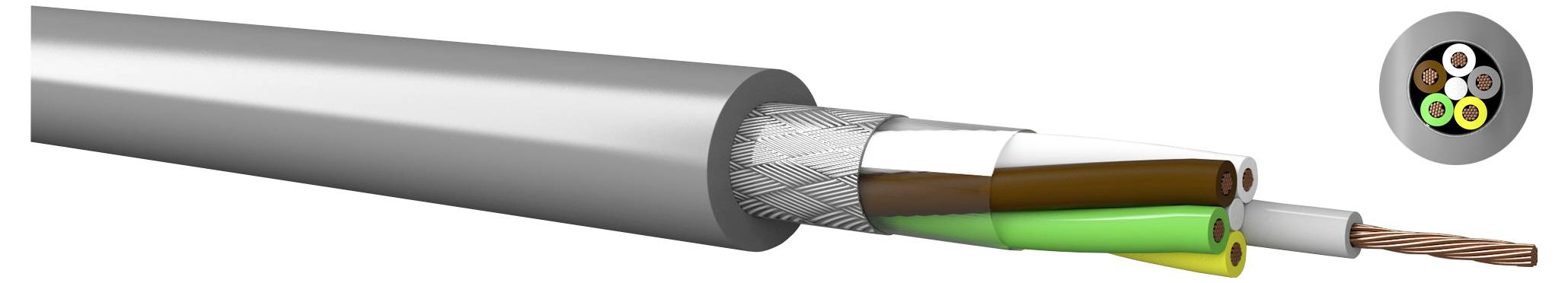

Kabeltronik LiYCY Control lead 5 x 0.5 mm² Grey 020505000 100 m
Part number:
Item no:
Product type
Control lead
No. of leads
5 x
Cross section (each core)
0.5 mm²
Cable type
LiYCY
Outside Ø
6.7 mm
Datasheet (PDF)
Technical specifications
- Type: Multi-conductor cables
- Weight kg/km: 83.00 kg/km.
- CU weight kg/km: 57.00 kg/km.
- Use: In measurement, signal, control and regulation technology and in mechanical engineering.
- Wire diameter 1.8 mm
- Product type
Control lead
- No. of leads
5 x
- Content
100 m
- Cross section (each core)
0.5 mm²
- Cable features
Shielded
- Cable type
LiYCY
- Outside Ø
6.7 mm
- Bend radius (no. of ODs for fixed installation)
10
- Bend radius (no. of ODs for flexible installation)
15
- Halogen-free
No
- Manufacturer part #
020505000
- Factory colour
Grey
- Insulation material
PVC
- Insulation
PVC
- Core layout
16 x 0.20 mm
- Material (details)
Cu-wire, BLK
- Nominal voltage
500 V
- Certification marks
None
- Test voltage
1200 V
- Cross section
5 x 0.5 mm²
- Max. temperature range (flexible installation)
+70 °C
- Min. temperature range (flexible installation)
-5 °C
- Max. temperature range (fixed installation)
+70 °C
- Min. temperature range (fixed installation)
-30 °C
- Type
LiYCY 5 x 0,50 qmm
Documents & Downloads
Datasheet
Datasheet 3805060 Kabeltronik LiYCY Control lead 5 x 0.5 mm² Grey 020505000 100 m
User & Safety Instructions
User & Safety Instructions 3805060 Kabeltronik LiYCY Control lead 5 x 0.5 mm² Grey 020505000 100 m
Description
For use in measurement, signal, control and regulation systems and mechanical engineering.
