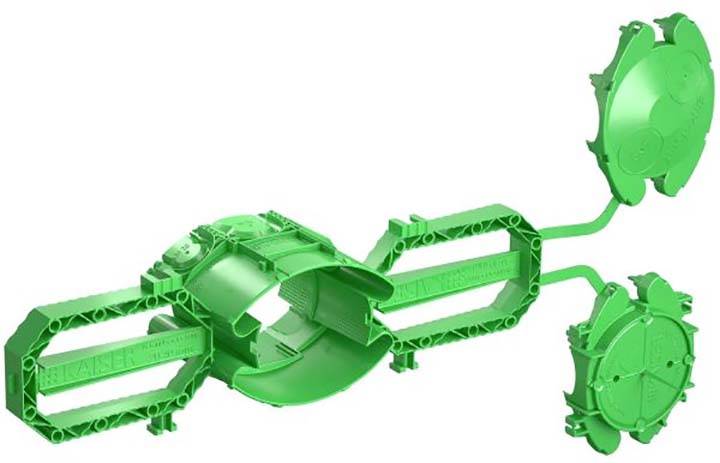

Kaiser Elektro 1211-01 Lining box Halogen-free (Ø x L) 60 mm x 290 mm 25 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Prefix junction box, without functional retention
- Device junction box for attaching to reinforcementCan be used for concrete ceilings of 20 - 60 mmPre-fixing through Prefix®-mounting technology1-piece with molded front and rear part
Technical specifications
- Mounting hole dia. 60 mm.Recess openings for pipes DIN EN Ø 25/32 mm: 2Recess openings for pipes DIN EN Ø 20/25 mm: 4Markings in the box bottom for pipes DIN EN up to Ø 25 mm: 2Markings for lines and cables up to Ø 16 mm: 8
- Product type
Lining box
- Features
Halogen-free
- Mounting type
Concrete
- Max. fire resistance
650 °C
- Content
25 pc(s)
- Factory colour
Green
- Dim
(Ø x L) 60 mm x 290 mm
- Length
290 mm
- Width
78 mm
- Depth
91 mm
- (Ø)
60 mm
Documents & Downloads
Datasheet
Datasheet 2754715 Kaiser Elektro 1211-01 Lining box Halogen-free (Ø x L) 60 mm x 290 mm 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2754715 Kaiser Elektro 1211-01 Lining box Halogen-free (Ø x L) 60 mm x 290 mm 25 pc(s)
Description
Kaiser 130 device socket UP concrete Ø 60 mm Kst. Concrete junction box 60 mm prefix, without functional retentionThe new Prefix® concrete construction boxes have, in addition to the proven product properties such as the side mounting clamps for mounting on the reinforcement, the mounting clamps for pre-fixing the articles and the pronounced shaft profile for an exact and safe fit, now also with innovative tube entries, Introduction options in the rear of the box as well as via separators that can be subsequently broken off for connecting devices in combinations.
This text is machine translated.
This text is machine translated.
Features
- Standard combination spacing 71 mmWith 4 screw domes and 2 spreading claw fieldsOrder No. 1211-01 replaces Art.-No. 1211-61Quick and easy installation for counter-forming, without support element and counter-bearingClearance spacers to the edge formwork ensure a complete re-flow of the concrete and enable installation of concrete in passageways and edgesCan be used for concrete covering from 20 - 60 mmInnovative pipe inserts Ø 25/32 mm and Ø 20/25 mm, for a fast processing on the construction siteImplementation possibility up to Ø 25 mm in the rear canSimple assembly by hand forceSturdy signal bristle and powerful coloring for easy re-locating in the concrete surfaceLarge installation and free spaceComfortable installation of pre-wired mounting devices with multiple combinations by later removable separating strip.
Scope of delivery
- 25 x junction box.
