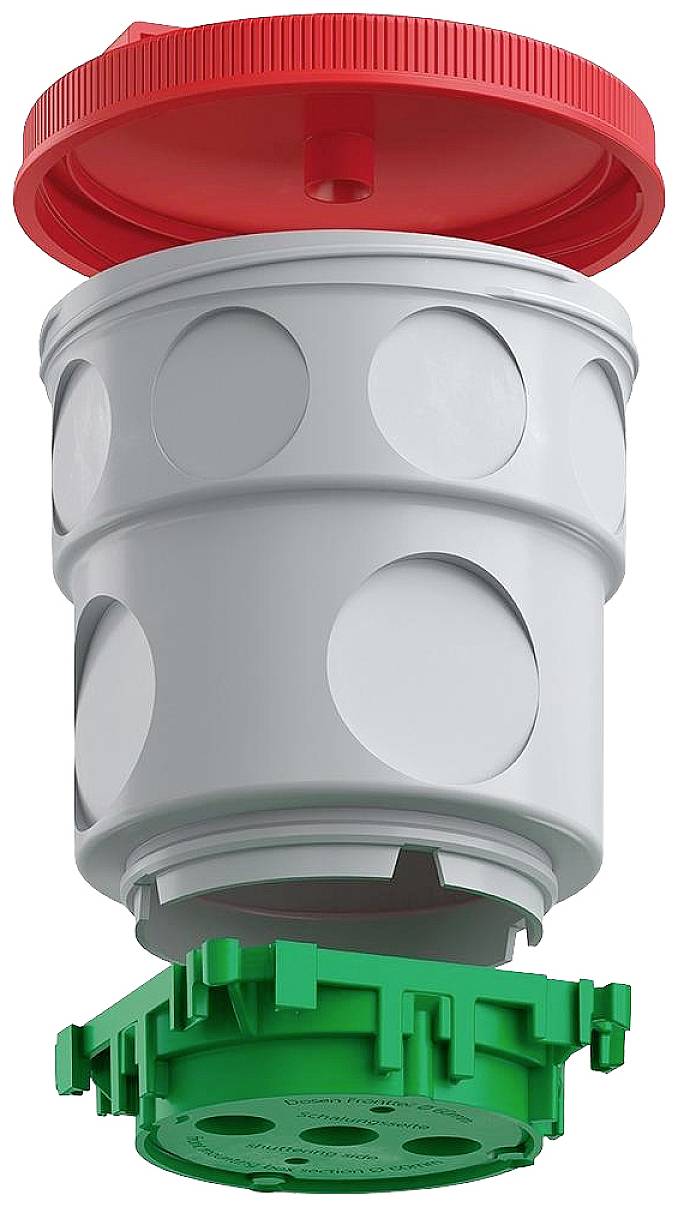

Kaiser Elektro 1227-50 Lining box Halogen-free (Ø x H) 102 mm x 99.0000 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
KAISER connection box cement
- Concrete construction panel ceiling-large box 1153-part, outlet opening Ø 60 mmWith metal nut M5
Technical specifications
- Outlet opening Ø 60 mmMarkings for cable and DIN EN pipes up to Ø 25 mm: 8Markings for cable and DIN EN pipes up to Ø 32 mm: 4
- Product type
Lining box
- Features
Halogen-free
- Mounting type
Flush-mount
- Max. fire resistance
650 °C
- Content
1 pc(s)
- Dim
(Ø x H) 102 mm x 99.0000 mm
- Width
99.0000 mm
- Height
99.0000 mm
- Depth
115 mm
- (Ø)
102 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2731143 Kaiser Elektro 1227-50 Lining box Halogen-free (Ø x H) 102 mm x 99.0000 mm 1 pc(s)
Description
The new B¹ ceiling sockets simplify the installation on the ceiling formwork. The innovative pipe inserts allow the pipes to be easily inserted into several ceiling boxes arranged in an escape, without having to cut them during the installation work. Due to the higher pipe entries, additional sections of the reinforcing iron are unnecessary and the empty piping on the ceiling is accelerated.
This text is machine translated.
This text is machine translated.
Features
- Suitable for all types of switchingA flat front panel allows the smooth insertion of reinforcing iron on the ceiling formworkInnovative pipe inserts for a fast processing on the construction siteLarger installed and installation spaceMounting a lamp hook according to DIN EN 60670The proven KAISER color system ensures a quick check of the installationInstallation height 115 mm, with M5 metal nut for lamp hooks (min. hook length 115 mm + plaster thickness)With screw cover for pipes on the construction siteMax. Load of the light hooks in accordance with DIN EN 60670 release 100 N (10 kg).
