Kaiser Elektro 9192-91 Lining box (L x W x H) 240 x 140 x 144.0000 mm 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Kaiser connection box HW IP3X 240x140x72mm Kst
- For fitting of: DIN-connection pins, standard rails TS 35 for terminal blocks etc., terminal blocks up to 16 mm²With included drilling templateIncludes cover
Technical specifications
- Milling hole Ø 4 x 68 mmCut-out openings Ø 20 mm: : 8Outbreak openings Ø 25 mm:2Outbreak openings Ø 32 mm:2Cable entries for NYM and low-voltage cable lines: YesFor terminals up to: 16 mm²
- Product type
Lining box
- Mounting type
Cavity wall
- Max. fire resistance
850 °C
- Content
1 pc(s)
- Factory colour
White
Orange
- Dim
(L x W x H) 240 x 140 x 144.0000 mm
- Length
240 mm
- Width
140 mm
- Height
144.0000 mm
- Depth
72 mm
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2754662 Kaiser Elektro 9192-91 Lining box (L x W x H) 240 x 140 x 144.0000 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2754662 Kaiser Elektro 9192-91 Lining box (L x W x H) 240 x 140 x 144.0000 mm 1 pc(s)
Description

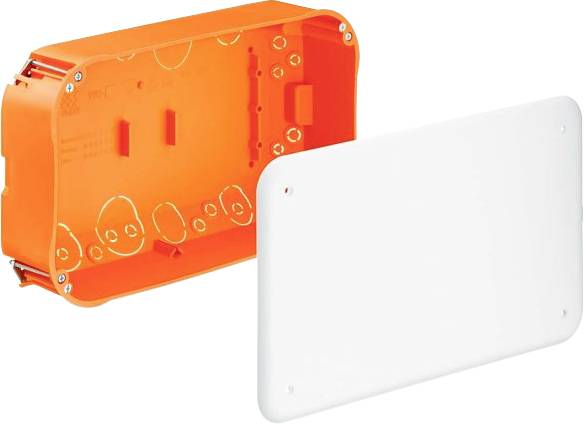

Hollow wall connection box, 240 x 140 x 72 mm, with cover, with device screws.
This text is machine translated.
This text is machine translated.
Features
- Cable entries for NYM and low-voltage cablesFor max. 3 circuits through dividers.
Scope of delivery
- 1 x junction box with cover.
