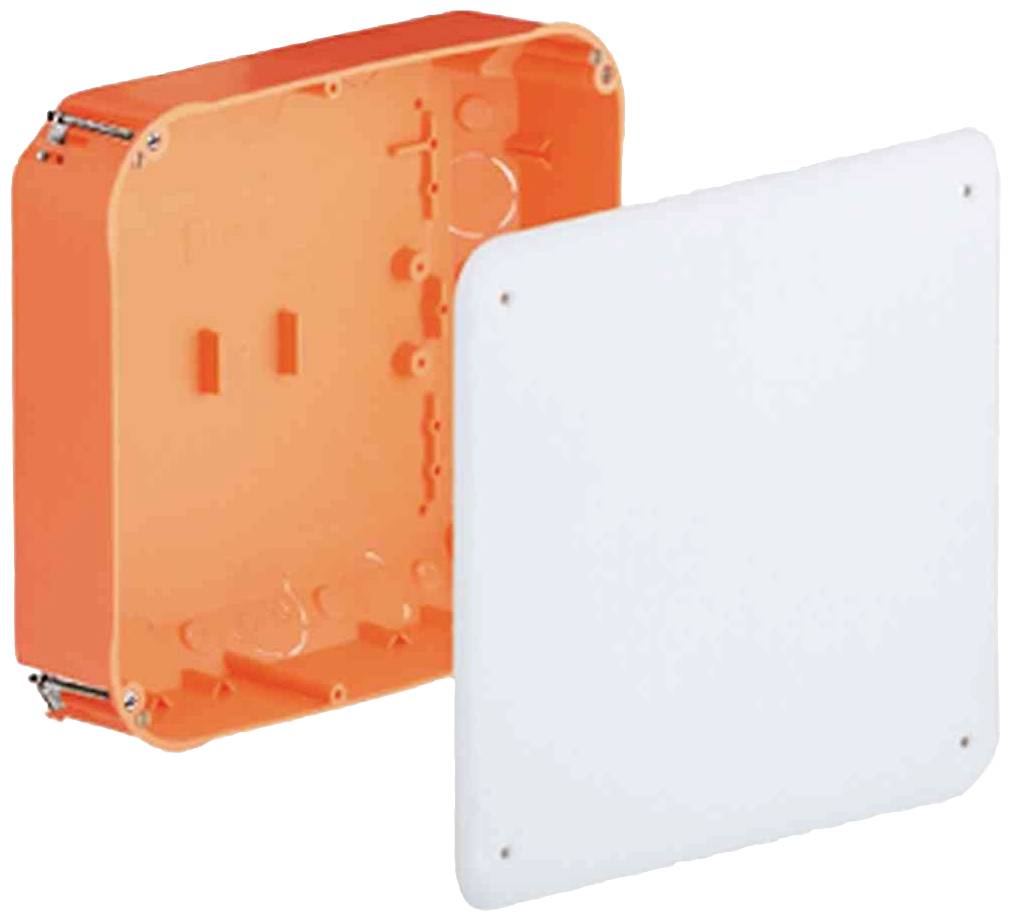

Kaiser Elektro 9197-91 Lining box (L x W x H) 235 x 205 x 72 mm 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
KAISER connection box HW
- Hollow wall connection box235 x 205 x 72 mm, with lidWith device screws
Technical specifications
- Milling hole Ø 4 x 68 mmOutbreak openings Ø 20 mm:8Outbreak openings Ø 25 mm:2Outbreak openings Ø 32 mm:2
- Product type
Lining box
- Mounting type
Flush-mount
- Content
1 pc(s)
- Dim
(L x W x H) 235 x 205 x 72 mm
- Length
235 mm
- Width
205 mm
- Height
72 mm
- Depth
72 mm
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2636432 Kaiser Elektro 9197-91 Lining box (L x W x H) 235 x 205 x 72 mm 1 pc(s)
Description
Connection boxes in all sizes and for almost all tasks. This program is characterized by its practical size of the housing as well as the building site appropriate, robust design of the housing.
This text is machine translated.
This text is machine translated.
Features
- As central junction boxes in star-shaped cable routingEasy rewiring with change of usage of the premisesWith partition walls for safe circuit separationAccurate creation of wall openings with the help of accompanying drill templateEnd cover with screw fastening for VDE-compliant installationFor fitting of: DIN-connection pins, standard rails TS 35 for terminal blocks etc., terminal blocks up to 16 mm²Cable entries for NYM and low-voltage cables.
