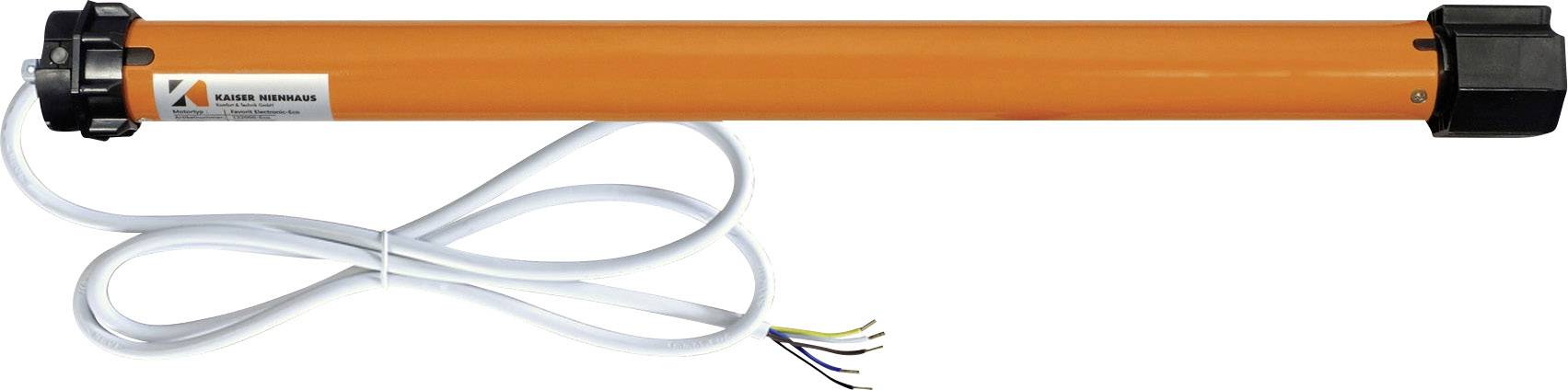

Kaiser Nienhaus Favorit Electronic Mercato 120020 Tubular motor 60 mm 20 Nm
EAN:
Part number:
Item no:
Total (€ 83.99 / piece)
€ 83.99
incl. VAT
14-day return policy included
Highlights & Details
Tubular motor Kaiser Nienhaus Favorit Electronic Mercato 120020 20 Nm

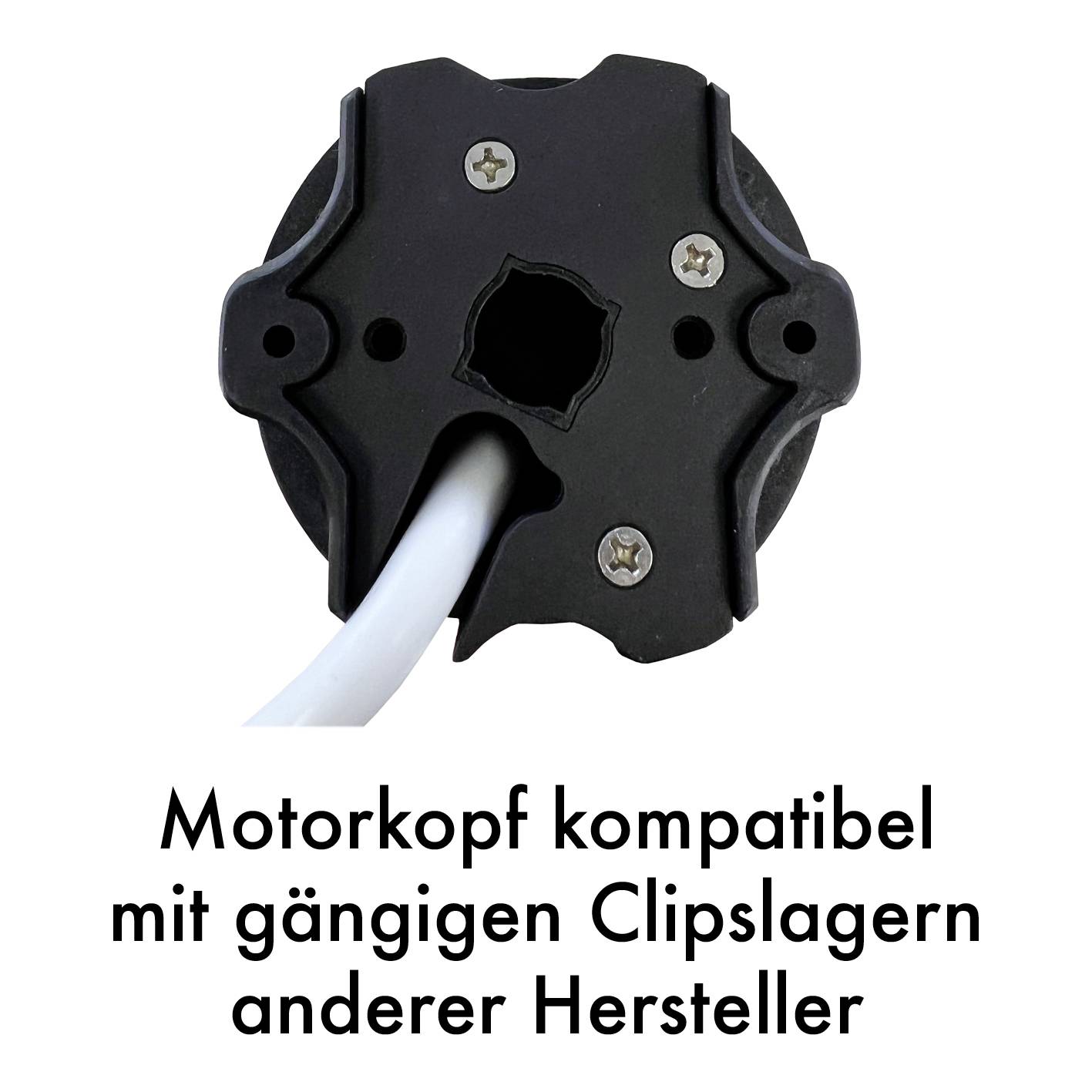

- Motor head suitable for common clip bearings of other manufacturers (Somfy)Setting of the end points via adjustment switch or automaticallyCan be activated obstacle detection and freeze protectionSmooth run
Technical specifications

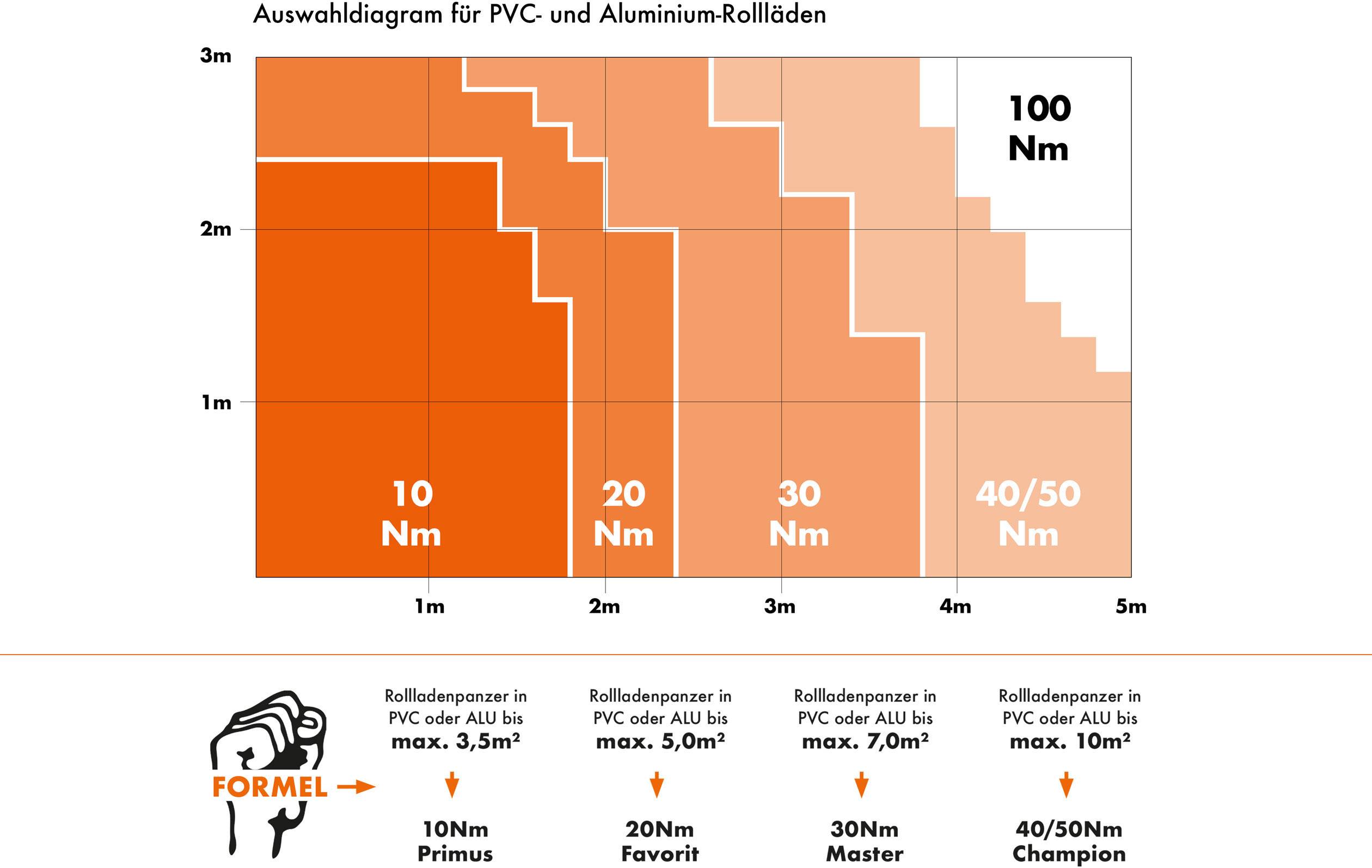

- Suitable for: PVC/ aluminum shutters up to 5.00 m²
- Product type
Tubular motor
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 60 mm x 645 mm
- Weight
2900 g
- Rotational speed
15 U/min
- Length
645 mm
- Max. current consumption
0.6 A
- Limit switched
electrical
- Obstacle detection
Yes
- Operating voltage
230 V AC
- (Ø)
60 mm
- Hub
Not required
- Torque
20 Nm
- Lead length
2 m
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 406071 Kaiser Nienhaus Favorit Electronic Mercato 120020 Tubular motor 60 mm 20 Nm
Information
Information 406071 Kaiser Nienhaus Favorit Electronic Mercato 120020 Tubular motor 60 mm 20 Nm
Description
Favorit electronic tubular motor Mercato can be very easily via justierschalter or can be set automatically. In addition to very quiet running properties, the motor, which can be activated obstacle detection, as well as an antifreeze protection. The electronic limit switch-off is with three degrees maximum overrun very precise and thus behangschonend.
This text is machine translated.
This text is machine translated.
Features
- 2 m connection cable
- Thermal cut-off.
- This text is machine translated.
Scope of delivery
- Favorit electronic tubular motor Mercato
- Adapter/catches SW60
- Motor
- User manual.
