An orange tubular motor with cable connection, suitable for automating roller shutters or awnings.

An orange tubular motor with cable connection, suitable for automating roller shutters or awnings.

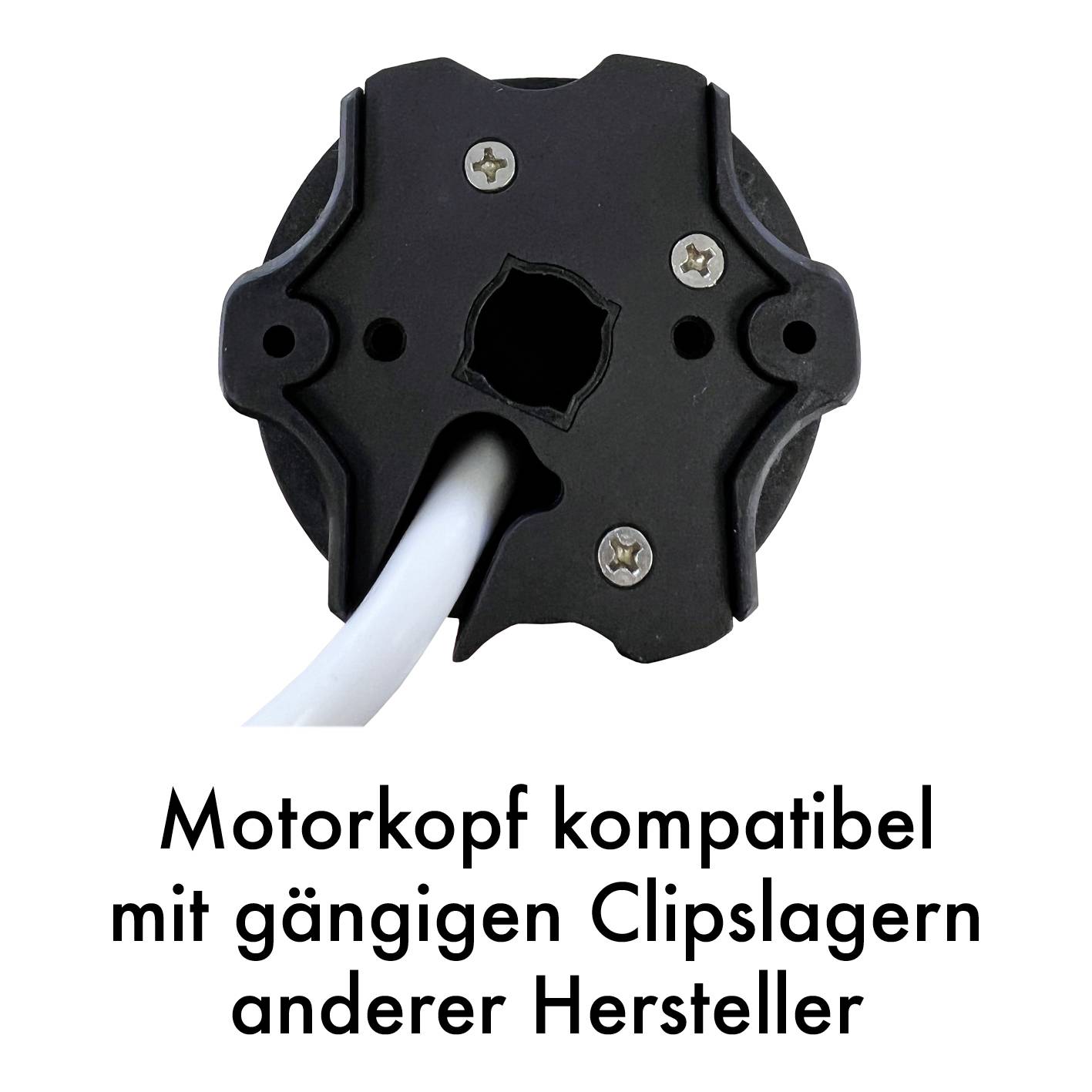

"Motor head compatible with common clip stores from other manufacturers." Black motor head with white cable, central opening.

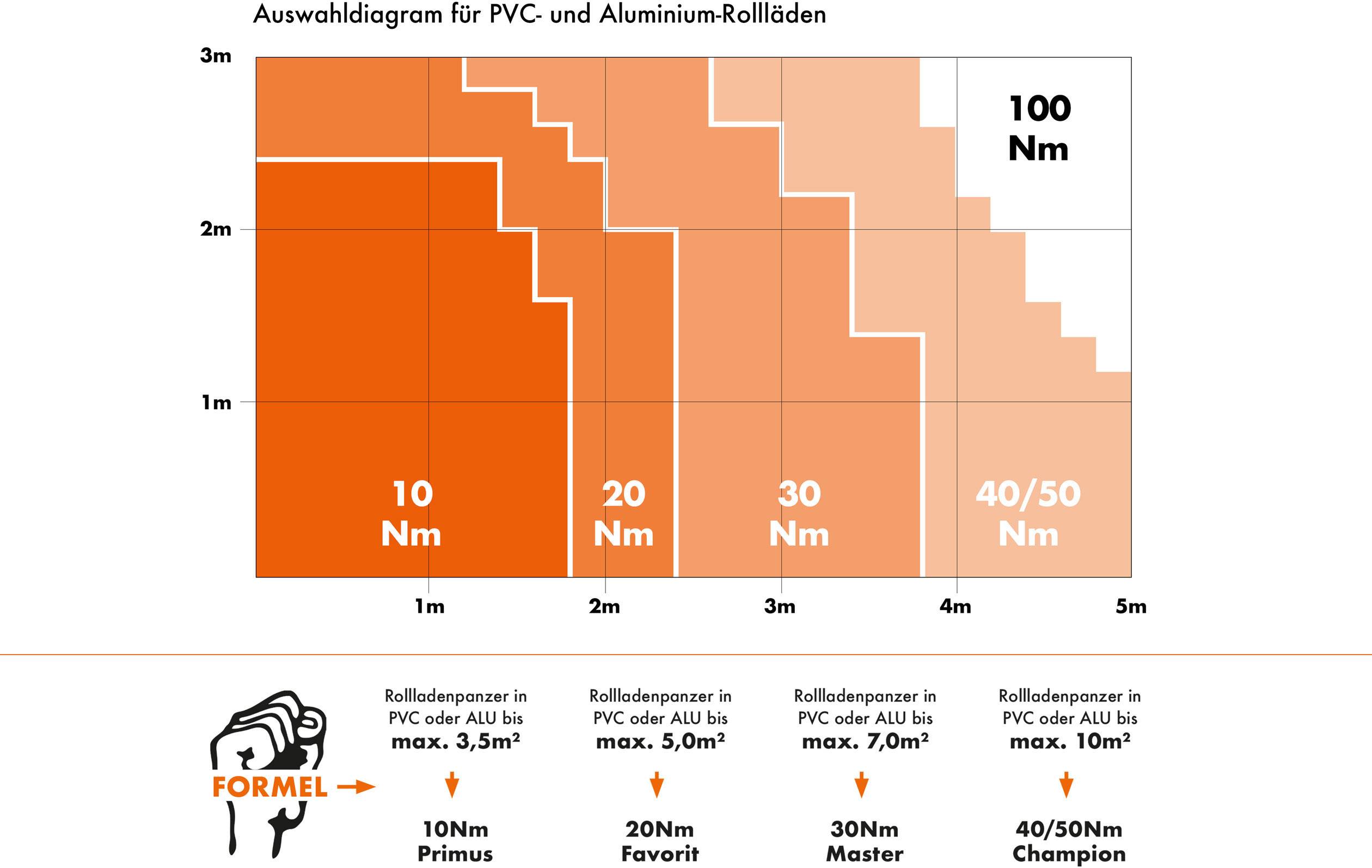

'Diagram for Selecting Motors for PVC and Aluminium Roller Shutters. Shows Torque Requirements in Nm Based on Length in Metres.'

'Exploded diagram of a roller shutter motor system with labels: Motor (orange), Shaft, Brackets, Connecting Element and Control Unit.'

1/4

Kaiser Nienhaus

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

6 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 87.99 / piece)

€ 87.99

incl. VAT

Only 6 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Tubular motor Kaiser Nienhaus Master Electronic Mercato 120030 30 Nm

Motor head suitable for common clip bearings of other manufacturers (Somfy)Setting of the end points via adjustment switch or automaticallyCan be activated obstacle detection and freeze protectionSmooth run

Technical specifications

Suitable for: PVC/ aluminum shutters up to 7.00 m²

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Dim: (Ø x L) 60 mm x 665 mm

Weight: 2900 g

Rotational speed: 15 U/min

Length: 665 mm

Max. current consumption: 0.6 A

Limit switched: electrical

Obstacle detection: Yes

Operating voltage: 230 V AC

(Ø): 60 mm

Hub: Not required

Torque: 30 Nm

Lead length: 2 m

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 406075 Kaiser Nienhaus Master Electronic Mercato 120030 Tubular motor 60 mm 30 Nm

Information

Information 406075 Kaiser Nienhaus Master Electronic Mercato 120030 Tubular motor 60 mm 30 Nm

Description

The Master Electronic tubular motor Mercato can be very easily via justierschalter or can be set automatically. In addition to very quiet running properties, the motor, which can be activated obstacle detection, as well as an antifreeze protection. The electronic limit switch-off is with three degrees maximum overrun very precise and thus behangschonend.

This text is machine translated.

Features

2 m connection cable
Thermal cut-off.
This text is machine translated.

Scope of delivery

Master Electronic tubular motor Mercato
Adapter/catches SW60
Motor
User manual.

Related products can be found here

Roller Shutter & Sun Blind Remote Controls Canopy & Shutter Drive Accessories Shutter & Canopy Drive Control Units

Description

The Master Electronic tubular motor Mercato can be very easily via justierschalter or can be set automatically. In addition to very quiet running properties, the motor, which can be activated obstacle detection, as well as an antifreeze protection. The electronic limit switch-off is with three degrees maximum overrun very precise and thus behangschonend.

This text is machine translated.

Features

2 m connection cable
Thermal cut-off.
This text is machine translated.

Scope of delivery

Master Electronic tubular motor Mercato
Adapter/catches SW60
Motor
User manual.
