Buy Chamberlain RPD15-05 Tubular motor 60 mm 30 kg 133 W 15 Nm

Packaging for a blue Chamberlain roller shutter motor. Includes illustrations and technical details on the packaging.

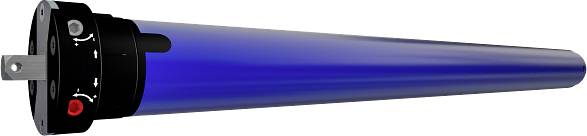

Electric tubular motor in blue with black and red details, perfect for automating roller shutters or awnings.

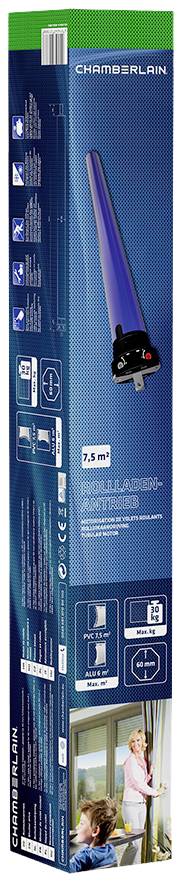

Packaging for a Chamberlain roller shutter motor, displaying product image, product specifications and application instructions in pictograms.

Two-storey modern detached house with light-coloured paintwork, large windows and a small garden. Clear sky in the background.

1/4

Fast track dispatch on Fri, 11 Sep

6 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 50.41 / piece)

€ 50.41

plus VAT.

Only 6 Piece(s) available

Report legal concerns

Highlights & Details

Tubular motor Chamberlain RPD15-05 15 Nm

Suitable for the installation of new buildings and for the modernization
Can be used for every conventional shutters
Incl. adapter, driver and journals

Technical specifications

End-switch range (U): 25 U
Max. Shutter surface (PVC): 7.5 m²
Max. Shutter surface (aluminum): 6 m²
Max. Shutter surface (wood): 3 m²
Maximum Operating Time: 4 min

Product type: Tubular motor

Suitable for shutter axle Ø: 60 mm

Motor power: 133 W

Dim: (Ø x H) 45 mm x 45 mm

Weight: 2.15 kg

Rotational speed: 15 U/min

Length: 512 mm

Tensile force (max.): 30 kg

Max. current consumption: 0.60 A

Operating voltage: 230 V

Width: 45 mm

Height: 45 mm

(Ø): 45 mm

Hub: Not required

Torque: 15 Nm

Lead length: 190 cm

Factory colour: Blue

Power consumption: 178 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1547054 Chamberlain RPD15-05 Tubular motor 60 mm 30 kg 133 W 15 Nm

Description

Shutter drive with a pulling force of 15 Nm suitable for octagonal shafts with a diameter of 60 mm. The Chamberlain shutter drive rpd 15 open shutters with an area of up to 7,5m² (PVC) with a maximum weight of 30 kg. For a relaxing installation are essential components such as Adapter, shaft and bearing pins pre-assembled. The setting of the end points can be easily and quickly with the help of the enclosed adjustment pin can be made. The adapter for the hexagonal shaft is included in the delivery.
