Kaiser Nienhaus Classic Mercato Master 130030 Tubular motor set 60 mm 30 Nm
EAN:
Part number:
Item no:
Number
Total (€ 96.63 / piece)
€ 96.63
plus VAT.
Only 8 Piece(s) available
Highlights & Details
Master Classic-Eco-Rohrmotor-Set
- Light-weight model
- Adjustable end-points
- Maintenance free motor
Technical specifications
- Shutter shaft 60mm Ø
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 600 mm
- Rotational speed
15 U/min
- Length
600 mm
- Max. current consumption
1 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
30 Nm
- Lead length
2 m
- Current consumption
220 W
- Type
Master
- Traction (max.) (details)
Up to 7.0m²
- Operating voltage
230 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646383 Kaiser Nienhaus Classic Mercato Master 130030 Tubular motor set 60 mm 30 Nm
Information
Information 646383 Kaiser Nienhaus Classic Mercato Master 130030 Tubular motor set 60 mm 30 Nm
Description
Fast and silently running motors with high reserves guarantees longer duration. Provided through 2 m connection power without any maintenance. The end points can be easily set via 2 spindles.
Features

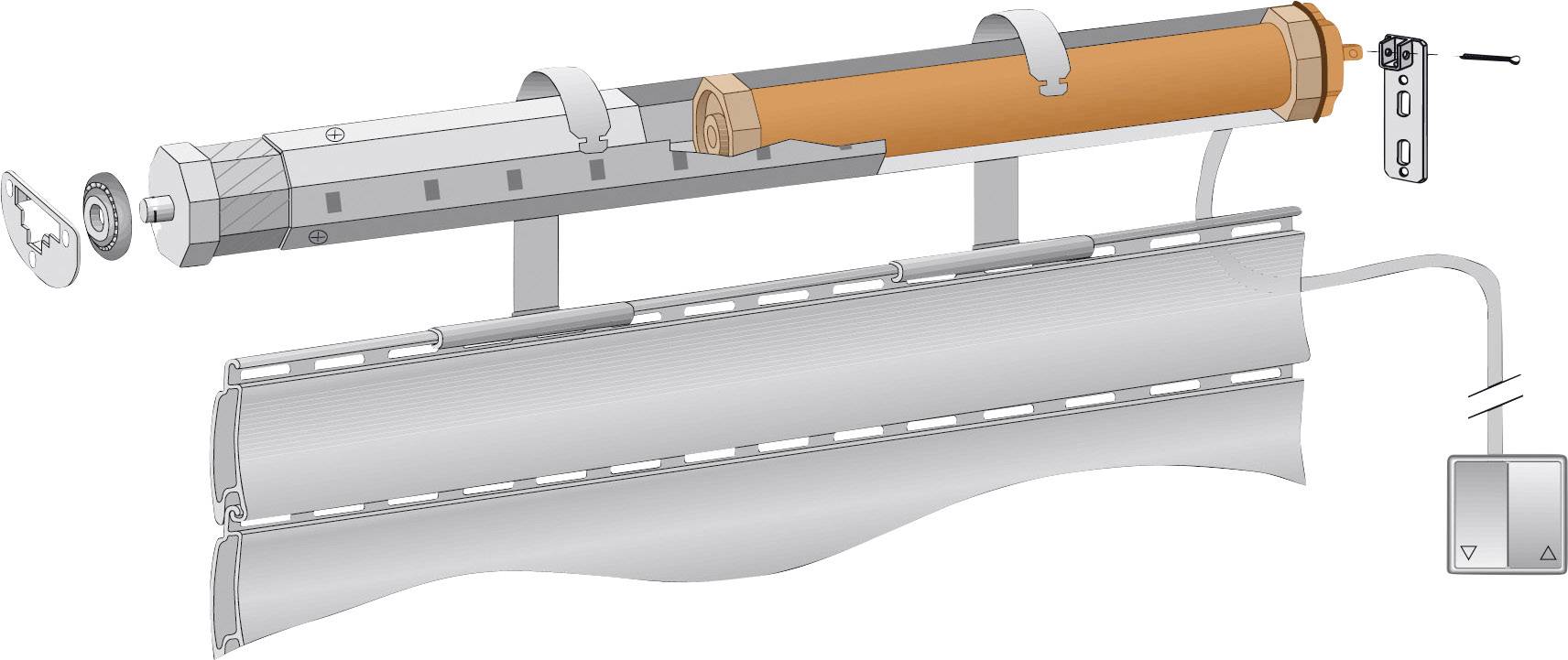

- Tubular motor with complete mounting accessories for shaft mounting.
Scope of delivery
- Motor
- Adapter
- Receiver for waves SW60
- Shaft capsule
- Motor
- Counter bearing
- Suspension springs
- Operating instructions.
