Kaiser Nienhaus Classic Mercato Favorit 130020 Tubular motor set 60 mm 20 Nm
EAN:
Part number:
Item no:
Number
Total (€ 73.94 / piece)
€ 73.94
plus VAT.
Highlights & Details
FAVORIT Classic-Eco-Set
- Simple assembly
- Adjustable end points
- Maintenance free motor
Technical specifications
- Shutter shaft 60mm Ø
- Product type
Tubular motor set
- Suitable for shutter axle Ø
60 mm
- Dim
(Ø x L) 45 mm x 520 mm
- Rotational speed
15 U/min
- Length
520 mm
- Max. current consumption
0.9 A
- Limit switched
mechanical
- Obstacle detection
No
- Operating voltage
230 V AC
- (Ø)
45 mm
- Hub
Not required
- Torque
20 Nm
- Lead length
2 m
- Current consumption
215 W
- Type
FAVORIT

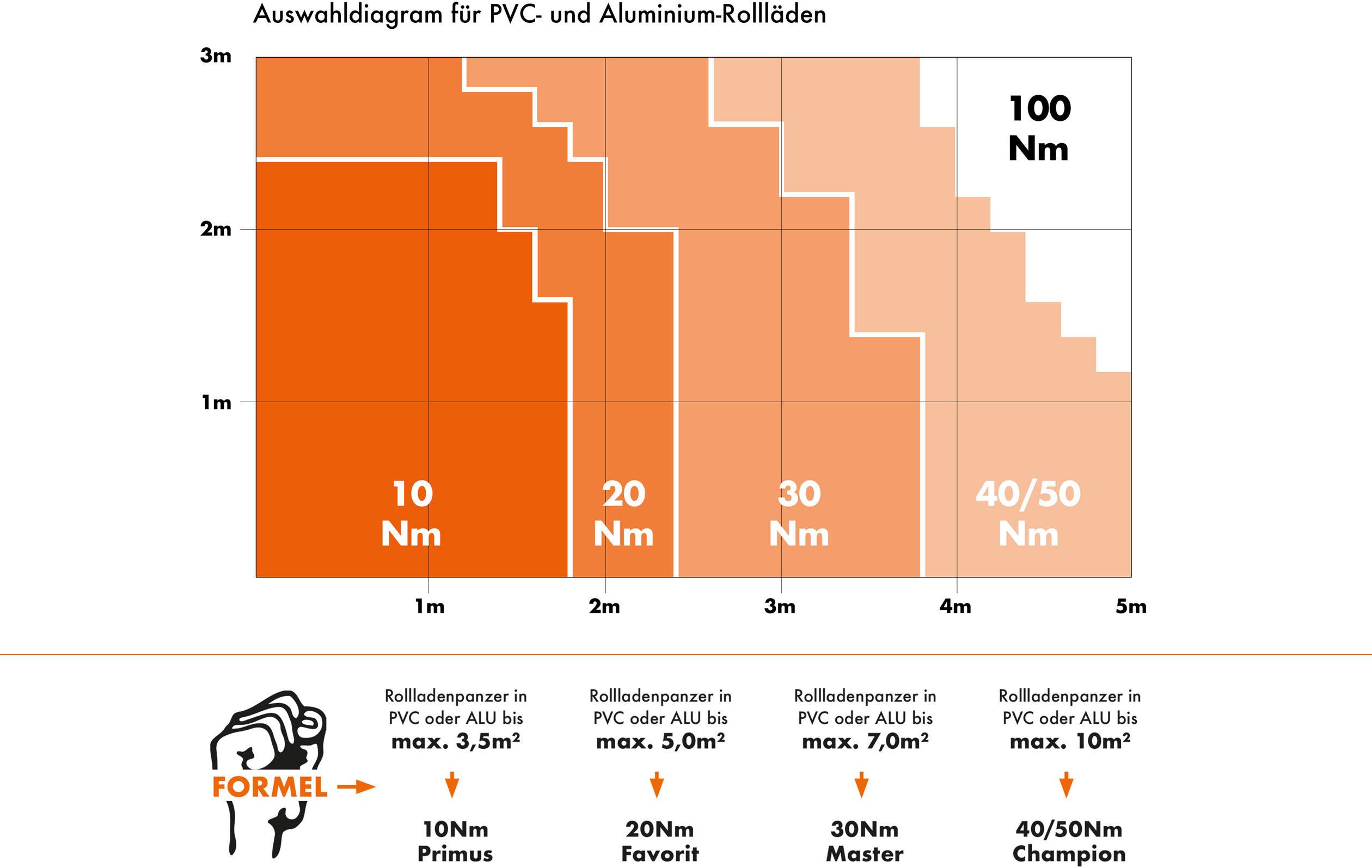

- Traction (max.) (details)
Up to 5.0m²
- Operating voltage
230 V AC
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 646420 Kaiser Nienhaus Classic Mercato Favorit 130020 Tubular motor set 60 mm 20 Nm
Information
Information 646420 Kaiser Nienhaus Classic Mercato Favorit 130020 Tubular motor set 60 mm 20 Nm
Description
Quiet and fast-running motors with high reserves, which ensure a very long life. They are maintenance free and have a 2m loop . The endpoints can be easily set on 2 spindles.
Features

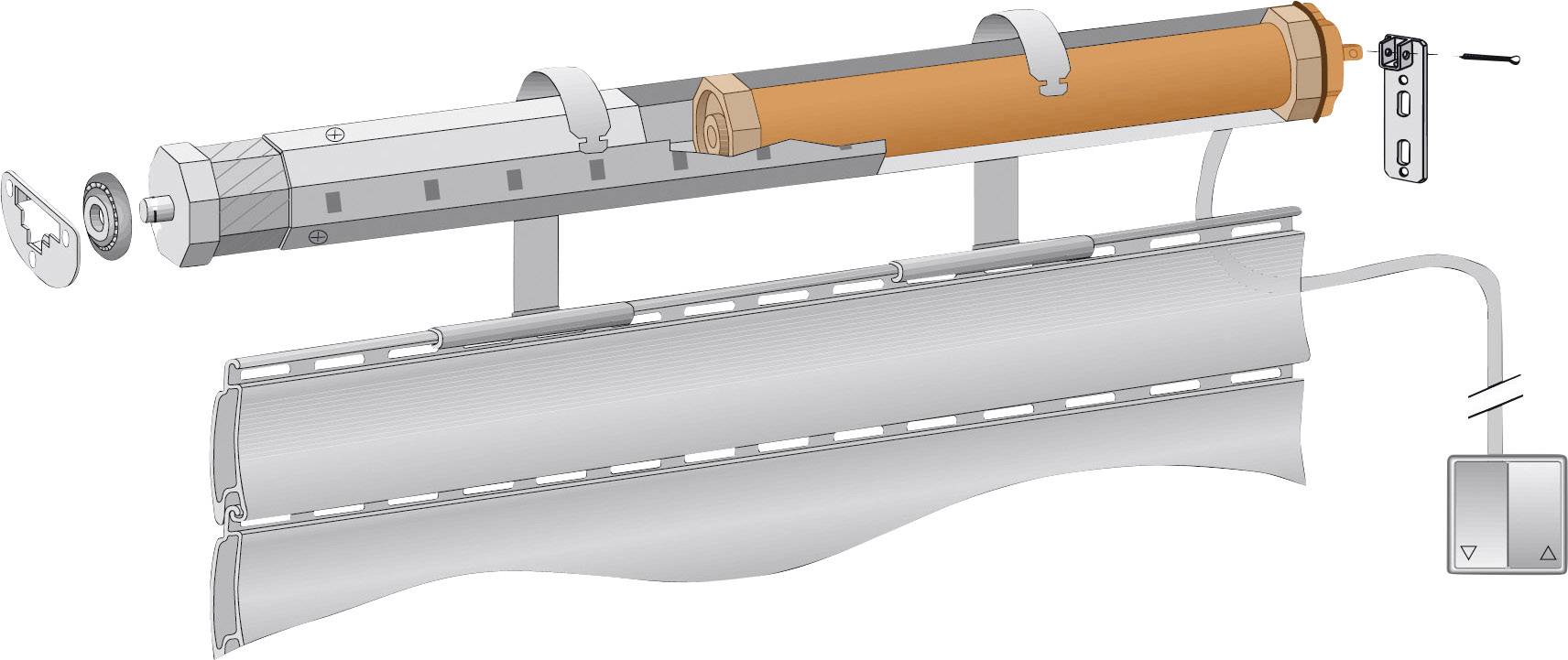

- Tubular motor with complete mounting accessories for shaft mounting.
Scope of delivery
- Motor
- Adapter
- Receiver for waves SW60
- Shaft capsule
- Motor
- Counter bearing
- Suspension springs
- Operating instructions.
