Buy Chamberlain RPD10-05 Tubular motor 40 mm 20 kg 121 W 10 Nm

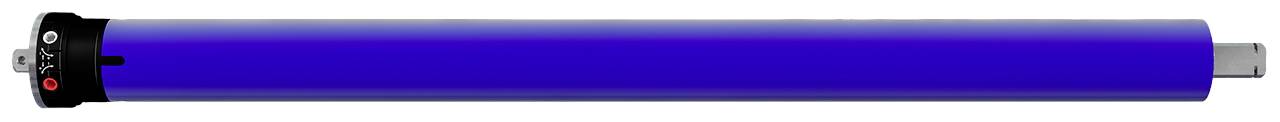

Electronic tube motor in blue with a black end cap and metal shaft. Plug connectors are present at both ends.

Packaging of a roller shutter motor by Chamberlain, suitable for roller blinds up to 5 m². Image shows installation steps and technical details.

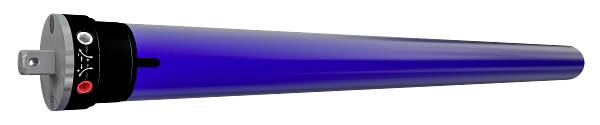

A blue, cylindrical tube motor with a black end cap, suitable for roller shutter systems and blinds.

A modern two-storey detached house with a yellow façade and large windows, surrounded by a well-maintained garden on a sunny day.

1/5

Fast track dispatch on Fri, 11 Sep

8 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 52.09 / piece)

€ 52.09

plus VAT.

Only 8 Piece(s) available

Report legal concerns

Highlights & Details

Tubular motor Chamberlain RPD10-05 10 Nm

Suitable for the installation of new buildings and for the modernization
Can be used for every conventional shutters
Incl. adapter, driver and journals

Technical specifications

End-switch range (U): 39 U
Max. Shutter surface (PVC): 5 m²
Max. Shutter surface (aluminum): 4 m²
Max. Shutter surface (wood): 2 m²

Product type: Tubular motor

Suitable for shutter axle Ø: 40 mm

Motor power: 121 W

Dim: (Ø x H) 35 mm x 35 mm

Weight: 1.60 kg

Rotational speed: 17 U/min

Length: 512 mm

Tensile force (max.): 20 kg

Max. current consumption: 0.53 A

Operating voltage: 230 V

Width: 35 mm

Height: 35 mm

(Ø): 35 mm

Hub: Not required

Torque: 10 Nm

Lead length: 190 cm

Factory colour: Blue

Power consumption: 165 W

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1547053 Chamberlain RPD10-05 Tubular motor 40 mm 20 kg 121 W 10 Nm

Description

Shutter drive with a pulling force of 10 Nm suitable for octagonal shafts with a diameter of 40 mm. The Chamberlain shutter drive rpd 10 open shutters with an area of up to 5 m² (PVC) with a maximum weight of 20 kg. For a relaxing installation are essential components such as Adapter, shaft and bearing pins pre-assembled. The setting of the end points can be easily and quickly with the help of the enclosed adjustment pin can be made. The adapter for the hexagonal shaft is included in the delivery.
