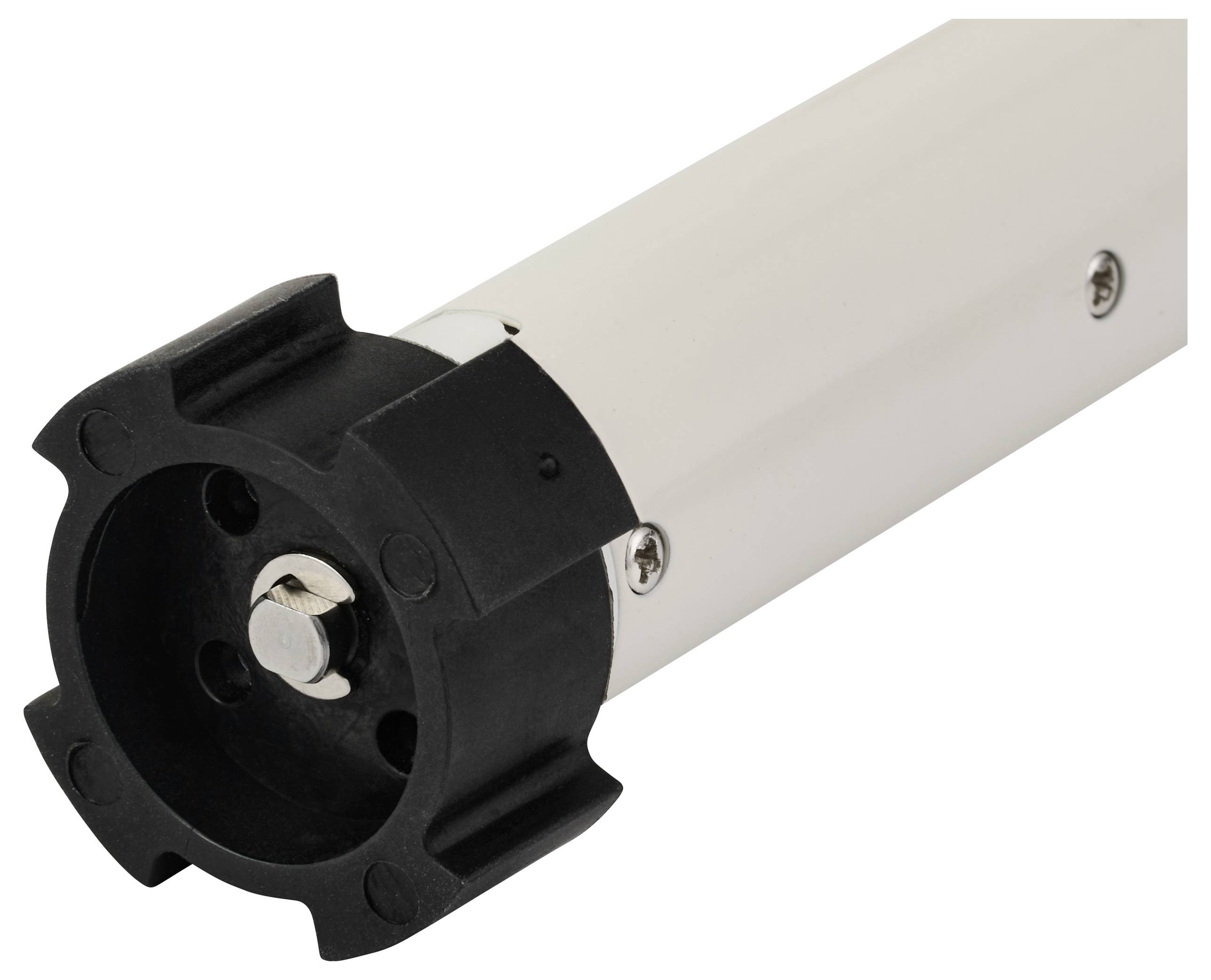

Sygonix SY-6872860 Tubular motor set 40 mm 3 kg 10 W 0.8 Nm
EAN:
Part number:
Item no:
Number
Total (€ 16.80 / piece)
€ 16.80
plus VAT.
14-day return policy included
Highlights & Details

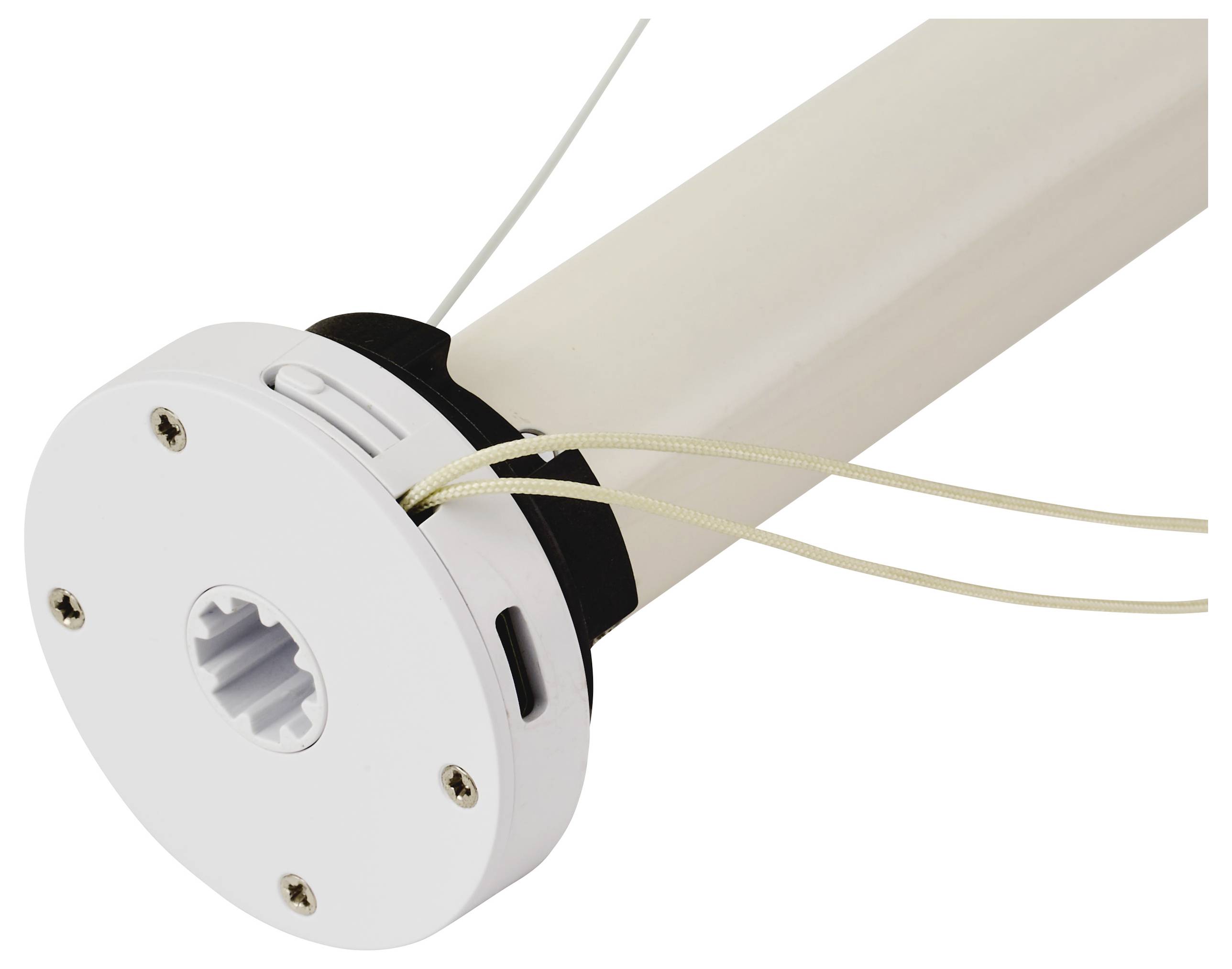

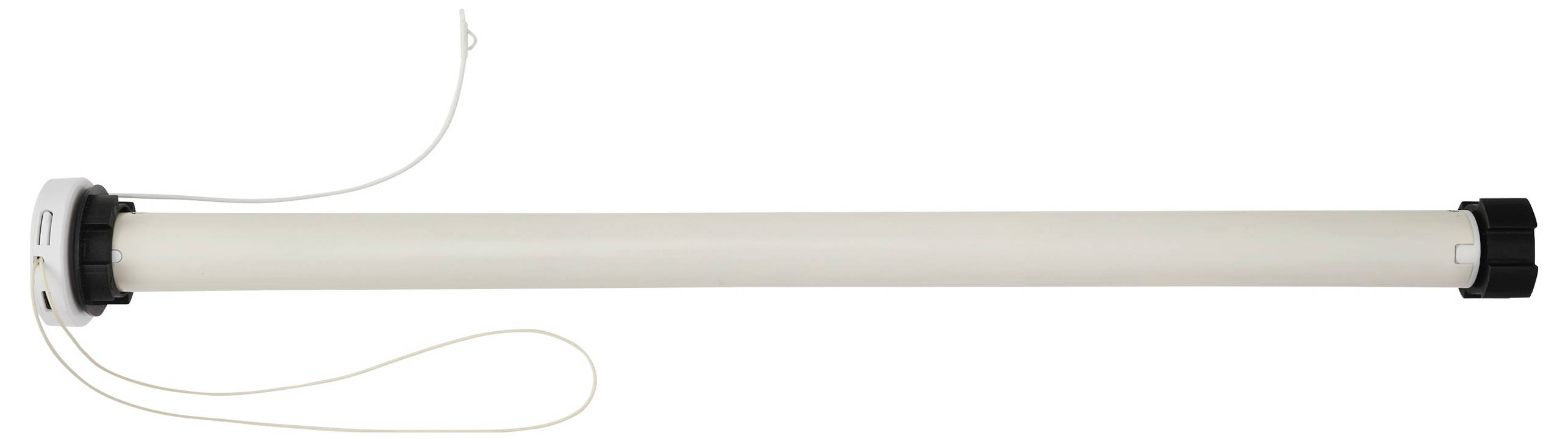

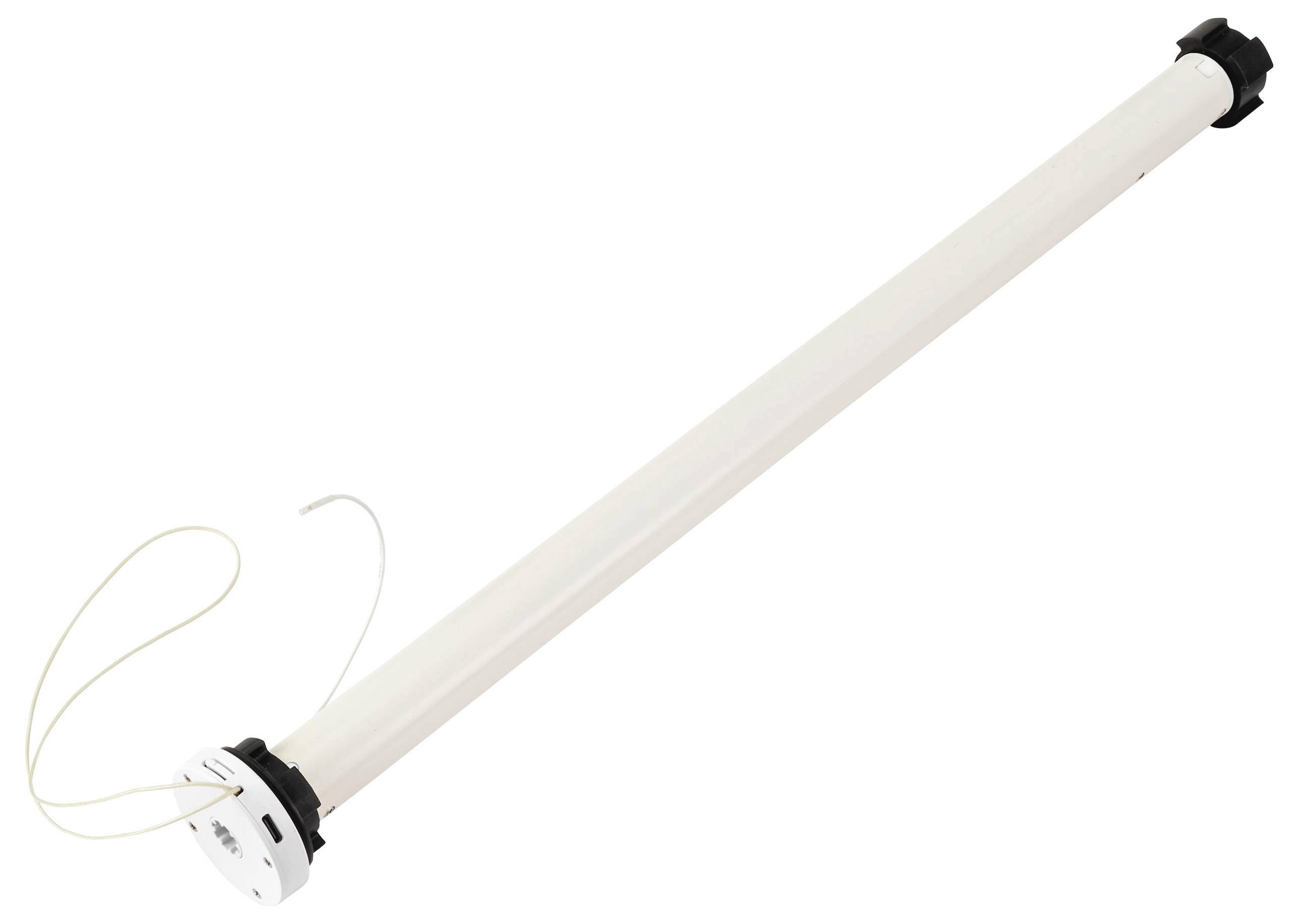

Tubular motor set Sygonix SY-6872860 0.8 Nm

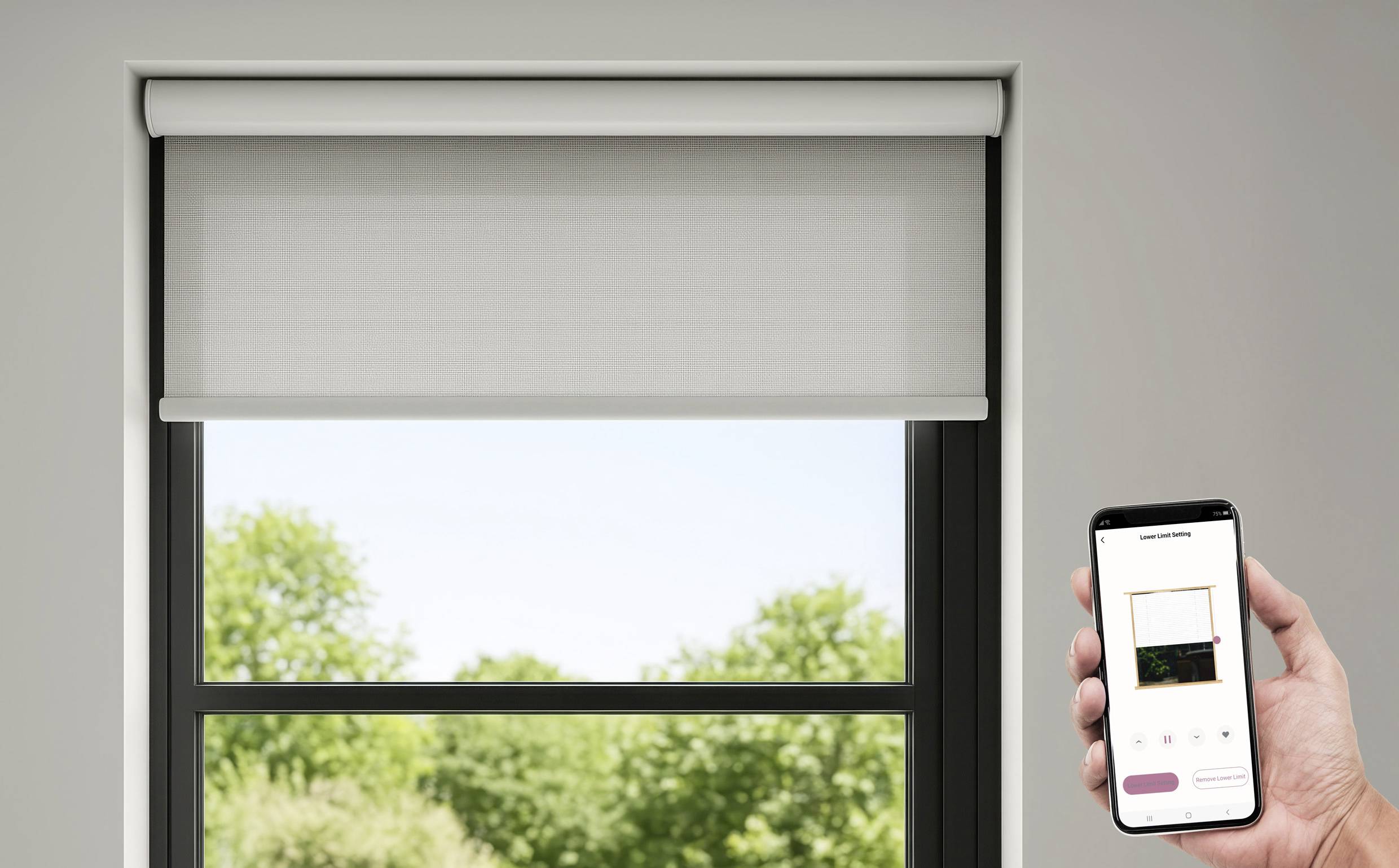

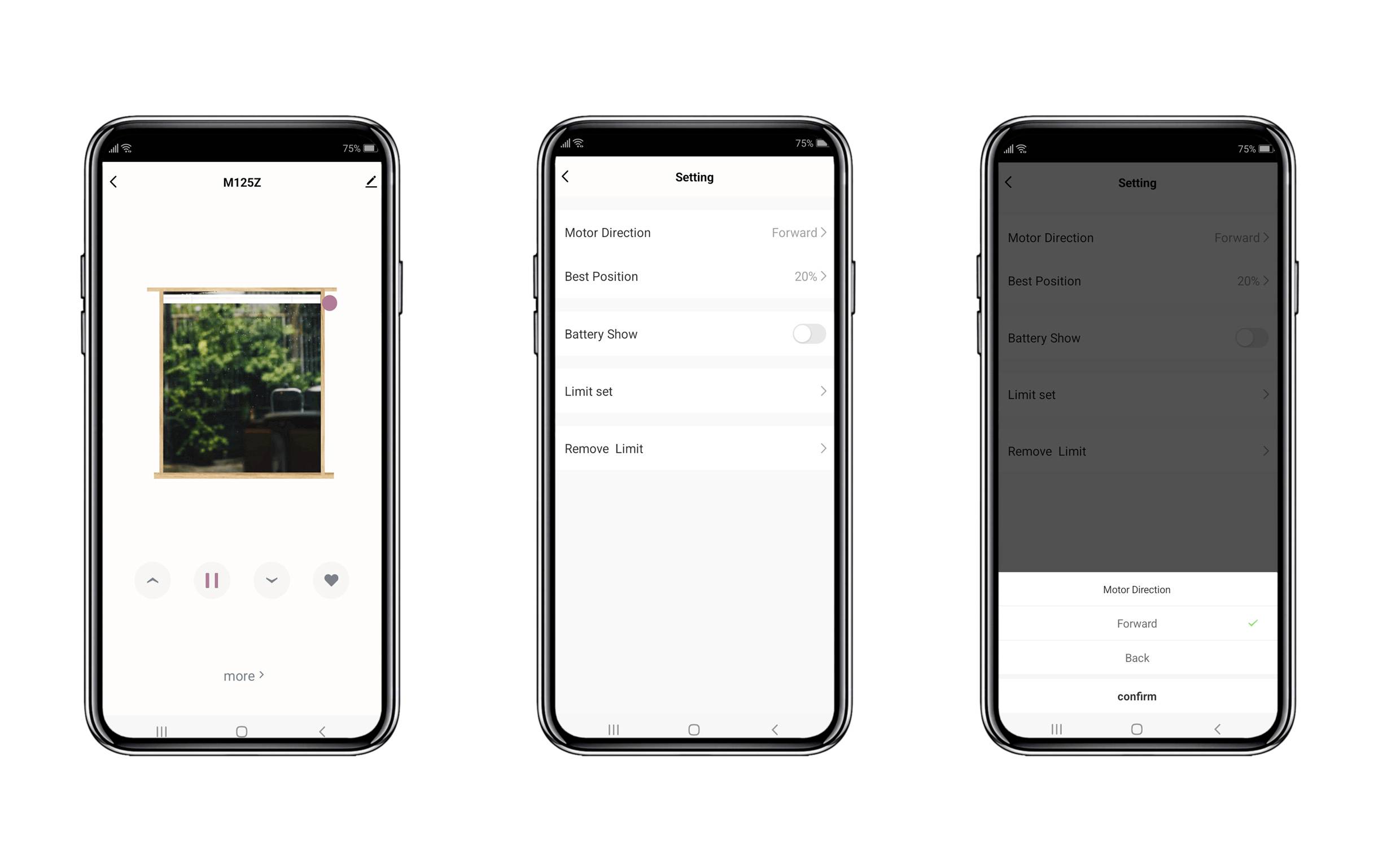

- Controlled by TUYA APP through ZigBee gateway or remote control
- Replaces traditional motor to link roller blind to TUYA smart home system

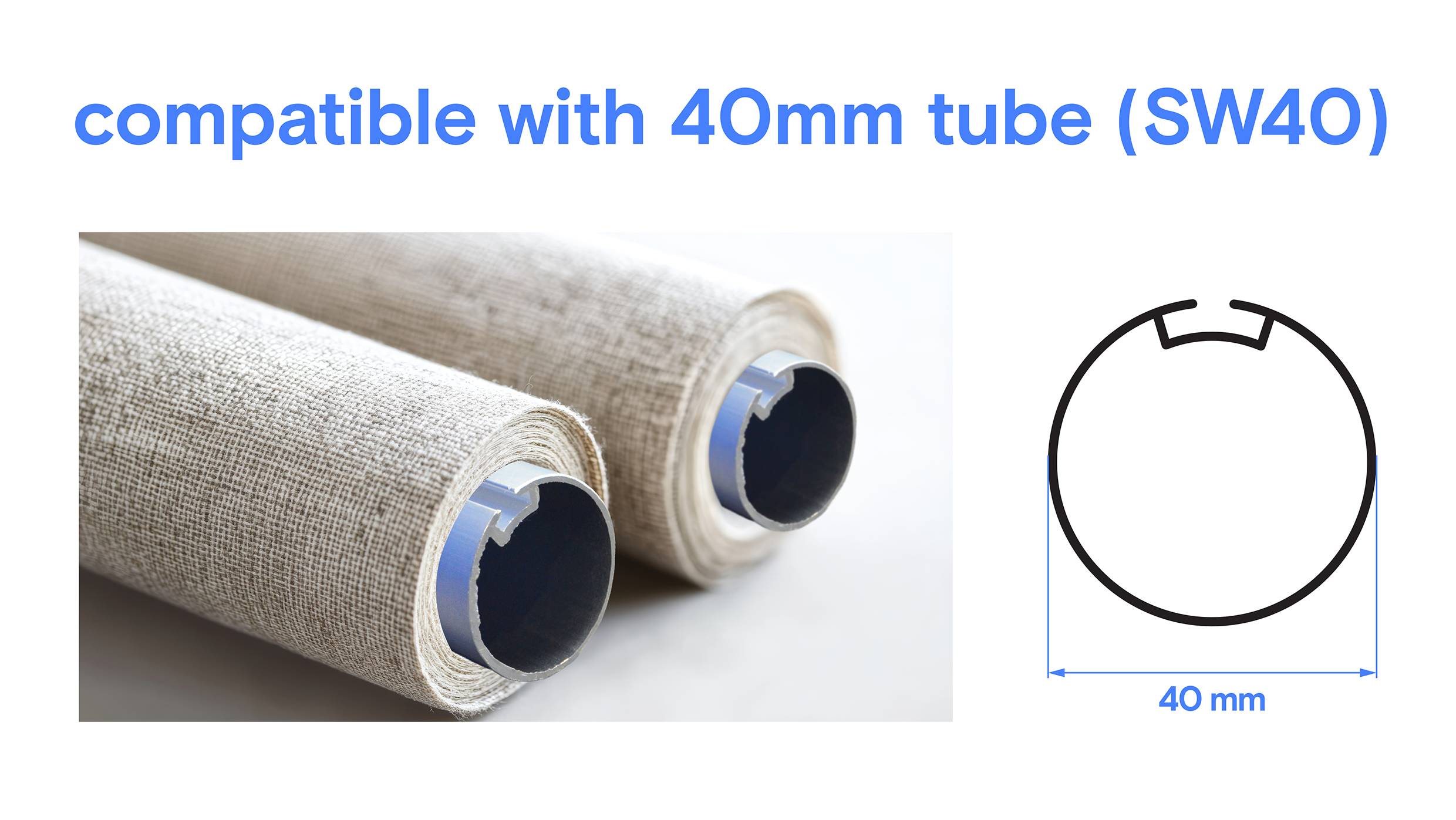

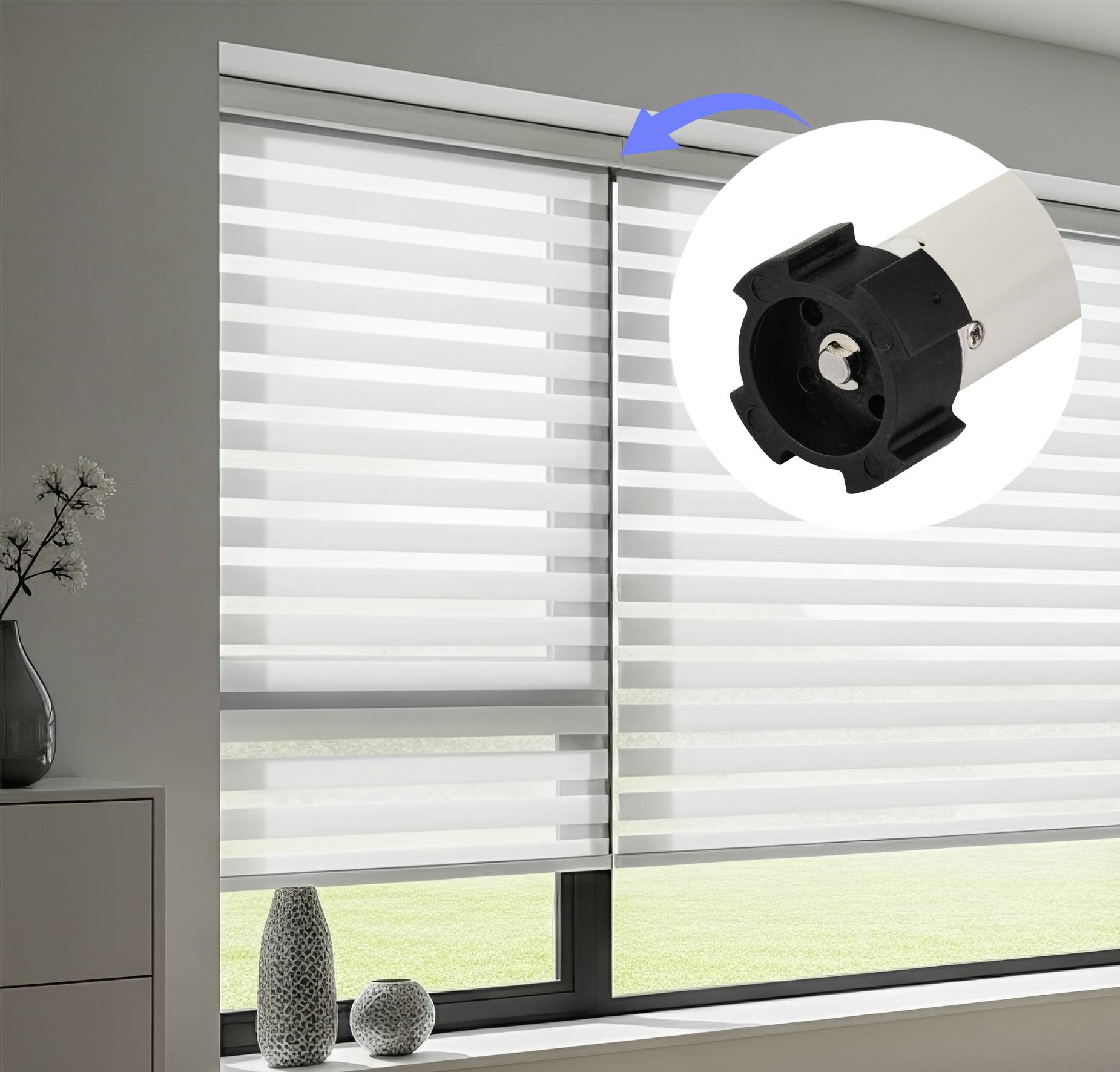

- Suitable for 38-40 mm (SW40) diameter tube with different styles of roller blinds, e.g. zebra blinds
Technical specifications
- Product type
Tubular motor set
- Suitable for shutter axle Ø
40 mm
- Motor power
10 W
- Dim
(Ø x L) 47 mm x 469 mm
- Weight
430 g
- Rotational speed
2.3 m/s
- Length
469 mm
- Tensile force (max.)
3 kg
- Max. current consumption
1 A
- Operating voltage
5 V DC
- Width
469 mm
- (Ø)
47 mm
- Hub
Not required, optional for remote access
Alexa
Google Home
Tuya
Zigbee
- Torque
0.8 Nm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3436430 Sygonix SY-6872860 Tubular motor set 40 mm 3 kg 10 W 0.8 Nm
Warranty Terms
Warranty Terms 3436430 Sygonix SY-6872860 Tubular motor set 40 mm 3 kg 10 W 0.8 Nm
Description
Features
- Built-in Li-Ion battery
- Includes remote control
- 1 remote control can control up to 8 tubular motors
- 1 tubular motor can synchronize and control up to 7 remote controllers

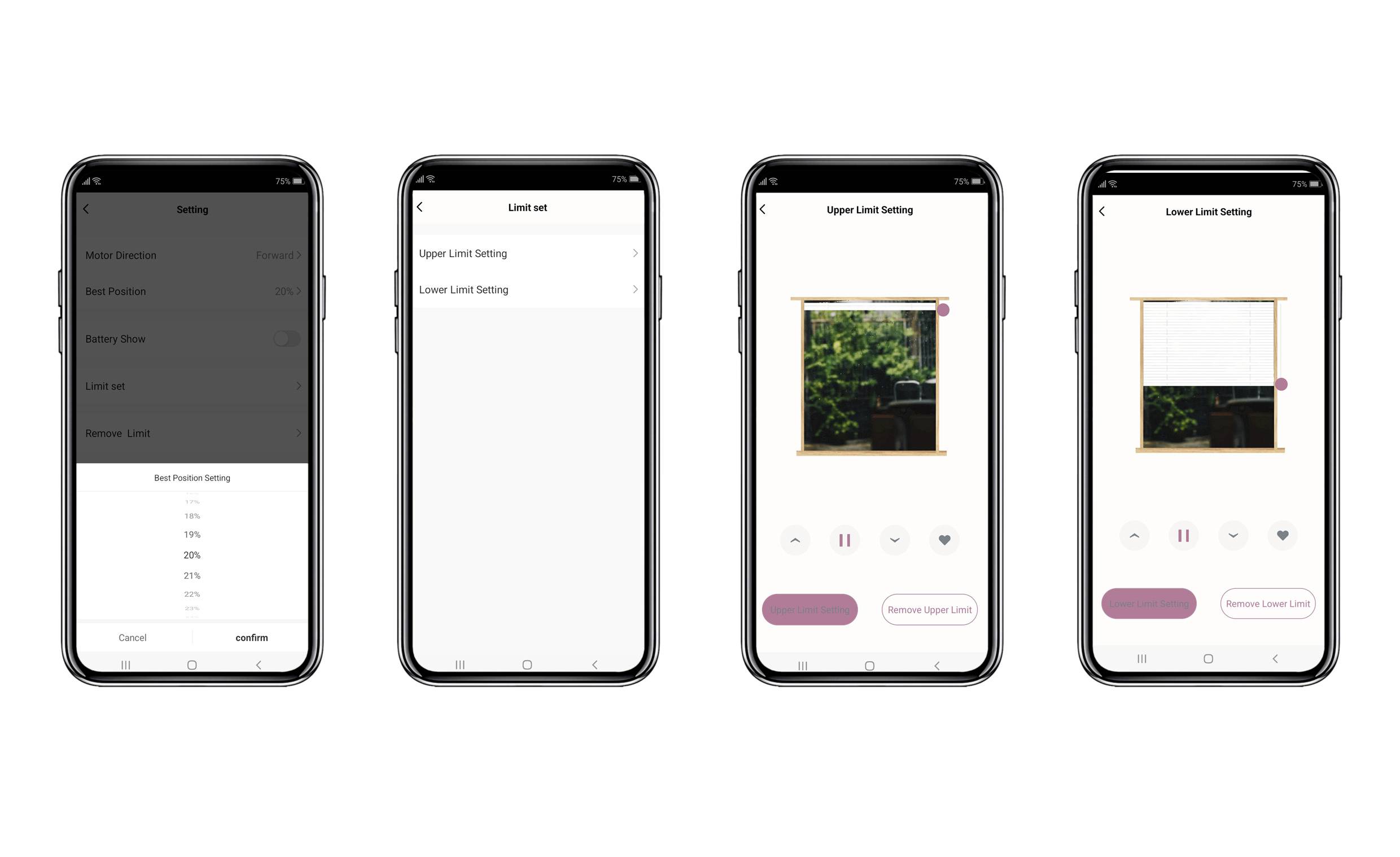

- Adjustable upper and lower limits for opening or closing the roller blind
- Replaces traditional motor to link roller blind to Tuya smart home system
- Works with Sygonix SY-6052182 TUYA Wi-Fi, ZigBee & Bluetooth® Gateway or other TUYA ZigBee Gateway
- Supports Amazon Alexa and Google Home
- Maximium loading weight of approx. 3 kgs

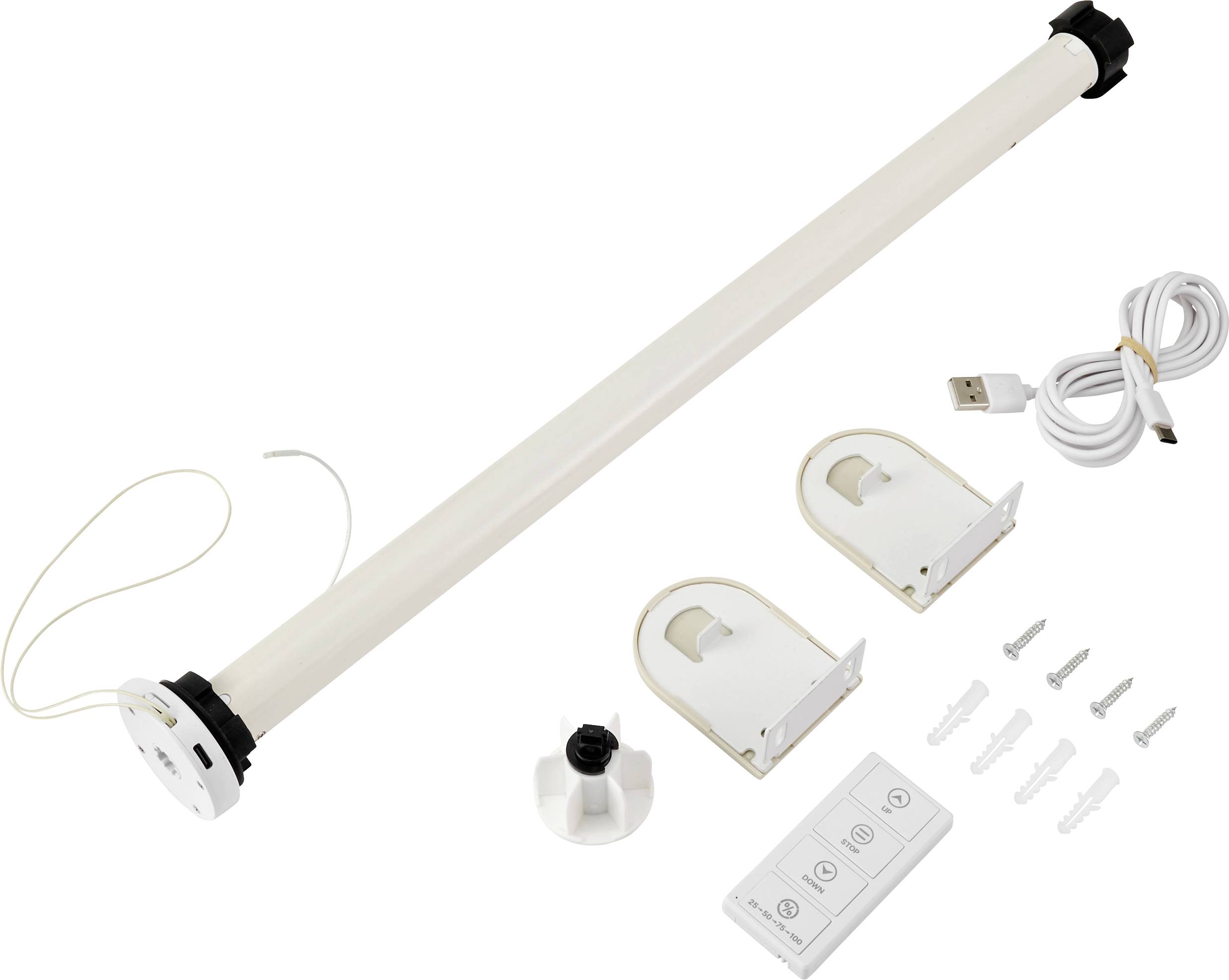

Scope of delivery
- 1x Tubular motor
- 1x Remote control
- 1x USB-C® Cable
- 2x Mounting blanket
- 1x Roller clutch (end plug)
- 4x Screws and dowels
