Buy Superrollo Professional SR10250 GW250 Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

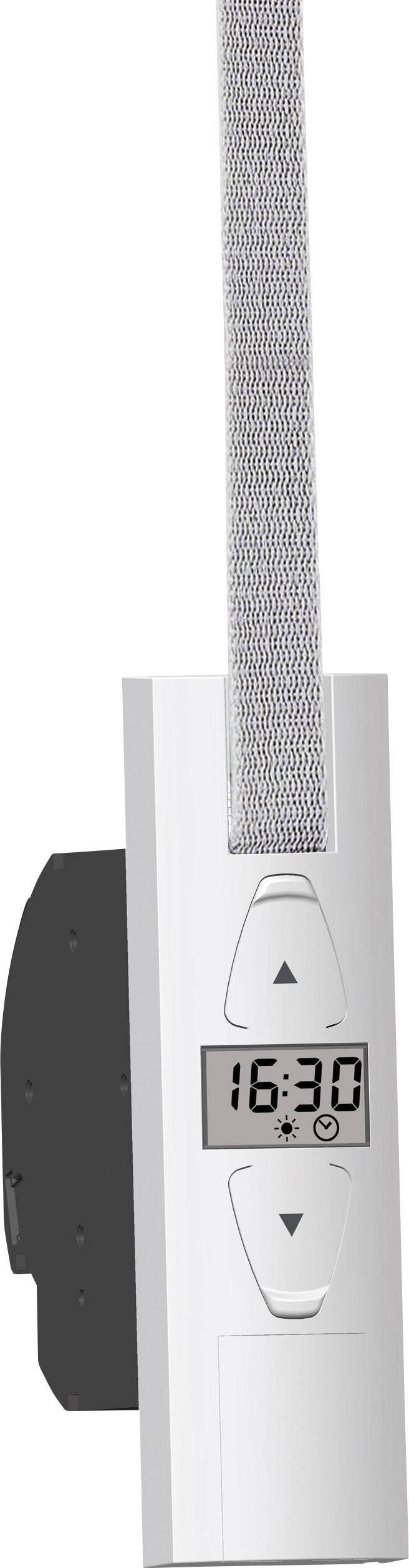

Electronic control with digital display shows '16:30'. Two arrow buttons above and below regulate the function.

Electronic roller shutter timer with display, showing '16:30', two arrow buttons for manual control, grey roller blind tape on top.

1/2

Fast track dispatch on Fri, 11 Sep

11 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 126.04 / piece)

€ 126.04

plus VAT.

Report legal concerns

Highlights & Details

Superrollo Professional Electric belt winder GW250 23 mm

Suitable for blinds up to 6 m² (45 kg)
Fits into all common winder boxes
Drive and control in one device including LCD display

Technical specifications

II protection rating
Winding capacity: 7.6 m at 1 mm belt strength 6.2 m at a belt strength of 1.3 mm
Maximum curtain size: 6 m² (PVC blinds), 3 m² (aluminium/wooden shutters)

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 10 Nm

Mounting type: Flush mount

Nominal power: 70 W

Operating voltage: 230 V

Factory colour: White

Hub: Not required

Tensile force (max.): 45 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1416529 Superrollo Professional SR10250 GW250 Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Description

Simple handling with proven quality!

Integrated LCD-display for time and program display directly at the belt winder.

Meets the "most important "Product Characteristics for demanding craftsman. The products are to be understood as optimal single solution. Easy installation in only 10 minutes. The products are to be understood as optimal single solution and are ideal for quick retrofitting (flush-mounted).

The products of super-Rollo enable it to anyone, shutters, gates and sun protection in a fast and simple way to automate.
