Buy Superrollo Professional SR10255 GW255 Electric belt winder Tensile force (max.) 60 kg Flush mount

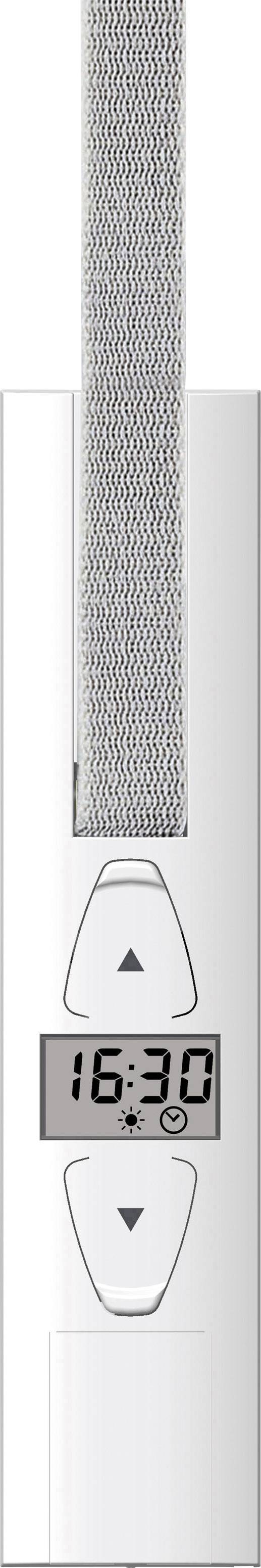

Electronic roller shutter drive with clock display '16:30', two arrow buttons for control, and a strap band on the side.

Electronic awning control with integrated time display '16:30'. Two arrow buttons for adjustment, up and down. Control is white.

1/2

Fast track dispatch on Fri, 11 Sep

9 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 151.25 / piece)

€ 151.25

plus VAT.

Only 9 Piece(s) available

Report legal concerns

Highlights & Details

Superrollo Professional Electric belt winder GW255

Strong: Higher tractive power for shutters up to 10 m² (60 kg)
Convenient LCD for setting times and operating mode.
Special: Device for large belt boxes
Convenient - drive and control in one device.
Simple: Installation in only approx. 10 minutes - ideal for quick retrofitting (flush-mounted)

Technical specifications

Power consumption: Standby<: 0.5 W.
Maximum speed 24 rpm
Short-term operation (KB): 4 minutes (maximum runtime)
Protection class: II
Protection class: IP20 (only for dry rooms)
Number of switching times: 4 (up and down)
Setting ranges: Automatic sunlight 2000 to 20,000 lux; automatic dusk 2 to 50 lux
Mains connection cable 2 x 0.75 mm2 (H03VVH2-F)
Permissible ambient temperature: 0 °C to +40 °C.

Product type: Electric belt winder

Nominal torque: 14 Nm

Mounting type: Flush mount

Nominal power: 70 W

Operating voltage: 230 V

Hub: Not required

Use: Lighting and appliance control

Tensile force (max.): 60 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1947482 Superrollo Professional SR10255 GW255 Electric belt winder Tensile force (max.) 60 kg Flush mount

Description

The superrollo GW255 (23mm belt strap) is an electric roller shutter belt winder for indoor use. The installation takes place as flush-mounted device. The power is supplied via the enclosed connection cable with mains plug and small device plug. (Without additional power supply)

This text is machine translated.

Features

Start-up assistant
Manual operation
Automatic mode on/off
four switching times, one switching time
ON and OFF each for: Monday to Friday, Saturday and Sunday
Automatic sun protection (with light sensor SR70030) optional (not included in delivery)
Automatic dusk detection (with light sensor SR70030) optional (not included in delivery
Automatic summer/winter time changeover
End point setting
permanent storage of the settings
Obstacle detection
Overload protection
Reset
