Name: Superrollo Professional SR10245 GW245 Electric belt winder 15 mm Tensile force (max.) 30 kg Surface-mount
Brand: Superrollo Professional
SKU: 1947481
Availability: BackOrder

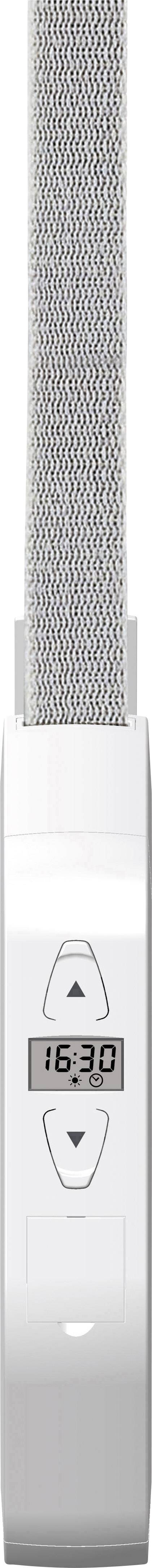

A white, wall-mounted, electric roller shutter control unit with a digital display shows '16:30'. Buttons for up and down movement.

Electric roller blind control with digital time display '16:30', two arrow buttons for manual operation.

1/2

Dispatches on Tue 27 Oct

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 169.99 / piece)

€ 169.99

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Superrollo Professional Electric belt winder GW245 15 mm

Strong: For shutters up to 5 m² (30 kg)
Compact: Ideal for confined spaces
Convenient LCD for setting times and operating mode.
Convenient - drive and control in one device.
Simple: Installation in only 10 minutes - ideal for quick retrofitting

Technical specifications

Power consumption: Standby<: 0.5 W.
Maximum speed 36 rpm
End tensile force 13 kg
Short-term operation (KB): 4 minutes (maximum runtime)
Protection class: II
Protection class IP20 (only for dry rooms)
Setting ranges: Automatic sun 2000 to 20,000 lux; automatic twilight 2 to 5 lux
Number of switching times: 4 (up and down)
Mains connection cable 2 x 0.75 mm2 (H03VVH2-F)
Permissible ambient temperature: 0 °C to +40 °C.

Product type: Electric belt winder

Belt width: 15 mm

Nominal torque: 8 Nm

Mounting type: Surface-mount

Nominal power: 70 W

Operating voltage: 230 V

Hub: Not required

Use: Lighting and appliance control

Tensile force (max.): 30 kg

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 1947481 Superrollo Professional SR10245 GW245 Electric belt winder 15 mm Tensile force (max.) 30 kg Surface-mount

Description

The superrollo GW245 (15 mm belt) is an electric roller shutter swivel belt winder for indoor use. It is mounted as a surface-mounted device. The power is supplied via the enclosed connection cable with mains plug and small device plug. (Without additional power supply)

This text is machine translated.

Features

Commissioning Wizard
Manual operation
Automatic mode on/off
four switching times, one switching time
ON and OFF for each: Monday to Friday, Saturday and Sunday
Automatic sun protection (with light sensor SR70030) optional (not included in delivery)
Automatic dusk detection (with light sensor SR70030) optional (not included in delivery
Automatic summer/winter time - switchover
End point setting
permanent storage of the settings
Obstacle detection
Overload protection
Reset to the factory settings (reset)

Scope of delivery

Superrollo GW245
Wall bracket
Mounting screws and plugs
Release clip
Connection cable with Euro plug
Winding wheel cover
Cover panel
User manual.
