Buy HOMEPILOT 10132345 RolloTron classic Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

A white electric device for operating blinds with a display and buttons for control.

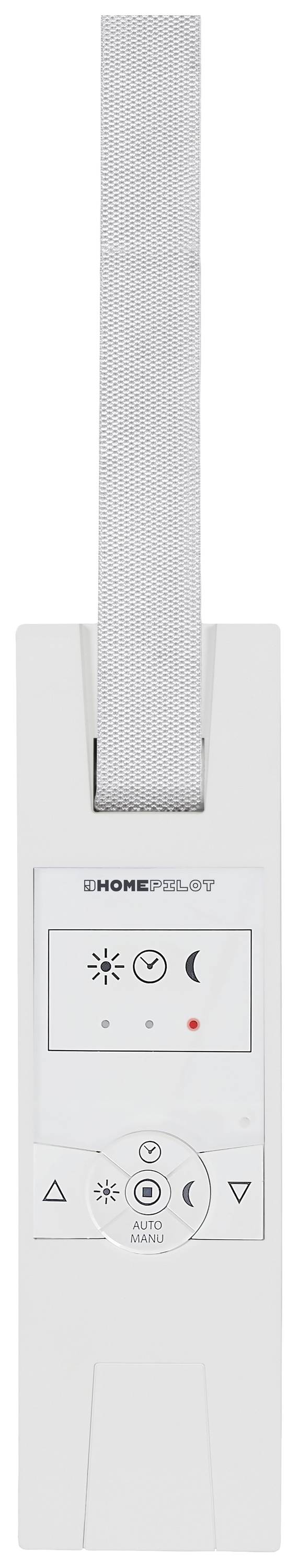

Remote control for a roller shutter system with buttons for Up, Down and Stop, along with sun and moon symbols. A strap is attached at the top.

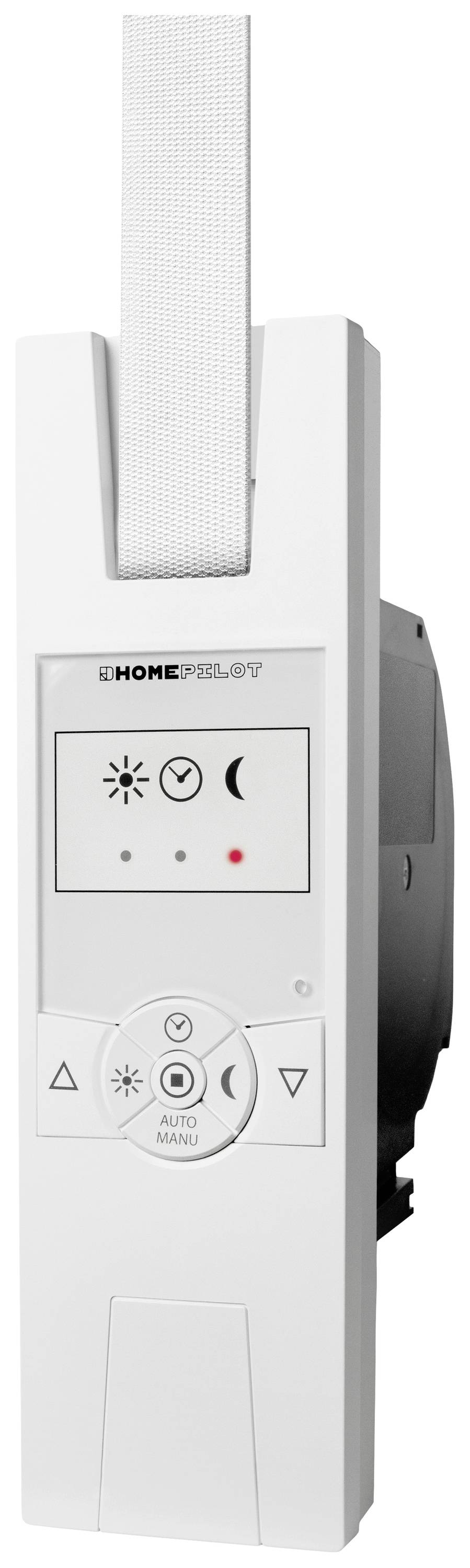

Electric seat belt winder device with control buttons and display. Symbol for sunshine, moon, operating buttons for automatic and manual modes.

1/3

Fast track dispatch on Fri, 11 Sep

7 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 134.45 / piece)

€ 134.45

plus VAT.

Only 7 Piece(s) available

Report legal concerns

Highlights & Details

HOMEPILOT Electric belt winder RolloTron classic 23 mm

Drive and control in one device.Memory functionDisplay with illuminated symbol-LEDsMax. Traction output 45 kgFor a belt width of 23 mm

Technical specifications

Delayed travel 0.4 UMax. Switching times 2Connection cable: Cable length 1.5 m.Operation at: +0°C to +40°C.Belt length max. 7.6 m.

Product type: Electric belt winder

Belt width: 23 mm

Nominal torque: 10 Nm

Weight: 1006 g

Mounting type: Flush mount

Nominal power: 70

Operating voltage: 230 V

Aperture size: 60 x 211 x 27 mm

Factory colour: Ultra white

Assembly dimensions: 35 x 139 x 132 mm

Dim: (W x H x D) 60 x 211 x 166 mm

Hub: Not required

Belt length: 7.6 m

Width: 60 mm

Height: 211 mm

Depth: 166 mm

Tensile force (max.): 45 kg

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2827214 HOMEPILOT 10132345 RolloTron classic Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Warranty Terms

Warranty Terms 2827214 HOMEPILOT 10132345 RolloTron classic Electric belt winder 23 mm Tensile force (max.) 45 kg Flush mount

Description

The RolloTron classic belt winder is perfect for controlling your shutters at the push of a button. The belt winder is specially designed for flush-mounting and is universally applicable.The blind winder RolloTron classic Smart appears in a modern design. The intuitive display with illuminated symbol LEDs makes controlling the roller shutter belt winder child's play.Equipped with a memory function, it repeats the opening and closing times in a 24-hour cycle – so you can operate your shutters automatically in the morning and evening. Pretty comfortable!In addition, the electric belt winder fits in all common winder boxes from a width of 36 mm and can be easily connected to the 230 V power supply via a Euro connector. The soft-start and soft-stop function enables a smooth run with Hohem comfort.You can control the dependent upon the sun via our solar sensor.

This text is machine translated.
